Overview

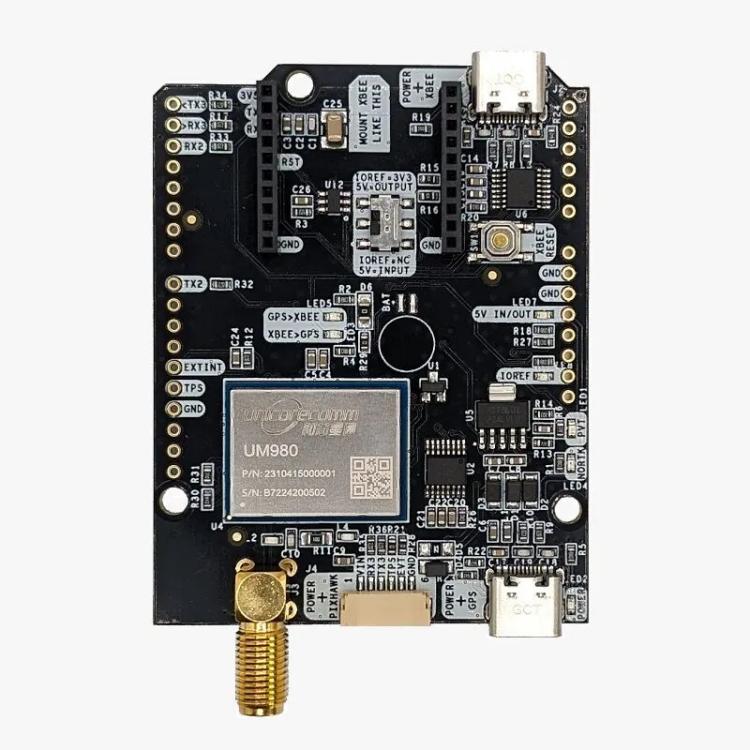

The TOXU TX-UM980-RTK01 RTK GNSS Receiver Board is based on the Unicore UM980 multi-frequency GNSS chipset, providing reliable positioning performance for professional navigation and industrial applications.

The Unicore UM980 supports triple-band GNSS signals including L1, L2 and L5, with multi-constellation tracking capability covering GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC and SBAS.

Designed with RTK Base and Rover modes, USB/UART communication interfaces and XBee expansion capability, the TX-UM980-RTK01 can be integrated into UAVs, robotics platforms, surveying equipment and autonomous systems.

Key Features

Unicore UM980 GNSS Chipset

Integrated with the Unicore UM980 multi-frequency GNSS chipset for high-performance positioning applications.

Triple Band L1/L2/L5 GNSS

Supports triple-band GNSS frequency signals for enhanced satellite tracking and stable positioning performance.

RTK Base and Rover Modes

Supports RTK correction applications with centimeter-level positioning capability.

Multi-Constellation Support

Supports GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC and SBAS satellite systems.

High Update Rate

Supports update rates up to 50 Hz for dynamic positioning applications.

Embedded Integration Design

Provides USB, UART and XBee expansion interfaces for integration with embedded controllers and development platforms.

Technical Specifications

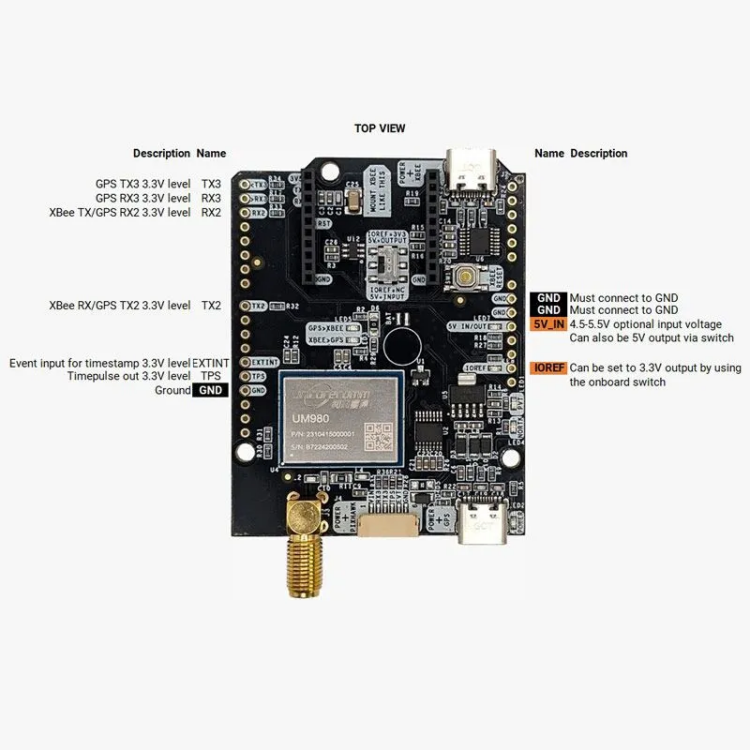

Hardware Interface

The TX-UM980-RTK01 provides flexible interfaces for integration with UAV controllers, embedded computers and industrial positioning systems.

• USB Interface

• UART Interface

• XBee Expansion Interface

• GNSS Antenna Connector

• Timepulse Output

• Event Input

Applications

• UAV Navigation Systems

• Robotics Platforms

• Surveying Equipment

• Precision Agriculture Systems

• Autonomous Navigation Systems

System Integration

The TX-UM980-RTK01 can be integrated with flight controllers, embedded computers and industrial control systems through standard communication interfaces.

GNSS Antenna → Unicore UM980 RTK GNSS Board → Controller / Computer → Navigation System

Why Choose TOXU

• GNSS hardware development and integration capability

• RF antenna and positioning solution experience

• IATF16949 & ISO9001 certified manufacturing

• OEM/ODM customization support

• Prototype development to mass production

FAQ

Q1: What GNSS chipset is used in this board?

A1: The TX-UM980-RTK01 integrates the Unicore UM980 GNSS chipset.

Q2: Which GNSS frequency bands are supported?

A2: It supports L1, L2 and L5 triple-band GNSS signals.

Q3: Does this board support RTK Base and Rover modes?

A3: Yes, it supports both RTK Base and Rover applications.

Q4: What applications can use this GNSS receiver board?

A4: It is suitable for UAVs, robotics, surveying and precision agriculture applications.
