Overview

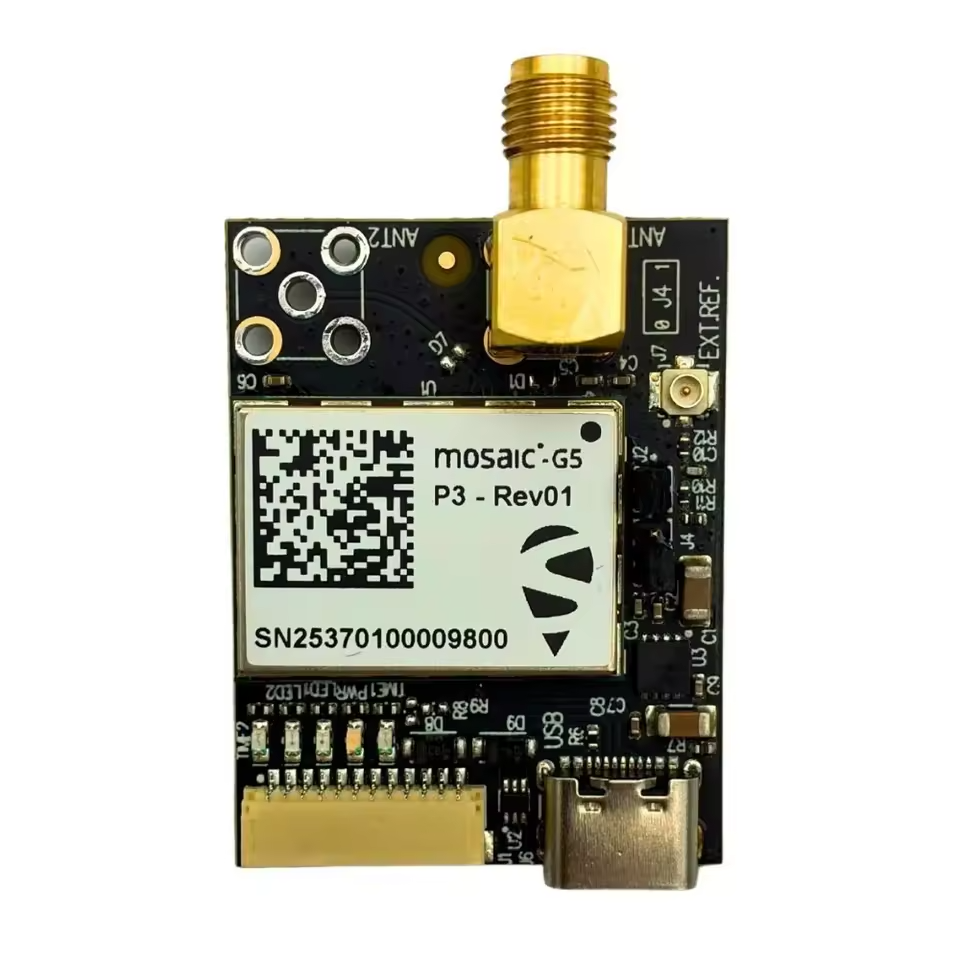

The TOXU TX-G5RB01 RTK GNSS Receiver Board is a high-performance positioning solution based on the Septentrio mosaic-G5 GNSS module.

The receiver board supports multi-frequency and multi-constellation GNSS tracking, providing stable RTK positioning performance with fast signal acquisition and reliable navigation capability.

Designed for professional positioning applications, the TX-G5RB01 is suitable for UAV navigation, robotics platforms, autonomous vehicles, precision agriculture equipment and high-precision GNSS development projects.

Key Features

Septentrio Mosaic-G5 GNSS Module Integration

Integrated with the Septentrio mosaic-G5 GNSS module for professional RTK positioning applications.

Multi-Frequency GNSS Support

Supports L1, L2 and L5 multi-frequency GNSS signals for improved positioning reliability and signal availability.

Centimeter-Level RTK Positioning

Supports RTK positioning with horizontal accuracy of 0.6 cm + 0.5 ppm and vertical accuracy of 1 cm + 1 ppm.

Multi-Constellation Tracking

Supports GPS, GLONASS, Galileo, BeiDou and QZSS satellite navigation systems.

High-Speed Position Update

Supports up to 20 Hz update rate for dynamic navigation and autonomous applications.

Compact Receiver Board Design

Compact hardware design with USB, UART and JST interfaces for embedded system integration.

Technical Specifications

Hardware Interface

The TX-G5RB01 GNSS receiver board provides flexible interfaces for integration with embedded positioning systems.

• SMA antenna connector for external GNSS antenna connection

• USB interface

• UART communication interface

• JST connector interface

Applications

• UAV Navigation Systems

• Robotics Platforms

• Autonomous Vehicles

• Precision Agriculture Equipment

• Industrial Positioning Systems

• GNSS Development Projects

System Integration

The TX-G5RB01 GNSS receiver board can be integrated with flight controllers, embedded computers, industrial controllers and autonomous navigation systems through standard communication interfaces.

GNSS Antenna → RTK GNSS Receiver Board → Controller / Computer → Navigation System

Why Choose TOXU

• GNSS positioning hardware development capability

• RF antenna and GNSS solution integration experience

• IATF16949 & ISO9001 certified manufacturing

• OEM/ODM customization support

• Prototype development to mass production

FAQ

Q1: What GNSS module is used on this board?

A1: The board integrates the Septentrio mosaic-G5 GNSS module.

Q2: Does this board support RTK positioning?

A2: Yes, it supports RTK positioning with centimeter-level accuracy.

Q3: Which satellite systems are supported?

A3: It supports GPS, GLONASS, Galileo, BeiDou and QZSS.

Q4: What applications can use this GNSS receiver board?

A4: It is suitable for UAVs, robotics, autonomous navigation and precision positioning systems.
