Overview

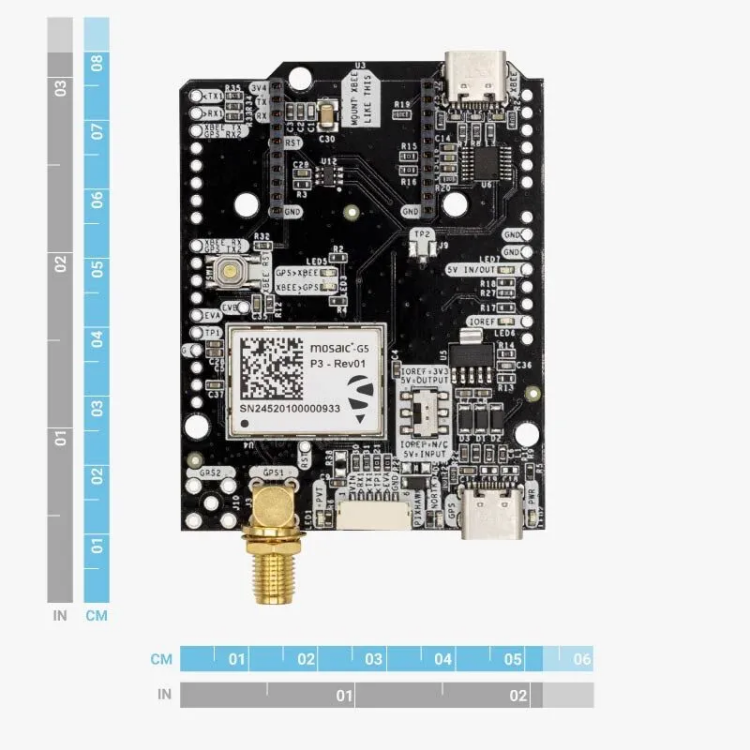

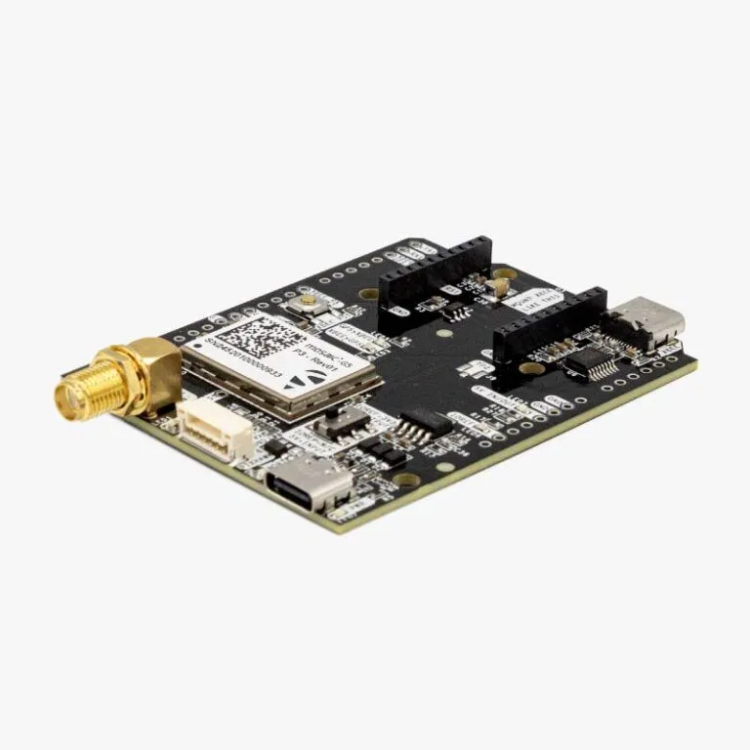

The TOXU TX-G5-RTK02 RTK GNSS Receiver Development Board integrates the Septentrio Mosaic-G5 P3 GNSS module, providing high-performance positioning capability for professional navigation systems.

The Septentrio Mosaic-G5 P3 module supports multi-band GNSS reception on L1, L2 and L5 frequencies, enabling centimeter-level RTK positioning performance for demanding applications.

The development board is designed for easy integration with UAV autopilot systems, robotics controllers, industrial computers and embedded platforms.

Key Features

Septentrio Mosaic-G5 P3 GNSS Module

Integrated with the Septentrio Mosaic-G5 P3 high precision GNSS positioning module for professional RTK applications.

Multi-Band GNSS Support

Supports L1, L2 and L5 multi-frequency GNSS signals for reliable satellite positioning performance.

Multi-Constellation Tracking

Supports GPS, GLONASS, Galileo, BeiDou, QZSS and NavIC satellite systems.

Centimeter-Level RTK Positioning

Provides centimeter-level RTK positioning capability for precision navigation applications.

Flexible Communication Interfaces

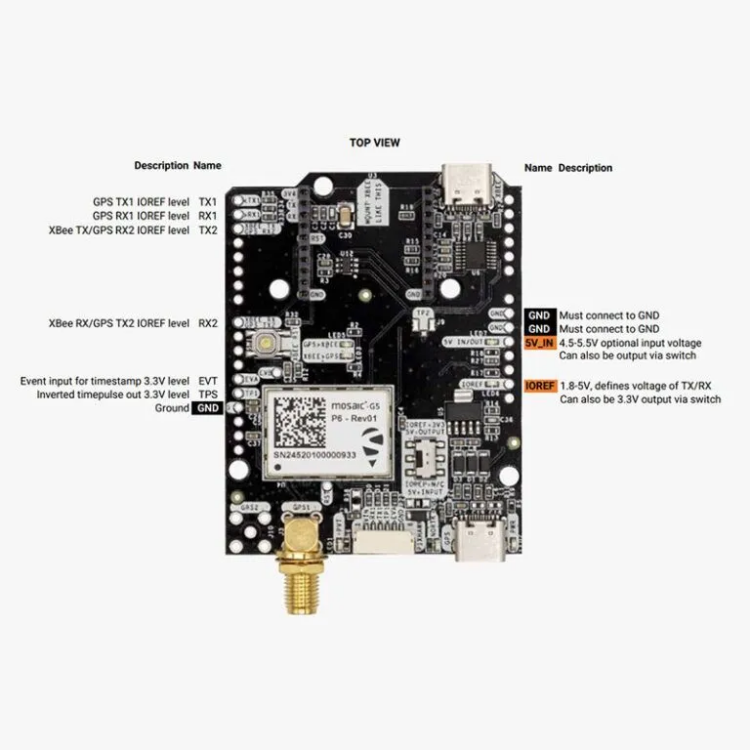

Provides USB, UART, XBee, Timepulse and Event interfaces for system integration.

Technical Specifications

Applications

• UAV Navigation Systems

• Robotics and Autonomous Platforms

• Surveying Equipment

• Precision Agriculture

• Industrial Navigation Systems

System Integration

GNSS Antenna → Septentrio Mosaic-G5 P3 RTK Board → Flight Controller / Industrial Computer → Navigation System

The TX-G5-RTK02 can be integrated into OEM positioning solutions through standard communication interfaces.

Why Choose TOXU

TOXU provides GNSS hardware integration solutions including RTK receiver boards, GNSS antennas, RF cables and customized positioning hardware.

With OEM/ODM capability and manufacturing experience, TOXU supports prototype development and mass production for industrial customers.

FAQ

Q1: Which GNSS module is used on this board?

A1: The TX-G5-RTK02 integrates the Septentrio Mosaic-G5 P3 GNSS module.

Q2: Does this board support RTK positioning?

A2: Yes, it supports RTK GNSS positioning with centimeter-level accuracy capability.

Q3: Which GNSS bands are supported?

A3: It supports L1, L2 and L5 multi-band GNSS signals.
