SIM7600-H
The SlM7600-H series is the LTE Cat 4 module whichsupports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. lt supportsmaximum 150Mbps downlink rate and 50Mbps uplink rate.
SIM7600A-H Core board
SIM7600A-H Core board

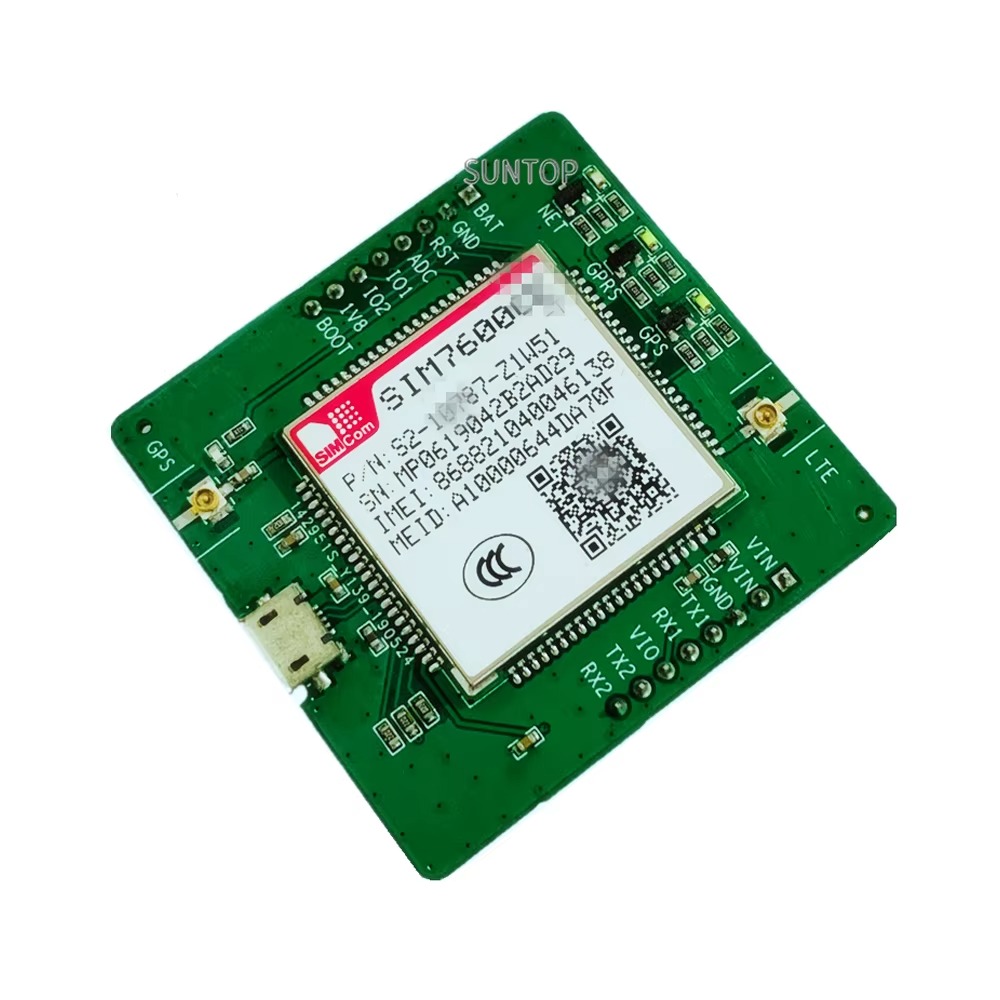

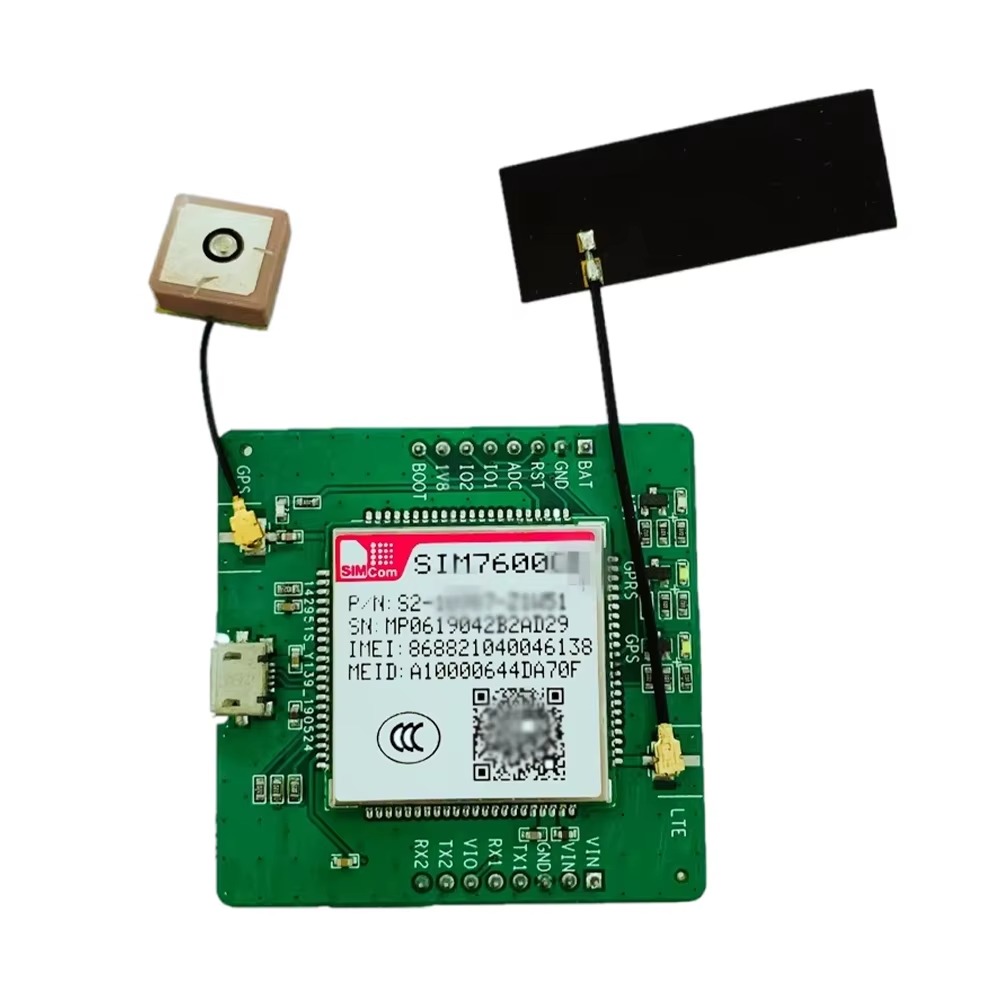

SIM7600G-H core boad
| BAT | Battery power interface |
| GND | land |
| RST | Reset pin |
| IO1 | modulus conversion interface |
| IO2 | connect sim7600cepin52 |
| 1V8 | connect sim7600cepin87 |
| BOOT | sim7600ce output 1.8v |
| VIN | connect sim7600cepin85 |
| GND | 5-24V Power supply |
| RX1 | land |
| VIO | Serial port 1 Receive |
| TX2 | Peripheral serial port level |
| RX2 | Serial port 2 Send |
| TX1 | Serial port 2 Receive |
KEY FEATURE
LCC1 form factor with abundant interfaces
Suitable for LTE, UMTS and GSM networks with global coverage
Abundant software functions: FOTA, LBS, TLS, VOLTE
Multi-constellation GNSS receiver support AT commands of the SlM7600-H series are compatible with the SlM7500/SlM7600 series modules
