Overview

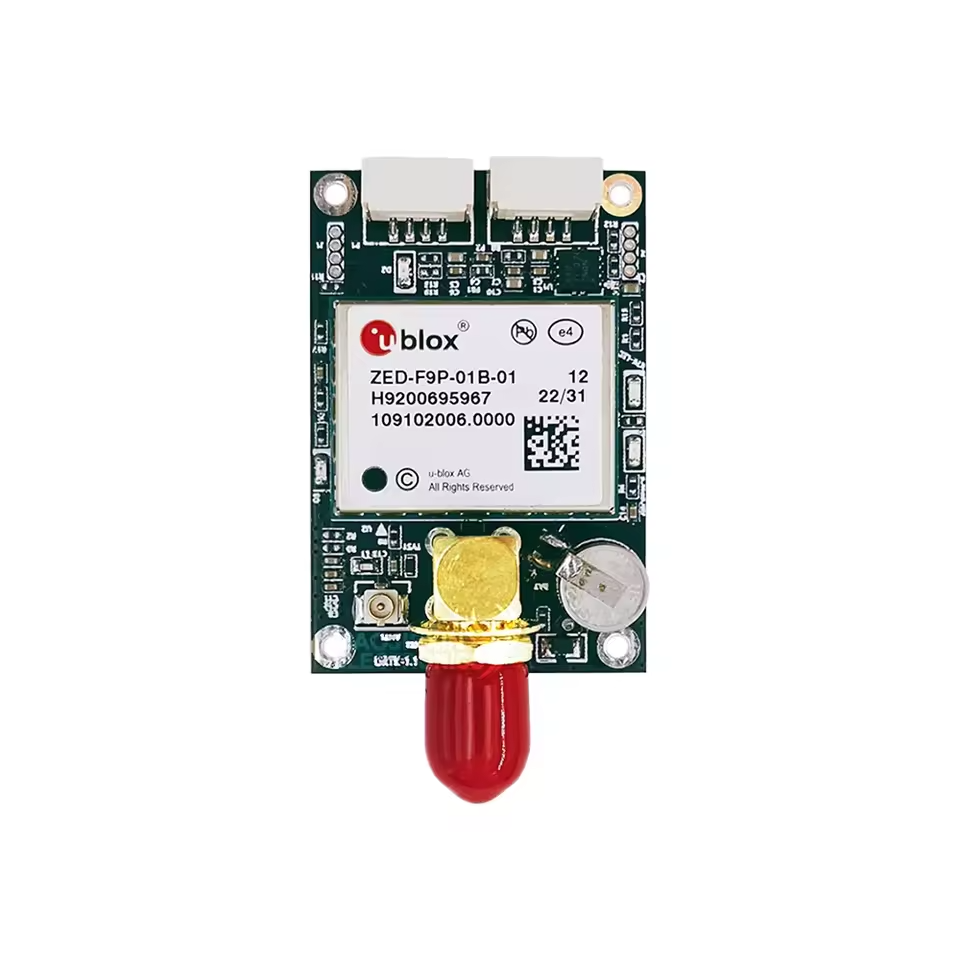

The TOXU TX-ZED-F9P-01B RTK GNSS Receiver Board is a high precision positioning solution based on the u-blox ZED-F9P GNSS module.

The board integrates multi-band GNSS reception and RTK technology to provide centimeter-level positioning performance with fast convergence and reliable navigation capability.

Supporting GPS, GLONASS, Galileo, BeiDou and QZSS satellite systems, the TX-ZED-F9P-01B is designed for UAVs, robotics, surveying equipment, precision agriculture and autonomous positioning applications.

Key Features

u-blox ZED-F9P Integration

Integrated with the u-blox ZED-F9P high precision GNSS module for RTK positioning applications.

Multi-Band GNSS Reception

Supports multi-frequency GNSS signals from GPS, GLONASS, Galileo, BeiDou and QZSS satellite systems.

Centimeter-Level RTK Positioning

Provides 0.01 m + 1 ppm CEP positioning accuracy in RTK mode with correction data input.

High Sensitivity Performance

With -167 dBm tracking sensitivity, the receiver provides reliable satellite signal acquisition and positioning performance.

Flexible Communication Interface

Supports UART communication interface for convenient integration with different host systems.

External GNSS Antenna Connection

Supports external active GNSS antenna connection for optimized positioning performance.

Technical Specifications

Hardware Interface

The TX-ZED-F9P-01B GNSS receiver board provides a compact hardware platform for integration into professional positioning systems.

• External GNSS antenna interface

• UART communication interface

• RTK correction data support

Applications

• UAV Navigation Systems

• Surveying and Mapping Equipment

• Precision Agriculture Equipment

• Robotics Platforms

• Autonomous Vehicles

• Industrial Positioning Systems

System Integration

The TX-ZED-F9P-01B GNSS receiver board can be integrated with flight controllers, embedded computers and industrial controllers through standard communication interfaces.

GNSS Antenna → RTK GNSS Receiver Board → Controller → Navigation System

Why Choose TOXU

• GNSS positioning hardware development capability

• RF antenna and GNSS solution integration experience

• IATF16949 & ISO9001 certified manufacturing

• OEM/ODM customization support

• Prototype development to mass production

FAQ

Q1: What GNSS module is used on this board?

A1: The board integrates the u-blox ZED-F9P high precision GNSS module.

Q2: Does this board support RTK positioning?

A2: Yes, it supports RTK positioning with correction data input.

Q3: Which satellite systems are supported?

A3: It supports GPS, GLONASS, Galileo, BeiDou and QZSS.

Q4: What applications can use this GNSS board?

A4: It is suitable for UAVs, drones, robotics, surveying and precision agriculture systems.
