Overview

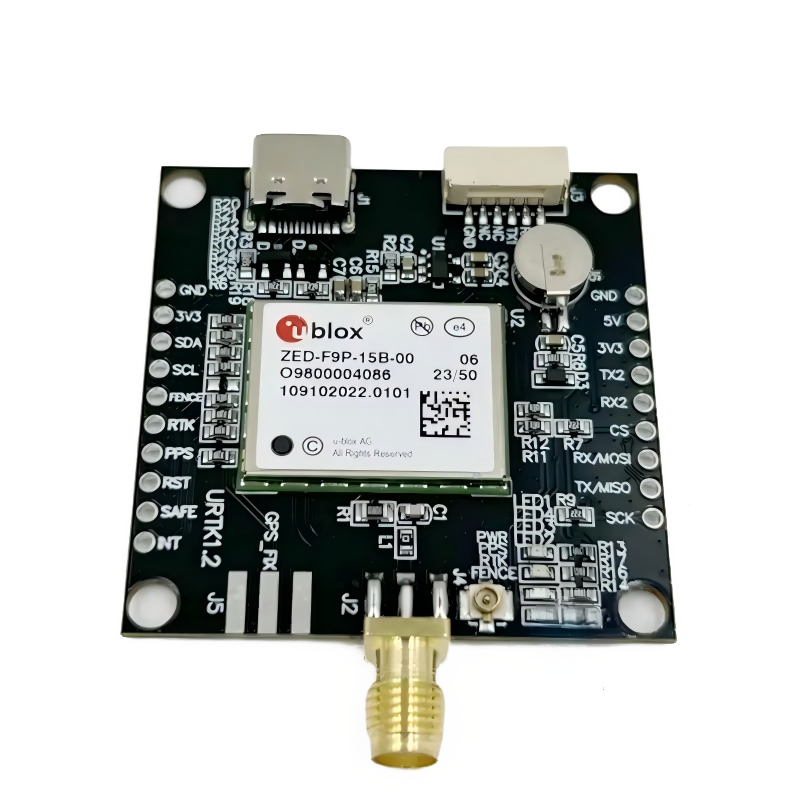

The TOXU TX-ZED-F9P-15B RTK GNSS Receiver Board is a high precision positioning solution based on the u-blox ZED-F9P-15B GNSS module.

The board supports multi-frequency and multi-constellation GNSS reception, providing reliable RTK positioning capability for applications requiring accurate location information.

With support for GPS, GLONASS, Galileo, BeiDou and QZSS satellite systems, the TX-ZED-F9P-15B is designed for UAV navigation, robotics, surveying, agricultural automation and autonomous positioning systems.

Key Features

u-blox ZED-F9P-15B Integration

Integrated with the u-blox ZED-F9P-15B high precision GNSS module for professional RTK positioning applications.

Dual Frequency GNSS Support

Supports L1 and L5 GNSS frequency bands to improve positioning reliability and signal availability.

Centimeter-Level RTK Positioning

Supports RTK correction data input through RTCM to achieve 0.01 m + 1 ppm CEP positioning accuracy in RTK mode.

Multi-Constellation Compatibility

Supports GPS, GLONASS, Galileo, BeiDou and QZSS satellite navigation systems.

Multiple Communication Interfaces

Provides UART, USB Type-C, SPI, I2C, PPS and RTCM interfaces for flexible integration.

Industrial Grade Design

Supports -40°C to +85°C operating temperature for industrial and outdoor applications.

Technical Specifications

Hardware Interface

The TX-ZED-F9P-15B GNSS receiver board provides flexible hardware interfaces for integration into different positioning systems.

• SMA female antenna connector for active GNSS antenna connection

• USB Type-C interface

• UART communication interface

• SPI and I2C interface

• PPS timing output

• RTCM correction data interface

Applications

• UAV Navigation Systems

• Robotics Platforms

• Precision Agriculture Equipment

• Surveying and Mapping Equipment

• Autonomous Vehicles

• Industrial Positioning Systems

System Integration

The TX-ZED-F9P-15B GNSS receiver board can be integrated with flight controllers, embedded computers, industrial controllers and autonomous navigation systems through standard communication interfaces.

GNSS Antenna → RTK GNSS Receiver Board → MCU / Flight Controller → Navigation System

Why Choose TOXU

• GNSS positioning hardware development capability

• RF antenna and GNSS solution integration experience

• IATF16949 & ISO9001 certified manufacturing

• OEM/ODM customization support

• Prototype development to mass production

FAQ

Q1: What GNSS module is used on this board?

A1: The board integrates the u-blox ZED-F9P-15B high precision GNSS module.

Q2: Does this board support RTK positioning?

A2: Yes, the board supports RTK positioning with RTCM correction data input.

Q3: Which GNSS bands are supported?

A3: It supports L1 and L5 dual frequency GNSS bands.

Q4: Can TOXU provide customization?

A4: Yes, TOXU provides GNSS hardware customization and positioning solution integration support.
