Overview

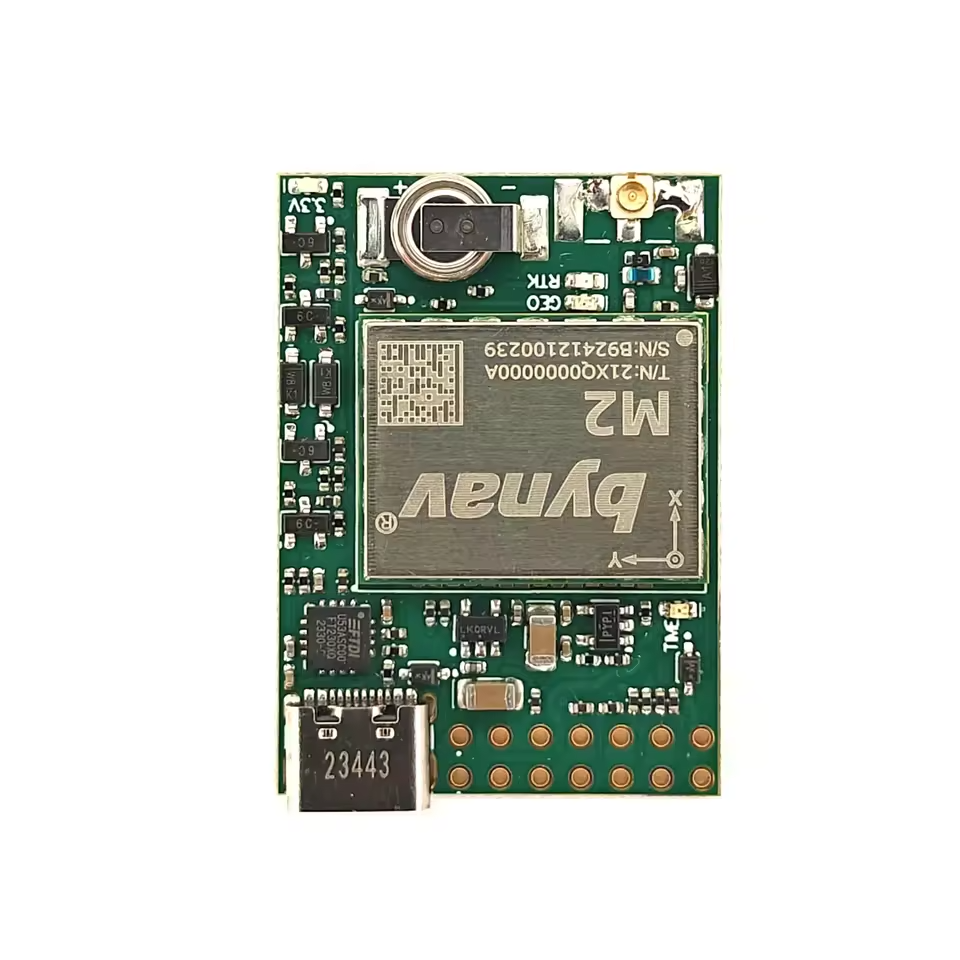

The TOXU TX-M21RTK01 is a high-performance RTK GNSS positioning module based on the Bynav M21 RTK GNSS Module with integrated IMU sensor.

The Bynav M21 GNSS module combines multi-frequency satellite positioning and inertial sensing technology to provide stable positioning performance for dynamic environments.

Supporting GPS, GLONASS, Galileo, BeiDou and QZSS satellite systems, the TX-M21RTK01 is designed for UAV navigation, robotics, autonomous systems, surveying equipment and precision agriculture applications.

Key Features

Bynav M21 RTK GNSS Module Integration

Integrated with the Bynav M21 RTK GNSS Module to provide high-performance positioning capability with compact hardware design.

Multi-Frequency GNSS Positioning

Supports multi-frequency GNSS signals for improved positioning reliability and satellite tracking performance.

Multi-Constellation Support

Supports GPS, GLONASS, Galileo, BeiDou and QZSS satellite navigation systems.

Integrated IMU Sensor

Built-in IMU sensor provides motion information for navigation applications requiring dynamic positioning capability.

RTK Positioning Capability

Supports RTK GNSS positioning with horizontal accuracy of 1 cm + 1 ppm.

Compact Embedded Design

The compact module design supports integration into UAVs, robotics platforms and autonomous navigation equipment.

Technical Specifications

Hardware Interface

The TX-M21RTK01 provides flexible interfaces for integration with UAV controllers, embedded computers and autonomous navigation systems.

• USB Type-C interface

• UART communication interface

• SPI interface

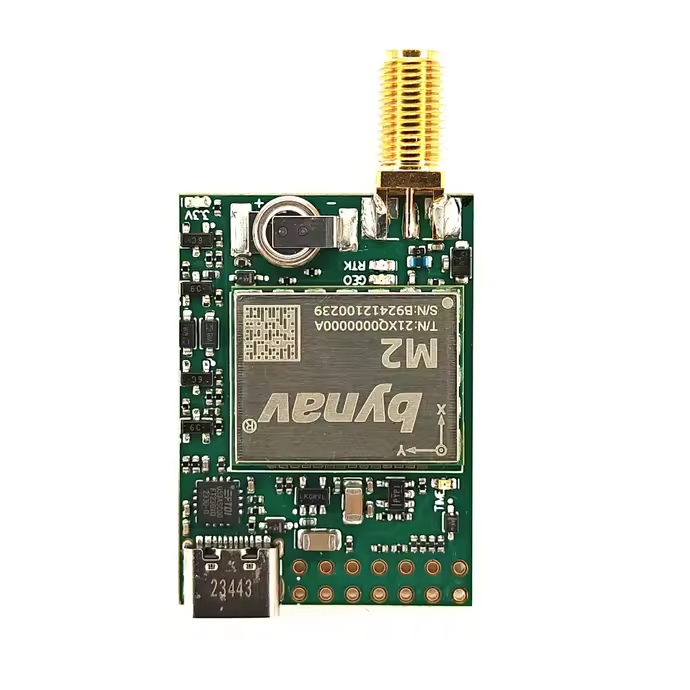

• SMA or IPEX antenna connector

Applications

• UAV Navigation Systems

• Robotics Platforms

• Autonomous Navigation Systems

• Surveying Equipment

• Precision Agriculture Equipment

• Industrial Positioning Systems

System Integration

The TX-M21RTK01 can be integrated with flight controllers, embedded computers and autonomous systems through standard communication interfaces.

GNSS Antenna → Bynav M21 RTK GNSS Module → Controller / Computer → Navigation System

Why Choose TOXU

• GNSS positioning hardware development capability

• RF antenna and GNSS solution integration experience

• IATF16949 & ISO9001 certified manufacturing

• OEM/ODM customization support

• Prototype development to mass production

FAQ

Q1: What GNSS module is used in TX-M21RTK01?

A1: The module integrates the Bynav M21 RTK GNSS Module with built-in IMU sensor.

Q2: Does this module support RTK positioning?

A2: Yes, it supports RTK GNSS positioning with 1 cm + 1 ppm horizontal accuracy.

Q3: Which satellite systems are supported?

A3: It supports GPS, GLONASS, Galileo, BeiDou and QZSS.

Q4: What applications can use this module?

A4: It is suitable for UAVs, robotics, autonomous navigation and precision positioning systems.
