Overview

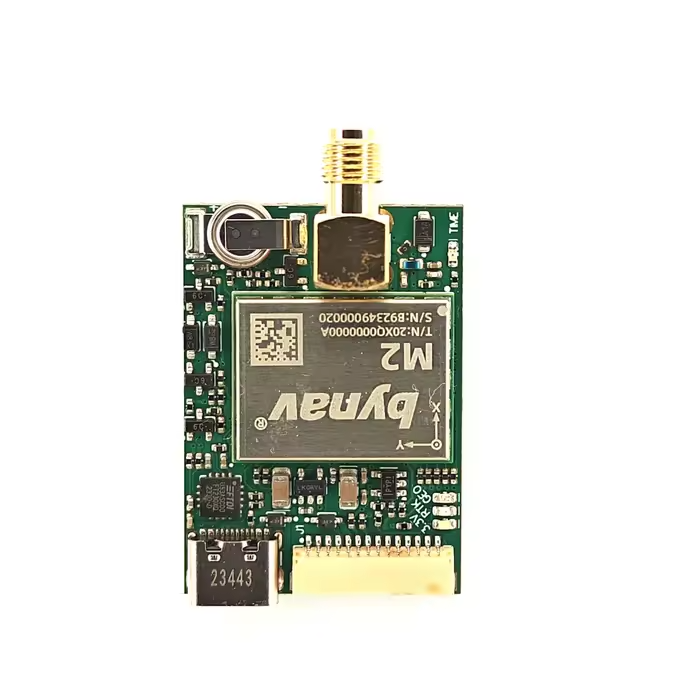

The TOXU TX-M20RTK01 RTK GNSS Receiver Module is based on the Bynav M20 RTK GNSS Module, designed to provide reliable multi-frequency satellite positioning capability for embedded navigation systems.

The Bynav M20 GNSS module supports multiple satellite constellations including GPS, GLONASS, Galileo, BeiDou and QZSS, enabling stable positioning performance in various application environments.

With compact hardware design and multiple communication interfaces, the TX-M20RTK01 is suitable for UAV navigation, robotics, autonomous systems, surveying equipment and precision positioning applications.

Key Features

Bynav M20 RTK GNSS Module Integration

Integrated with the Bynav M20 RTK GNSS Module to provide high-performance satellite positioning capability.

Multi-Frequency GNSS Support

Supports multi-frequency GNSS signals for improved positioning reliability and satellite tracking performance.

Multi-Constellation Satellite Support

Supports GPS, GLONASS, Galileo, BeiDou and QZSS navigation systems.

RTK Positioning Capability

Supports RTK GNSS positioning with horizontal accuracy of 1 cm + 1 ppm.

Compact Embedded Design

Compact receiver module design enables easy integration into UAVs, robotics and industrial navigation equipment.

Multiple Communication Interfaces

Provides USB Type-C, UART and SPI interfaces for flexible system integration.

Technical Specifications

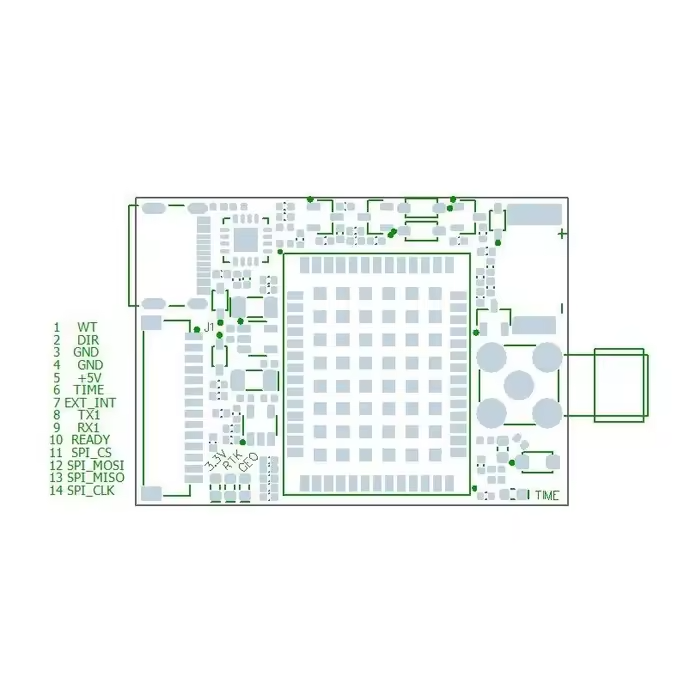

Hardware Interface

The TX-M20RTK01 provides flexible hardware interfaces for integration with embedded controllers and navigation systems.

• USB Type-C Interface

• UART Interface

• SPI Interface

• SMA Antenna Connector

Applications

• UAV Navigation Systems

• Robotics Platforms

• Autonomous Vehicles

• Surveying Equipment

• Precision Agriculture Systems

• Industrial Positioning Equipment

System Integration

The TX-M20RTK01 can be integrated with flight controllers, embedded computers and autonomous platforms through standard communication interfaces.

GNSS Antenna → Bynav M20 RTK GNSS Module → Controller / Computer → Navigation System

Why Choose TOXU

• GNSS positioning hardware development capability

• RF antenna and positioning solution integration experience

• IATF16949 & ISO9001 certified manufacturing

• OEM/ODM customization support

• Prototype development to mass production

FAQ

Q1: What GNSS module is used in TX-M20RTK01?

A1: The TX-M20RTK01 integrates the Bynav M20 RTK GNSS Module.

Q2: Which satellite systems are supported?

A2: It supports GPS, GLONASS, Galileo, BeiDou and QZSS satellite systems.

Q3: Does this module support RTK positioning?

A3: Yes, it supports RTK GNSS positioning with 1 cm + 1 ppm horizontal accuracy.

Q4: What interfaces are available?

A4: The module provides USB Type-C, UART and SPI communication interfaces.
