Overview

The TOXU KC.CW.00402 is a compact RF cable assembly designed with an SMA Female Bulkhead connector and a right-angle MCX Male connector connected by a 150mm RF1.13 coaxial cable. It provides reliable RF signal transmission while minimizing installation space requirements.

Its compact design makes it suitable for wireless communication equipment, GNSS receivers, embedded RF modules, industrial electronics and IoT devices requiring stable RF interconnections.

Key Features

SMA Female Bulkhead Connector

Provides a secure panel-mounted RF interface for external antennas.

Right-Angle MCX Male Connector

Ideal for compact devices where installation space is limited.

RF1.13 Low-Loss Cable

Offers excellent flexibility with stable RF transmission performance.

Compact Cable Assembly

Designed for embedded wireless systems requiring lightweight RF connections.

OEM Manufacturing Support

Supports customized cable lengths, connector combinations and cable types.

Technical Specifications

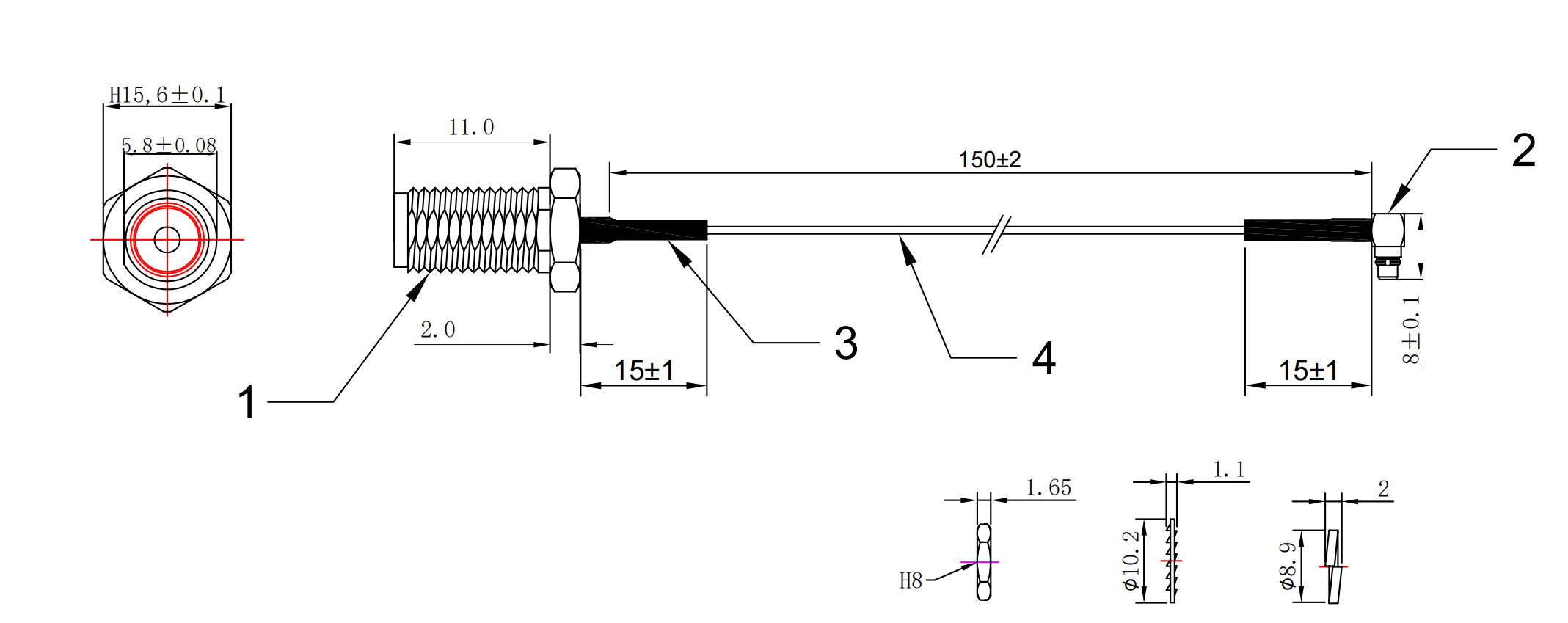

Dimension Drawing

A complete mechanical drawing is available, showing the connector dimensions, overall cable length and assembly structure for easy system integration.

Applications

● GNSS Modules

● Wireless Communication Equipment

● RF Modules

● IoT Devices

● Embedded Electronics

● Industrial RF Systems

System Integration

External RF Antenna

↓

KC.CW.00402 RF Cable Assembly

↓

MCX RF Interface

↓

GNSS Module / Wireless Module

↓

Electronic System

Complete RF Hardware Solution Support

Customized RF Cable Assemblies

TOXU provides customized RF cable assemblies with various connector combinations, cable types and cable lengths.

Connector Solutions

Available with SMA, MCX, MMCX, SMB, BNC, TNC, FAKRA, Mini FAKRA, N Type, U.FL and I-PEX connectors.

Antenna Integration

Supports complete integration of antennas, RF cables and connector systems.

OEM & ODM Manufacturing

Engineering support from prototype development to mass production.

Why Choose TOXU

TOXU provides integrated RF hardware solutions covering RF connectors, RF cable assemblies, communication antennas and customized RF development services.

With extensive manufacturing experience and engineering support, TOXU delivers reliable RF interconnection products for industrial and wireless communication applications.

FAQ

Q1: Can TOXU customize cable lengths?

Yes. Cable lengths can be customized according to customer requirements.

Q2: Can different connector combinations be supplied?

Yes. We support SMA, MCX, MMCX, SMB, FAKRA, Mini FAKRA, U.FL, I-PEX and other RF connector combinations.

Q3: Can TOXU support OEM and ODM projects?

Yes. We provide engineering support from prototype development through mass production.

Q4: What RF products does TOXU offer besides cable assemblies?

TOXU also manufactures RF connectors, communication antennas, GNSS antennas and complete RF hardware integration solutions.
