Overview

The TOXU KC.CW.00350 is a high-quality RF cable assembly designed with an SMA Female Bulkhead connector and an I-PEX MHF1 (U.FL) connector connected by a 90mm RF1.13 coaxial cable. It provides reliable RF signal transmission while supporting compact embedded wireless devices.

Designed for GNSS, Wi-Fi, Bluetooth, LTE, LoRa, IoT and RF communication systems, this cable assembly offers excellent flexibility, low insertion loss and stable electrical performance.

Key Features

SMA Female Bulkhead Connector

Provides a secure panel-mounted RF interface for external antennas.

I-PEX MHF1 Connector

Widely used on compact RF modules and wireless communication boards.

RF1.13 Low-Loss Cable

Flexible miniature coaxial cable providing reliable RF signal transmission.

Compact Assembly

Ideal for devices where installation space is limited.

Custom Manufacturing

Cable length, connector type and cable specification can all be customized.

Technical Specifications

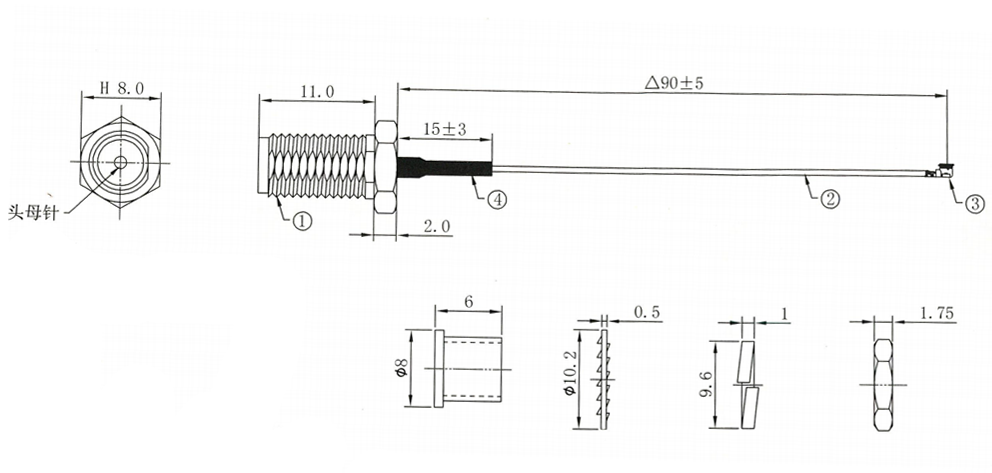

Dimension Drawing

The product includes a detailed mechanical drawing showing connector dimensions, cable length and assembly structure for accurate installation and system integration.

Applications

● GNSS Receiver Modules

● Wi-Fi Modules

● Bluetooth Devices

● LTE/5G Communication Equipment

● IoT Devices

● Embedded RF Systems

System Integration

External RF Antenna

↓

SMA Female Bulkhead

↓

KC.CW.00350 RF Cable Assembly

↓

I-PEX MHF1 RF Interface

↓

Wireless Module / GNSS Module

Complete RF Hardware Solution Support

Custom RF Cable Assemblies

TOXU manufactures RF cable assemblies with customized cable lengths, cable types and connector combinations.

Connector Options

Available with SMA, RP-SMA, MMCX, MCX, SMB, BNC, N Type, TNC, U.FL, I-PEX, FAKRA and Mini FAKRA connectors.

Integrated RF Solutions

Complete support for antennas, RF connectors and cable assemblies for communication and positioning systems.

OEM & ODM Service

Engineering support from prototype development through volume production.

Why Choose TOXU

TOXU specializes in RF cable assemblies, RF connectors and antenna solutions for GNSS, wireless communication, IoT and industrial applications.

With professional engineering capabilities and strict quality control, TOXU delivers reliable RF interconnection products for global OEM customers.

FAQ

Q1: Can cable length be customized?

Yes. Custom cable lengths are available according to project requirements.

Q2: Can different connector combinations be produced?

Yes. TOXU supports a wide range of RF connector combinations including SMA, U.FL, MCX, MMCX, SMB, FAKRA and more.

Q3: Is OEM or ODM service available?

Yes. We provide complete OEM and ODM manufacturing services for RF cable assemblies.

Q4: What industries use this cable assembly?

It is widely used in GNSS positioning, wireless communication, IoT devices, industrial electronics and embedded RF systems.
