Overview

The TOXU KC.CW.00259 RF cable assembly is designed for compact RF signal transmission between external antennas and embedded wireless modules. It combines an SMA female bulkhead connector with an I-PEX MHF1 connector using a 30mm RF0.81 low-profile coaxial cable.

With a characteristic impedance of 50Ω and operating frequency up to 6GHz, this cable assembly delivers reliable RF performance for wireless communication, GNSS, Bluetooth, Wi-Fi and IoT applications requiring miniature RF interconnections.

Key Features

SMA Female Bulkhead Connector

Provides a secure panel-mounted RF interface for external antenna installation.

I-PEX MHF1 Connector

Designed for compact RF modules, embedded wireless devices and GNSS receivers.

RF0.81 Micro Coaxial Cable

Ultra-thin coaxial cable providing excellent flexibility and stable RF transmission.

30mm Compact Design

Ideal for products with limited internal installation space.

Factory Customization

Supports custom connector combinations, cable lengths and coaxial cable types.

Technical Specifications

Dimension Drawing

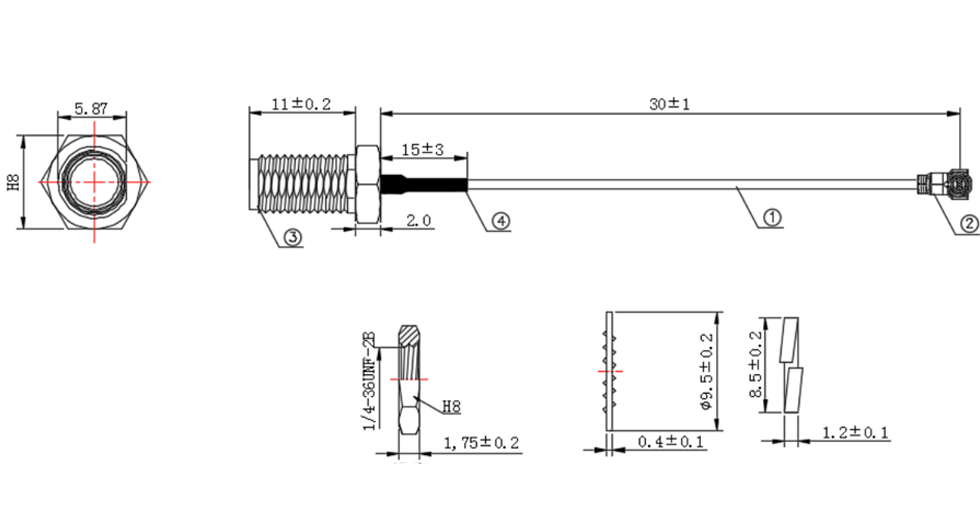

A complete mechanical drawing is available, including connector dimensions, cable routing and 30mm cable length for easy product integration.

Applications

● GNSS Receiver Modules

● Wi-Fi Modules

● Bluetooth Modules

● IoT Devices

● Embedded RF Systems

● Industrial Wireless Equipment

System Integration

External RF Antenna

↓

KC.CW.00259 RF Cable Assembly

↓

I-PEX MHF1 RF Interface

↓

Wireless Communication Module

↓

Electronic Device

Complete RF Hardware Solution Support

RF Cable Assembly Manufacturing

Custom RF cable assemblies with SMA, I-PEX, U.FL, MMCX, MCX, SMB, FAKRA, Mini FAKRA, BNC, N-Type and TNC connectors.

Connector Customization

Multiple connector combinations, cable types and lengths are available for OEM applications.

Antenna Integration

Complete antenna and RF interconnection solutions for wireless communication and GNSS systems.

OEM & ODM Service

From prototype development to volume production with strict quality control.

Why Choose TOXU

TOXU specializes in RF cable assemblies, RF connectors and antenna integration solutions for wireless communication, GNSS positioning, automotive electronics and IoT applications.

Every cable assembly is manufactured under strict quality standards and tested to ensure stable RF performance and long-term reliability.
