Overview

The TOXU TX-CN-SMA-001 is a SMA female right angle RF coaxial connector designed for PCB mounting applications. It provides a reliable RF connection solution for wireless communication equipment, antenna systems and electronic devices.

The connector adopts a compact right angle structure with flange mounting design, allowing flexible installation in RF modules and electronic systems where space optimization is required.

TOXU provides RF connector solutions together with RF cable assemblies and antenna integration services to support customized hardware projects from prototype development to mass production.

Key Features

SMA Female Interface

Designed with standard SMA female interface for RF coaxial signal connection.

Right Angle Connector Structure

Provides a 90-degree connection direction for compact RF system installation.

PCB Mount Configuration

Designed for PCB-level integration in wireless communication and RF electronic systems.

Flange Mount Design

Supports mechanical fixing with mounting holes to improve installation stability.

Coaxial RF Connection

Provides a standard RF interface for antenna, cable and electronic module connections.

Technical Specifications

Dimension Drawing

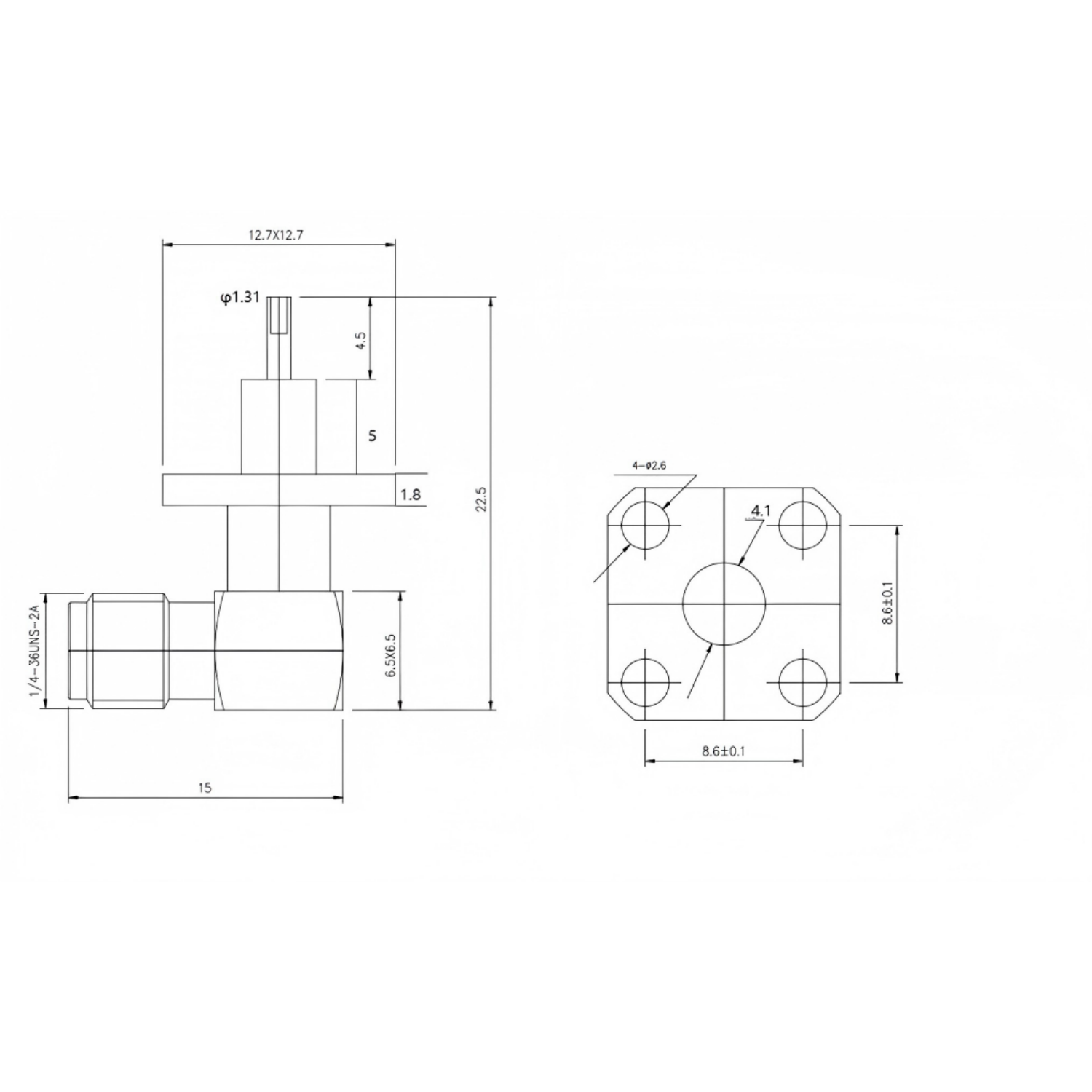

The product dimension drawing is available for mechanical design reference, including connector outline and mounting hole information.

Applications

The TX-CN-SMA-001 SMA RF coaxial connector is suitable for:

• Wireless communication equipment

• RF modules

• Antenna systems

• Test and measurement equipment

• Electronic communication devices

System Integration

The SMA connector can be integrated into RF hardware systems as a connection interface:

Antenna System

↓

RF Cable Assembly

↓

SMA Connector

↓

RF Module / Electronic System

TOXU supports connector matching, RF cable assembly development and customized RF hardware integration according to customer requirements.

Complete RF Hardware Solution Support

RF Connector Solutions

TOXU provides RF connector solutions including SMA, BNC, N-Type, MMCX, MCX, FAKRA, Mini FAKRA and customized RF connectors for different applications.

RF Cable Assembly

TOXU provides customized RF cable assemblies with connector matching, cable selection and assembly support.

Antenna Integration

TOXU supports RF interface integration between antennas, cables and connector systems.

Hardware Customization

TOXU supports prototype development, engineering validation and mass production for customized RF hardware projects.

Why Choose TOXU

TOXU provides integrated RF hardware solutions covering connectors, RF cable assemblies, antennas and customized hardware development.

With RF engineering capability and manufacturing support, TOXU helps customers complete projects from prototype validation to mass production.
