Overview

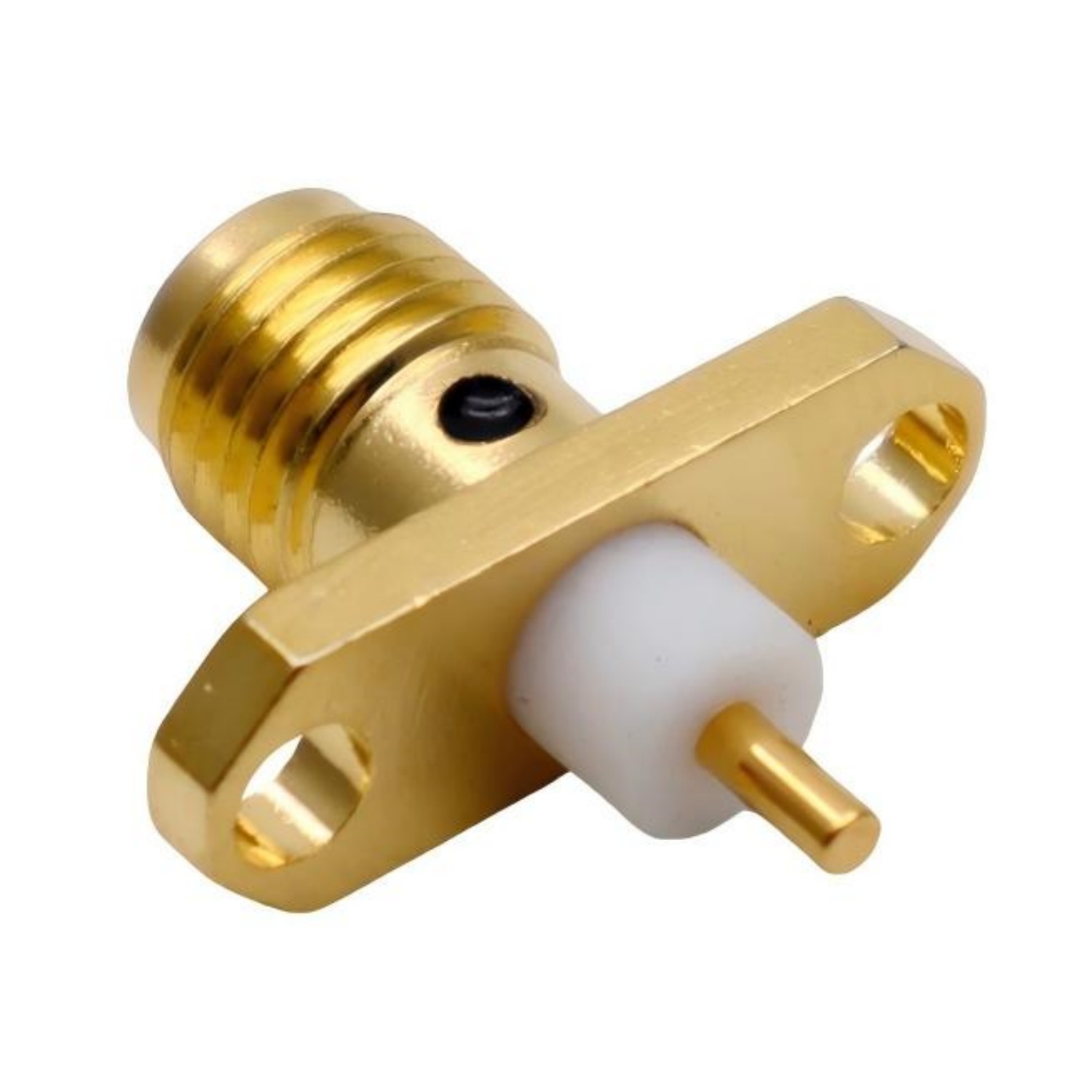

The TOXU TX-CN-SMA-002 is a SMA female right angle RF coaxial connector designed for PCB mounting applications. It adopts a compact flange structure and provides a reliable 50Ω RF connection interface for electronic and communication systems.

The connector supports DC to 12GHz frequency applications and is suitable for RF modules, wireless communication equipment, antenna systems and other electronic devices requiring stable coaxial connections.

With PCB soldering structure and mechanical mounting holes, the TX-CN-SMA-002 provides a practical RF connection solution for hardware integration and customized RF applications.

Key Features

SMA Female RF Interface

Designed with standard SMA female interface for reliable coaxial RF signal connection.

Right Angle Configuration

The right angle structure helps optimize installation space in compact electronic systems.

PCB Mount Design

Supports soldering installation on PCB boards for direct RF system integration.

50Ω Impedance Matching

Designed for standard 50Ω RF systems and coaxial signal transmission applications.

Wide Frequency Capability

Supports DC to 12GHz frequency range for various RF communication applications.

Technical Specifications

Dimension Drawing

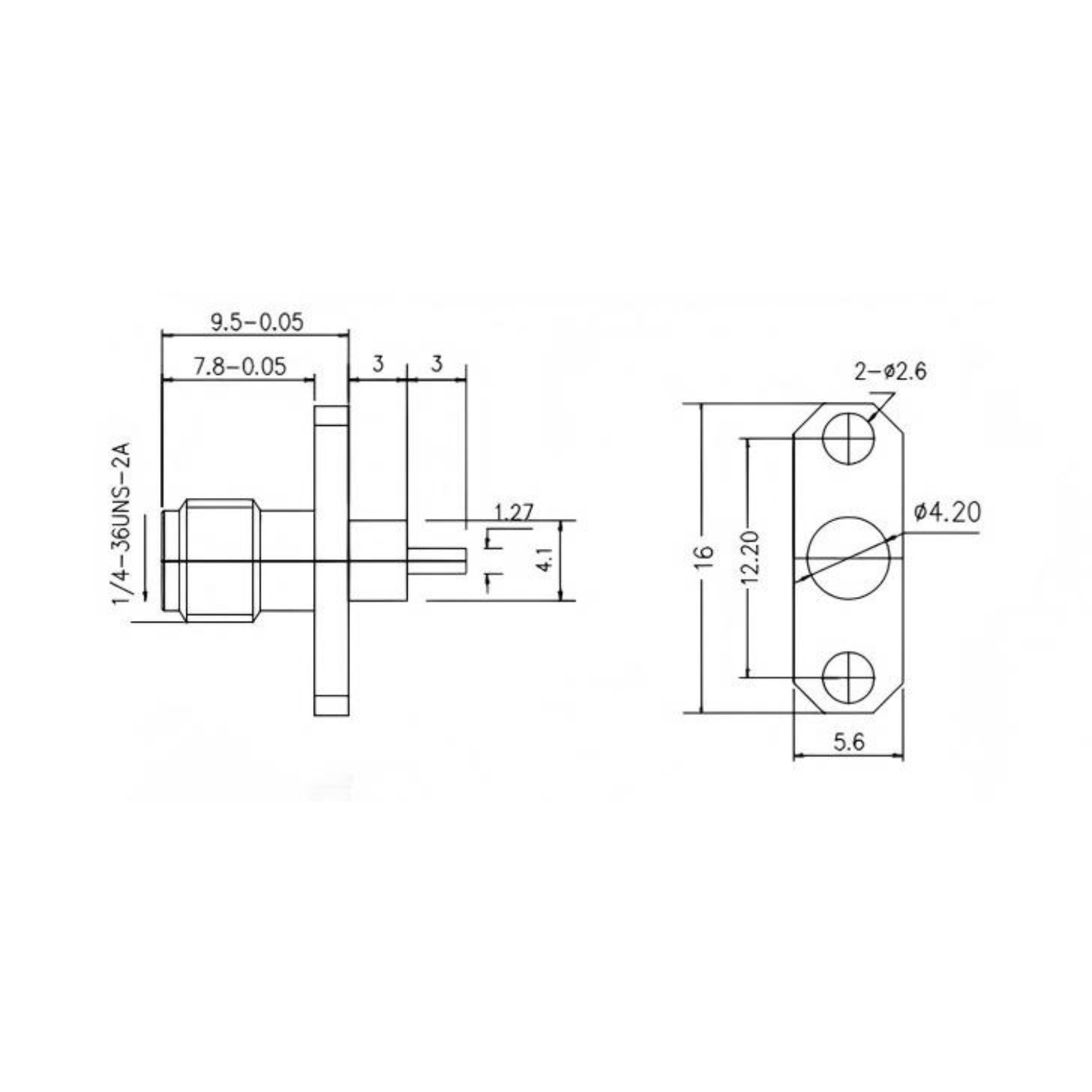

The dimension drawing provides mechanical dimensions and mounting hole information for product integration.
