Overview

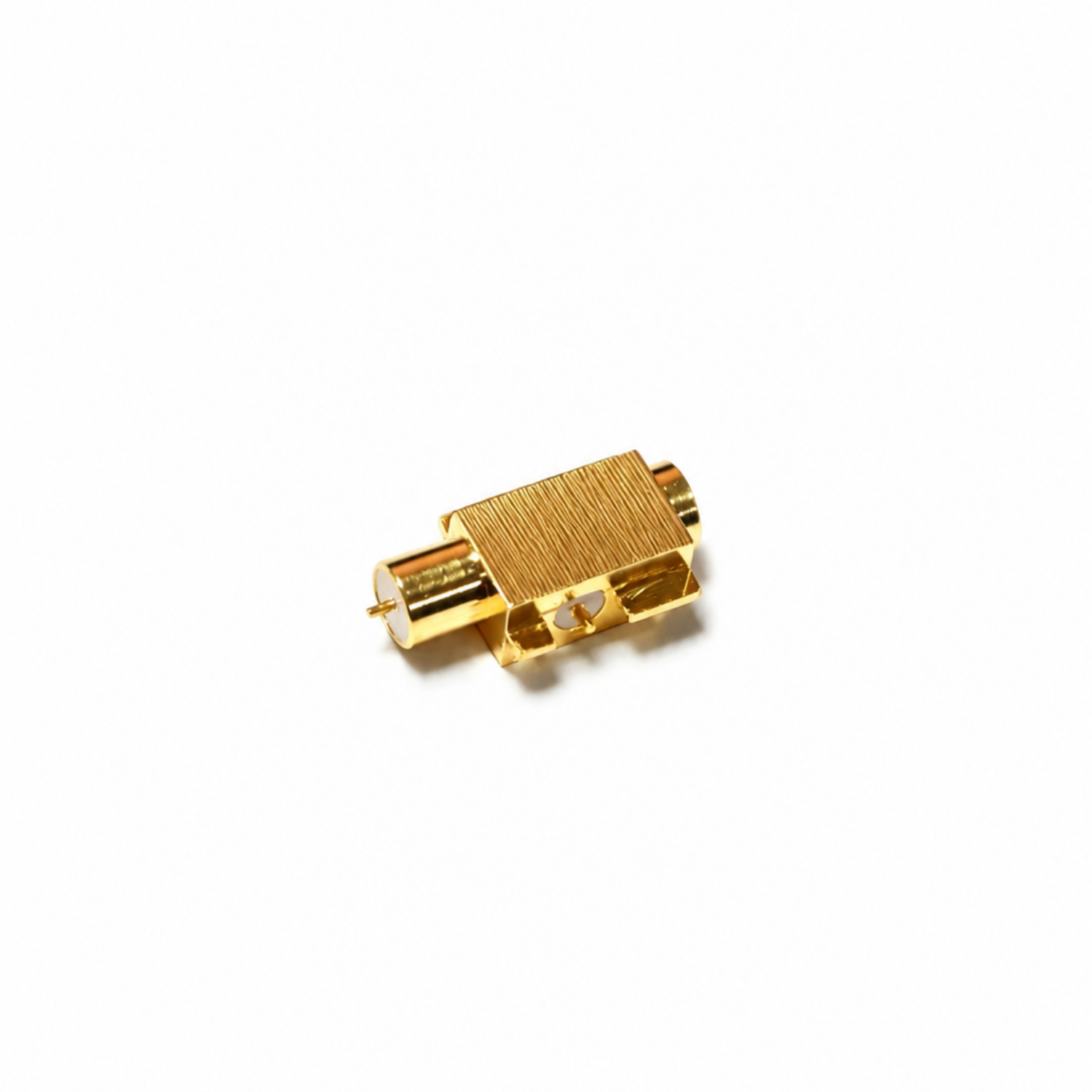

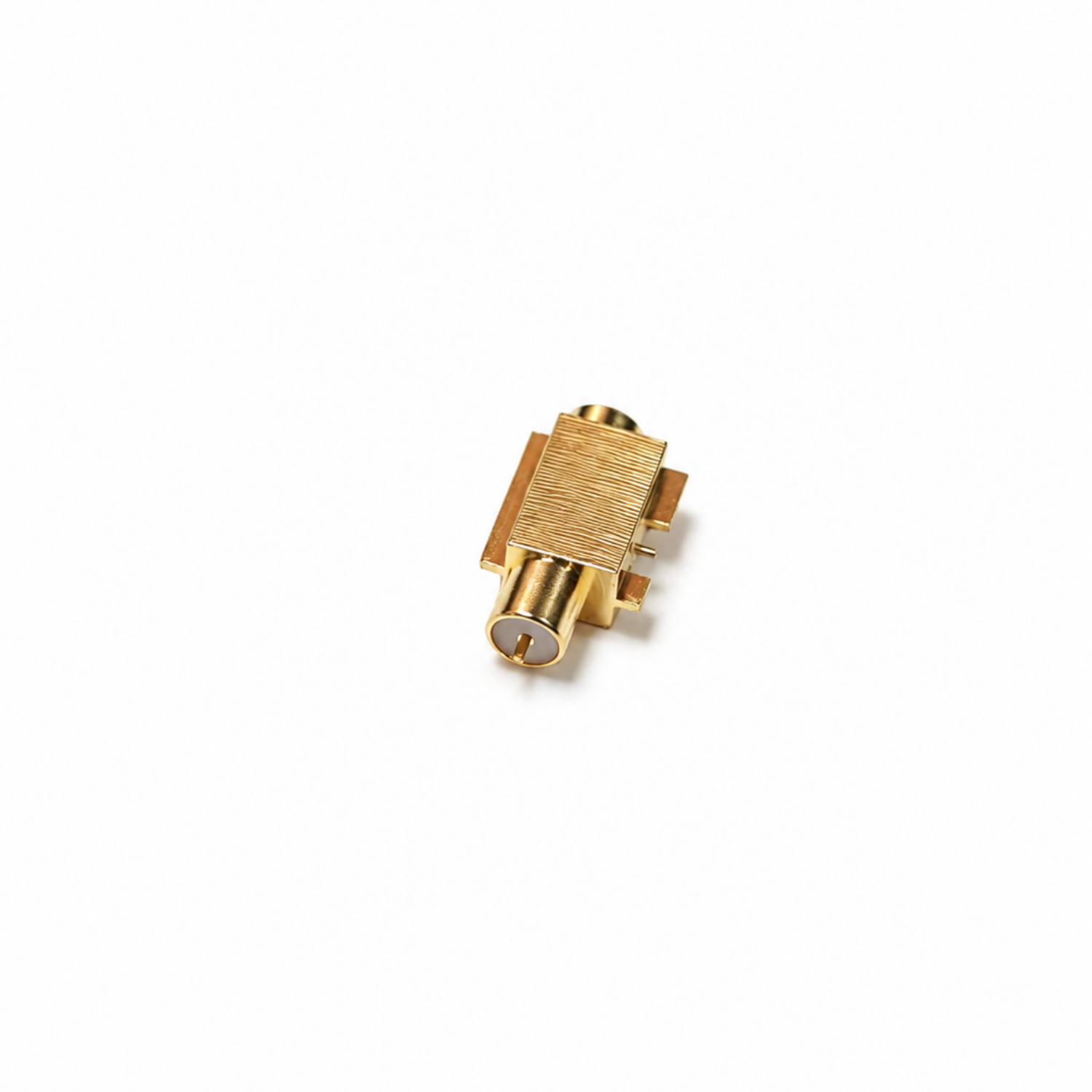

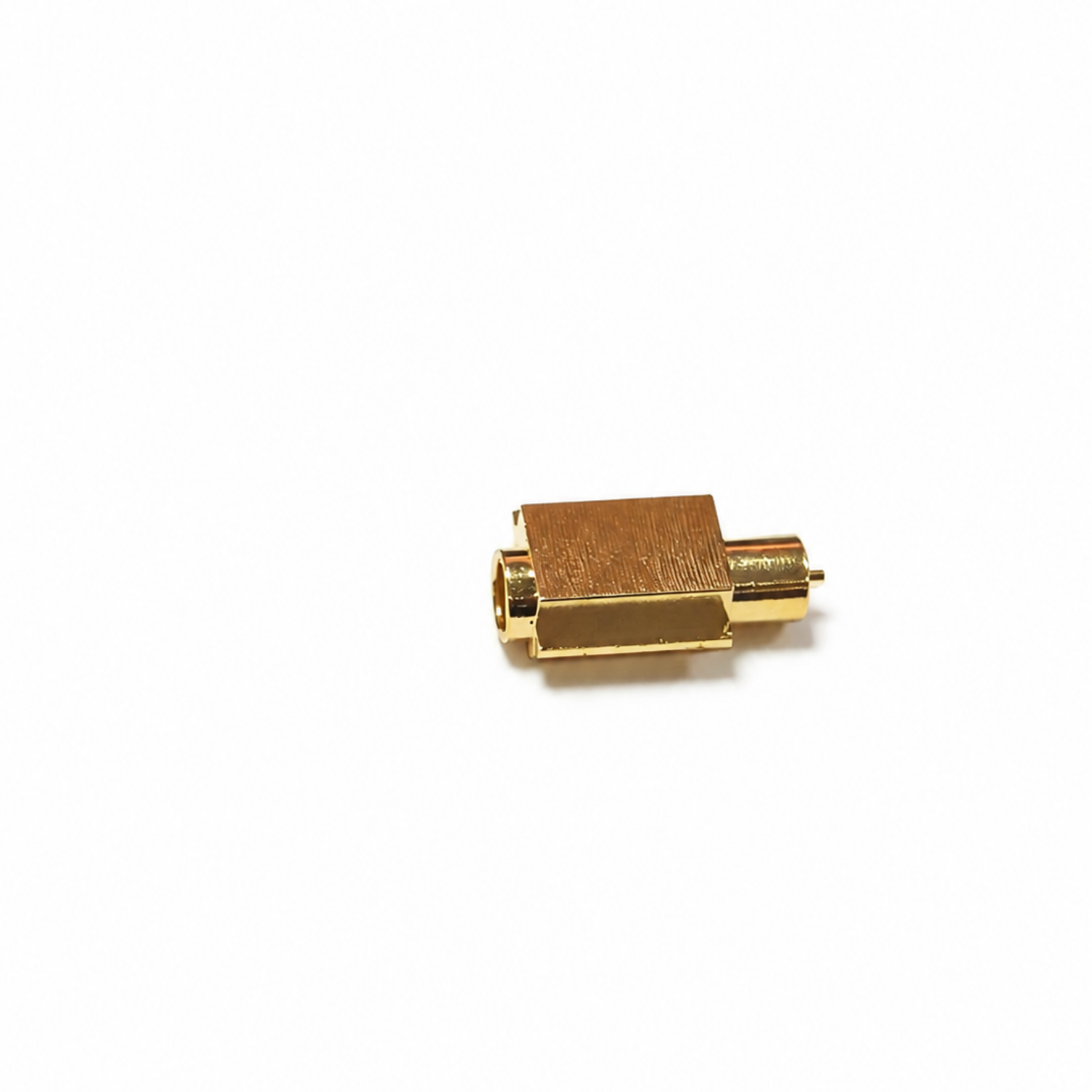

The TOXU TX-CN-MMCX-001 is a MMCX RF switch connector designed for PCB edge mount applications. It combines a compact MMCX interface with RF switching functionality, providing a flexible connection solution for electronic and communication systems.

The connector features a straight jack female structure, 50Ω impedance design and gold-plated contacts, making it suitable for RF signal switching applications where compact size and reliable connection are required.

TOXU provides RF connector solutions together with RF cable assembly and antenna integration services to support customized RF hardware development from prototype validation to mass production.

Key Features

MMCX RF Interface

Designed with MMCX female interface for compact RF signal connection in space-limited electronic systems.

RF Switch Function

Supports RF signal path switching applications for communication modules, antenna systems and RF equipment.

PCB Edge Mount Structure

Designed for PCB edge installation to simplify integration into RF hardware systems.

Gold Plated Contact

Provides stable electrical contact and corrosion resistance for reliable RF connection.

Compact RF Design

Small form factor design suitable for portable communication devices and embedded RF applications.

Technical Specifications

Applications

The TX-CN-MMCX-001 MMCX RF switch connector is suitable for:

• GNSS Equipment

• Wireless Communication Devices

• RF Modules

• Antenna Systems

• Portable Electronic Devices

• RF Testing Equipment

System Integration

The MMCX RF switch connector can be integrated into RF hardware systems as a compact signal switching interface:

Antenna System

↓

RF Cable Assembly

↓

MMCX RF Switch Connector

↓

GNSS Module / Wireless Communication Module

TOXU supports connector matching, RF cable assembly development and antenna integration solutions for customized RF hardware applications.

Complete RF Hardware Solution Support

RF Connector Solutions

TOXU provides RF connector solutions including SMA, MMCX, MCX, N-Type, FAKRA, Mini FAKRA and customized RF connectors for different applications.

RF Cable Assembly

TOXU provides customized RF cable assemblies with connector matching, cable selection and assembly support.

Antenna Integration

TOXU supports RF interface integration between antennas, cables and connector systems.

Hardware Customization

TOXU supports prototype development, engineering validation and mass production for customized RF hardware projects.

Why Choose TOXU

TOXU provides integrated RF hardware solutions covering connectors, RF cable assemblies, antennas and customized hardware development.

With RF engineering capability and manufacturing support, TOXU helps customers complete projects from prototype validation to mass production.

FAQ

Q1: Can TOXU provide complete RF connection solutions?

Yes. TOXU supports RF connectors, RF cable assemblies, antenna integration and customized RF hardware solutions.

Q2: Can TOXU customize RF cable assemblies?

Yes. TOXU supports connector matching, cable selection and customized RF cable assembly production.

Q3: Can TOXU support OEM and ODM projects?

Yes. TOXU supports prototype development, engineering validation and mass production for customized RF hardware projects.

Q4: What products can TOXU provide besides connectors?

TOXU provides RF connectors, RF cable assemblies, antennas and integrated RF hardware solutions.
