Overview

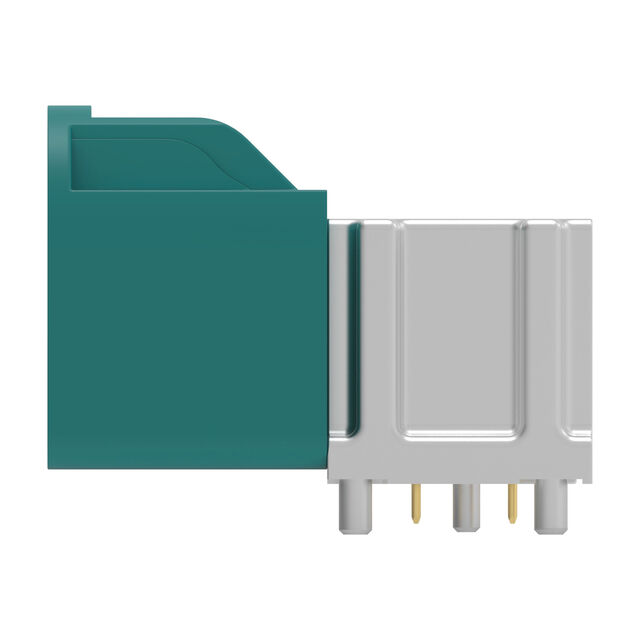

The TOXU TX-CN-MFAKRA-002 is a Mini FAKRA plug connector with housing designed for automotive RF cable-to-board applications.

The connector integrates Mini FAKRA interface technology, PCB mounting structure and housing protection, providing a compact RF connection solution for automotive electronic systems.

With 50Ω impedance and locking structure, the connector supports reliable signal connection between RF cable assemblies and PCB modules.

Key Features

Mini FAKRA Interface

Designed for Mini FAKRA automotive RF connector systems with compact mechanical design.

PCB Through-Hole Mounting

Supports PCB solder mounting for direct integration into electronic modules.

Right Angle Plug Structure

Provides right-angle orientation for space-saving PCB installation.

50Ω RF Performance

Supports standard 50Ω impedance for RF signal transmission.

Locking Mechanism

Provides secure mechanical connection through locking structure.

Technical Specifications

Applications

The TX-CN-MFAKRA-002 Mini FAKRA connector is suitable for:

• Automotive RF modules

• Vehicle communication systems

• Telematics equipment

• Navigation systems

• Electronic control modules

System Integration

The Mini FAKRA PCB connector is integrated into automotive electronic systems:

RF Antenna / Communication Module

↓

RF Cable Assembly

↓

Mini FAKRA PCB Connector

↓

Vehicle Electronic System

TOXU supports connector matching, RF cable assembly development and customized RF hardware integration.

Complete RF Hardware Solution Support

RF Connector Solutions

TOXU provides RF connector solutions including FAKRA, Mini FAKRA, HFM, H-MTD, SMA, MMCX, MCX and customized connectors.

RF Cable Assembly

TOXU provides customized RF cable assemblies with connector matching, cable selection and assembly support.

Antenna Integration

TOXU supports RF interface integration between antennas, cables and connector systems.

Hardware Customization

TOXU supports prototype development, engineering validation and mass production for customized RF hardware projects.

Why Choose TOXU

TOXU provides integrated RF hardware solutions covering connectors, RF cable assemblies, antennas and customized hardware development.

With RF engineering capability and manufacturing support, TOXU helps customers from prototype validation to mass production.

FAQ

Q1: Can TOXU provide complete RF connection solutions?

Yes. TOXU supports RF connectors, cable assemblies, antenna integration and customized RF hardware solutions.

Q2: Can TOXU customize RF cable assemblies?

Yes. TOXU supports connector matching, cable selection and customized RF cable assembly production.

Q3: Can TOXU support OEM and ODM projects?

Yes. TOXU supports prototype development, engineering validation and mass production.

Q4: What products can TOXU provide besides connectors?

TOXU provides RF connectors, RF cable assemblies, antennas and integrated RF hardware solutions.
