Overview

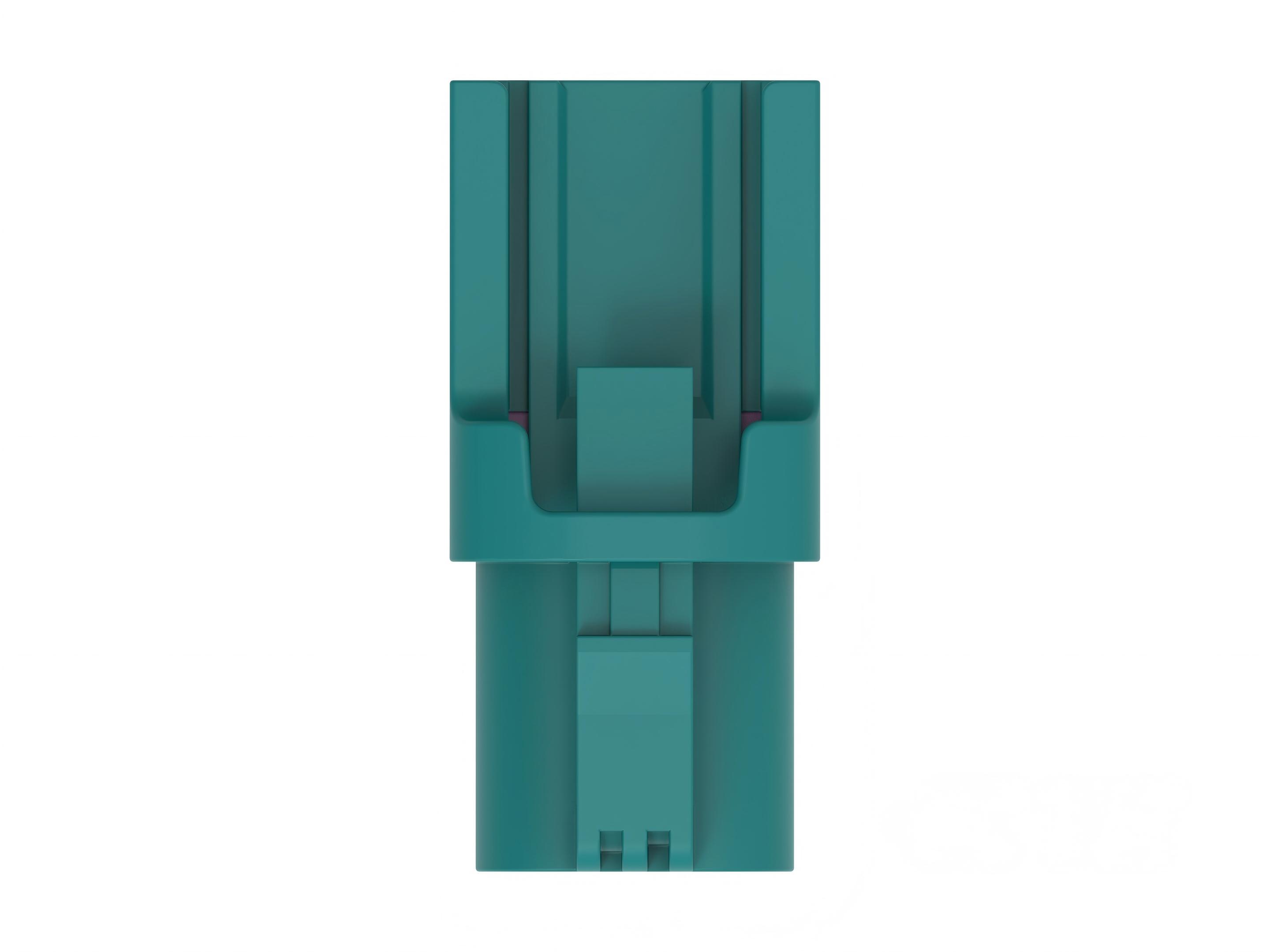

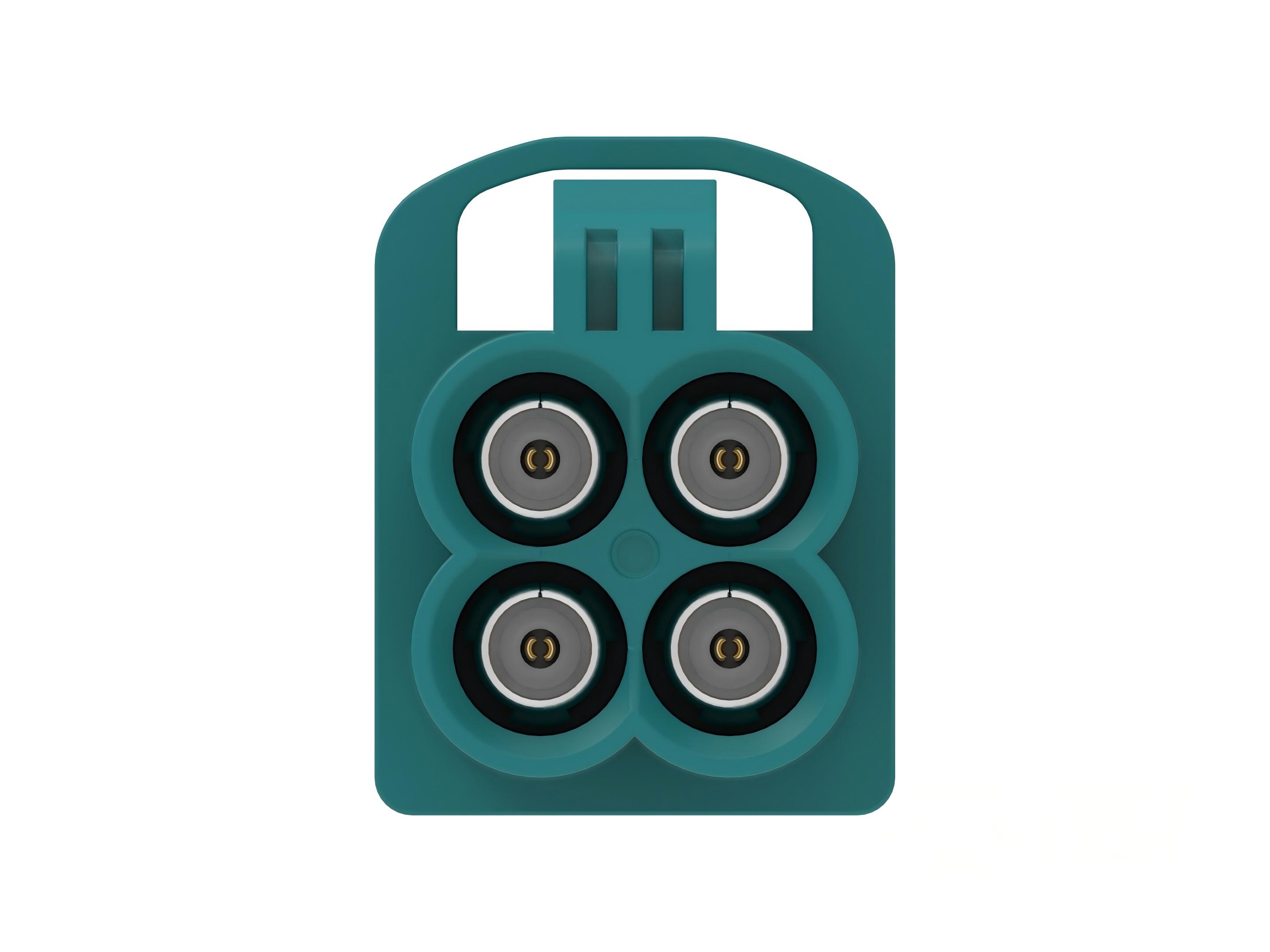

The TOXU TX-CN-MFAKRA-001 is a Mini FAKRA jack connector designed for automotive RF cable assembly applications. It provides a compact and reliable RF connection solution for vehicle communication systems and electronic modules.

Compared with traditional FAKRA connectors, Mini FAKRA provides a smaller connector form factor while maintaining reliable RF signal transmission performance, making it suitable for applications requiring compact installation space.

The connector features a 50Ω impedance design and supports RF cable assembly integration with RG174 cable, providing flexible connection options for automotive electronic systems.

Key Features

Mini FAKRA Interface

Designed for Mini FAKRA automotive RF connector systems with compact mechanical structure.

Jack Connector Design

Provides a reliable RF jack connection interface for automotive cable assemblies.

50Ω RF Connection

Supports standard 50Ω impedance for automotive RF signal transmission applications.

RG174 Cable Compatibility

Compatible with RG174 cable assemblies for flexible RF system integration.

Compact Automotive Design

Small form factor design helps meet space requirements in modern vehicle electronic systems.

Technical Specifications

Applications

The TX-CN-MFAKRA-001 Mini FAKRA connector is suitable for:

• Automotive RF cable assemblies

• Vehicle communication systems

• Telematics equipment

• Navigation systems

• Automotive electronic modules

System Integration

The Mini FAKRA connector is integrated into automotive RF systems as part of a complete connection solution:

RF Module / Antenna System

↓

RF Cable Assembly

↓

Mini FAKRA Connector

↓

Vehicle Electronic System

TOXU supports connector matching, RF cable assembly development and customized RF hardware integration according to customer requirements.

Complete RF Hardware Solution Support

RF Connector Solutions

TOXU provides RF connector solutions including FAKRA, Mini FAKRA, HFM, H-MTD, SMA, MMCX, MCX and customized connector products.

RF Cable Assembly

TOXU provides customized RF cable assemblies with connector matching, cable selection and assembly support.

Antenna Integration

TOXU supports RF interface integration between antennas, cables and connector systems.

Hardware Customization

TOXU supports prototype development, engineering validation and mass production for customized RF hardware projects.

Why Choose TOXU

TOXU provides integrated RF hardware solutions covering connectors, RF cable assemblies, antennas and customized hardware development.

With RF engineering capability and manufacturing support, TOXU helps customers from prototype development to mass production with flexible OEM and ODM services.

FAQ

Q1: Can TOXU provide complete RF connection solutions?

Yes. TOXU supports RF connectors, cable assemblies, antenna integration and customized RF hardware solutions.

Q2: Can TOXU customize RF cable assemblies?

Yes. TOXU supports connector matching, cable selection and customized RF cable assembly production.

Q3: Can TOXU support OEM and ODM projects?

Yes. TOXU supports prototype development, engineering validation and mass production for customized RF hardware projects.

Q4: What products can TOXU provide besides connectors?

TOXU provides RF connectors, RF cable assemblies, antennas and integrated RF hardware solutions.
