Overview

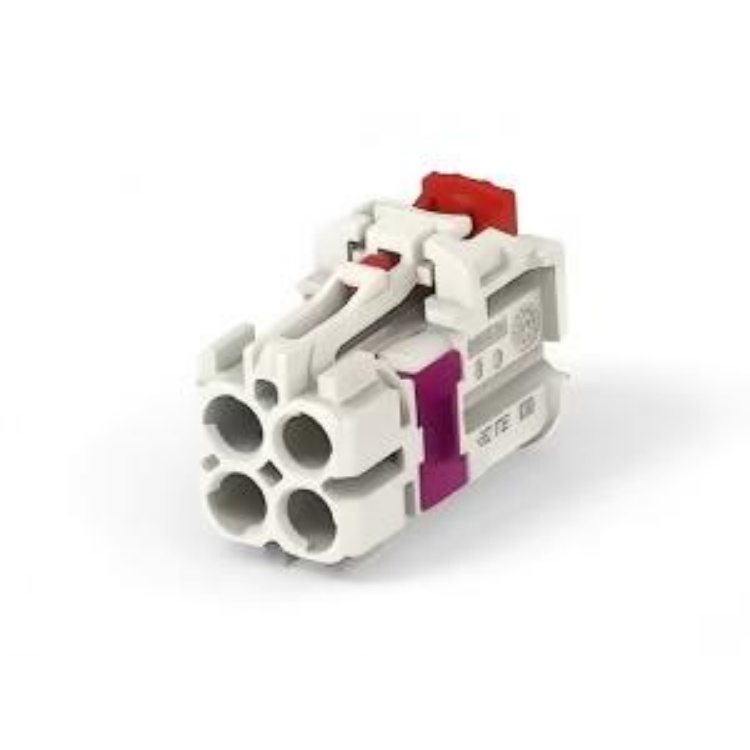

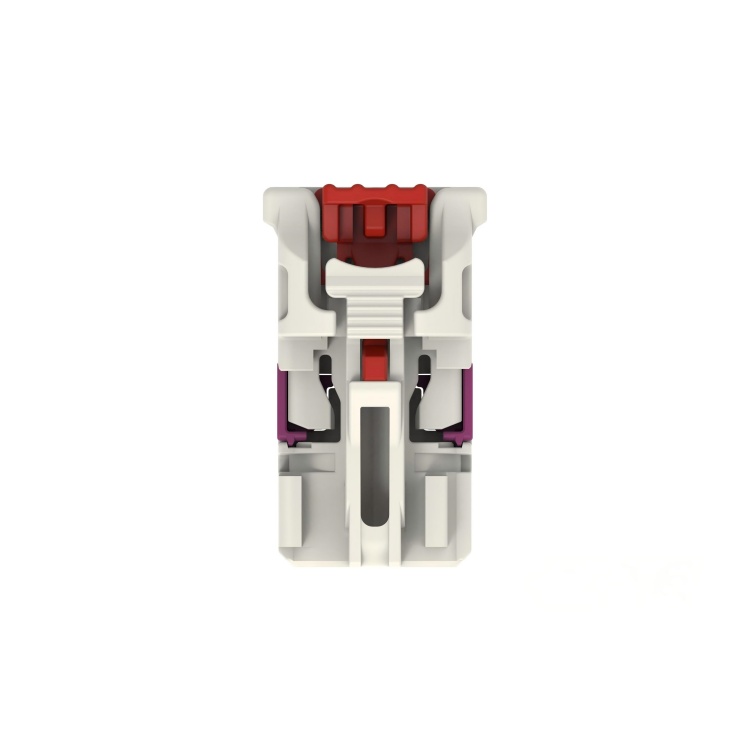

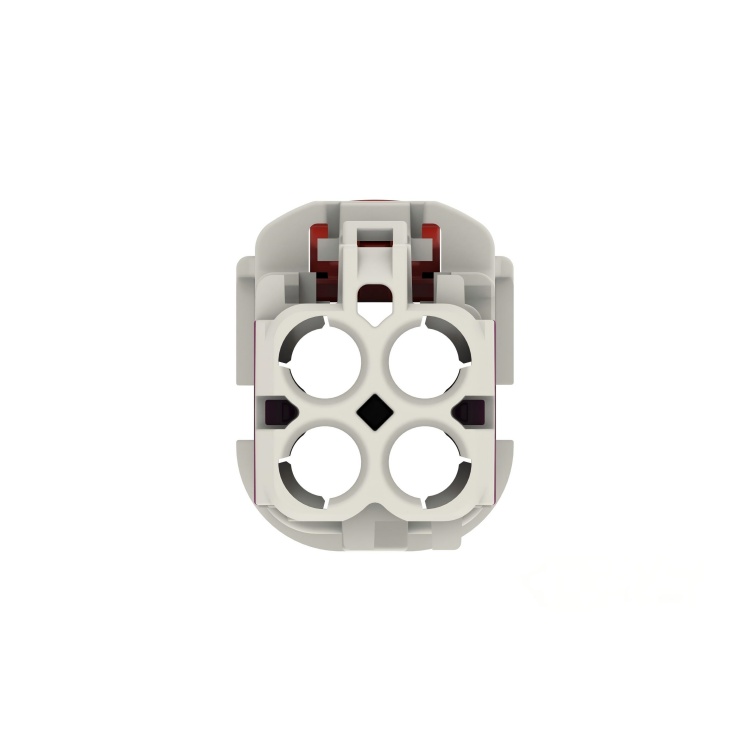

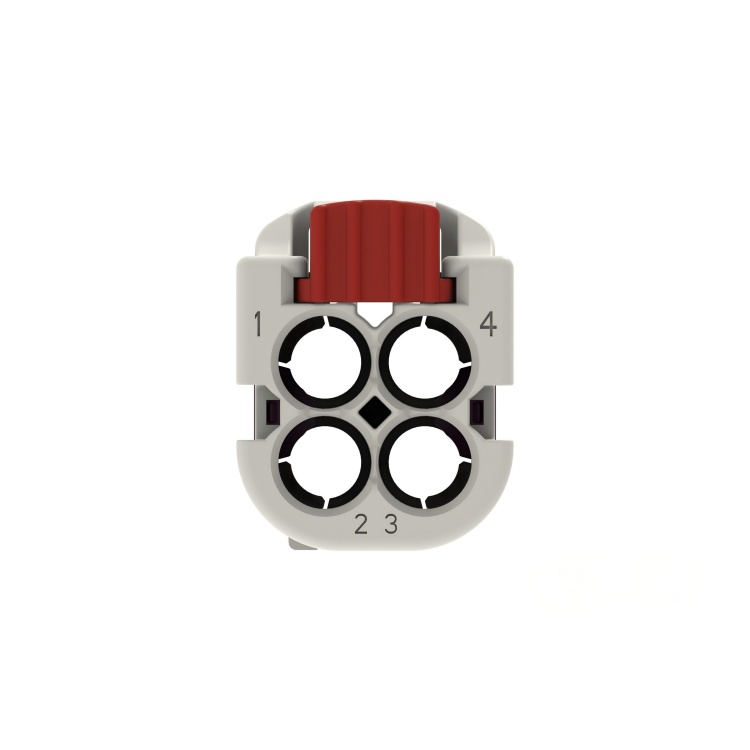

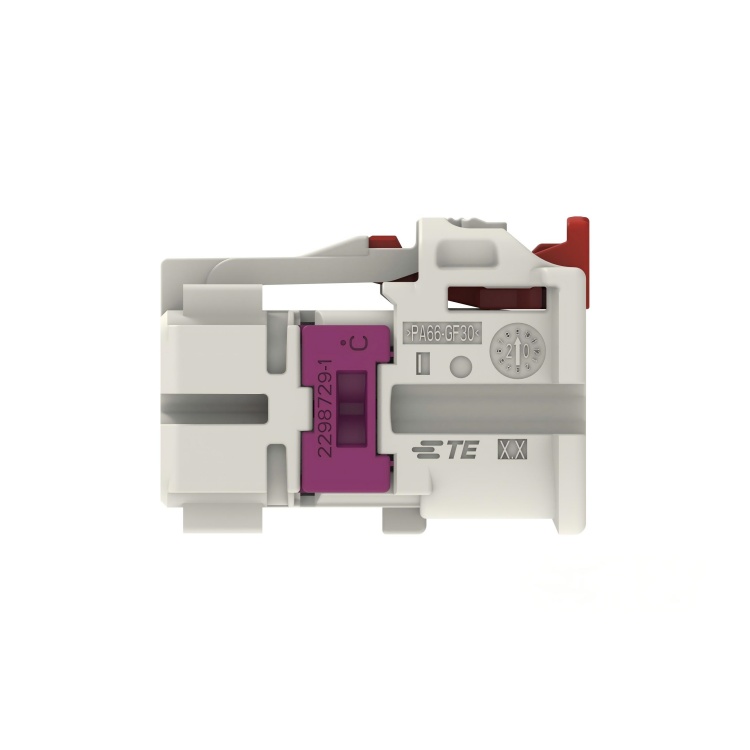

The TOXU TX-CN-MFAKRA-003 is a Mini FAKRA connector based on TE Connectivity 2-2298721-2. It is designed for automotive RF connection systems requiring compact size, reliable performance and efficient system integration.

Mini FAKRA connectors provide a reduced form factor compared with traditional FAKRA connectors while maintaining reliable RF connection capability, making them suitable for space-limited automotive electronic applications.

The connector is designed for automotive communication systems, RF modules and electronic equipment requiring Mini FAKRA connection technology.

Key Features

Mini FAKRA Interface

Designed for Mini FAKRA automotive connector systems with compact mechanical structure.

Compact Connector Design

Provides reduced size compared with traditional FAKRA connector solutions.

Automotive RF Application

Suitable for vehicle communication systems, RF modules and electronic equipment.

Reliable Mechanical Structure

Designed for stable connector integration in automotive environments.

TE Reference Compatibility

Based on TE Connectivity 2-2298721-2 connector specification.

Technical Specifications

Applications

The TX-CN-MFAKRA-003 Mini FAKRA connector is suitable for:

• Automotive RF systems

• Vehicle communication modules

• Telematics equipment

• Navigation systems

• Automotive electronic modules

System Integration

The Mini FAKRA connector is integrated into automotive electronic systems:

RF Module / Antenna System

↓

Mini FAKRA Connector

↓

PCB / Electronic Module

↓

Vehicle Communication System

TOXU supports connector matching, RF cable assembly development and customized RF hardware integration according to customer requirements.

Complete RF Hardware Solution Support

RF Connector Solutions

TOXU provides RF connector solutions including FAKRA, Mini FAKRA, HFM, H-MTD, SMA, MMCX, MCX and customized connector products.

RF Cable Assembly

TOXU provides customized RF cable assemblies with matched connectors, cable selection and assembly support.

Antenna Integration

TOXU supports RF interface integration between antennas, cables and connector systems.

Hardware Customization

TOXU supports prototype development, engineering validation and mass production for customized RF hardware projects.

Why Choose TOXU

TOXU provides integrated RF hardware solutions covering connectors, RF cable assemblies, antennas and customized hardware development.

With RF engineering capability and manufacturing support, TOXU helps customers from prototype development to mass production.

FAQ

Q1: Can TOXU provide complete RF connection solutions?

Yes. TOXU supports RF connectors, cable assemblies, antenna integration and customized RF hardware solutions.

Q2: Can TOXU customize RF cable assemblies?

Yes. TOXU supports connector matching, cable selection and customized RF cable assembly production.

Q3: Can TOXU support OEM and ODM projects?

Yes. TOXU supports prototype development, engineering validation and mass production.

Q4: What products can TOXU provide besides connectors?

TOXU provides RF connectors, RF cable assemblies, antennas and integrated RF hardware solutions.
