Overview

The TOXU KC.CW.00344 is an RF coaxial cable assembly manufactured with an SMA Male connector on one end and a Right Angle MCX Male connector on the other end.

The assembly uses flexible RG174 coaxial cable and is designed to maintain a 50Ω characteristic impedance for dependable RF signal transmission. The right-angle MCX connector helps reduce installation space and supports compact equipment layouts.

This RF cable assembly is suitable for GNSS receivers, wireless communication equipment, embedded electronics, IoT devices, industrial control systems, and RF testing applications.

Key Features

SMA Male to Right Angle MCX Male Configuration

Combines a standard SMA interface with a compact right-angle MCX connection for flexible RF system integration.

Flexible RG174 Coaxial Cable

The RG174 cable provides good flexibility for routing inside compact electronic equipment and communication systems.

Stable 50Ω RF Transmission

Designed with a standard 50Ω impedance to support reliable signal transmission and proper matching between RF devices.

Right-Angle Space-Saving Design

The right-angle MCX connector helps reduce cable bending and installation space in equipment with limited internal clearance.

Custom RF Cable Assembly Service

TOXU supports customized cable lengths, connector orientations, cable types, labels, heat-shrink tubing, and packaging according to project requirements.

Prototype and Mass Production Support

Samples can be provided for testing and validation before moving to stable batch production.

Technical Specifications

Dimension Drawing

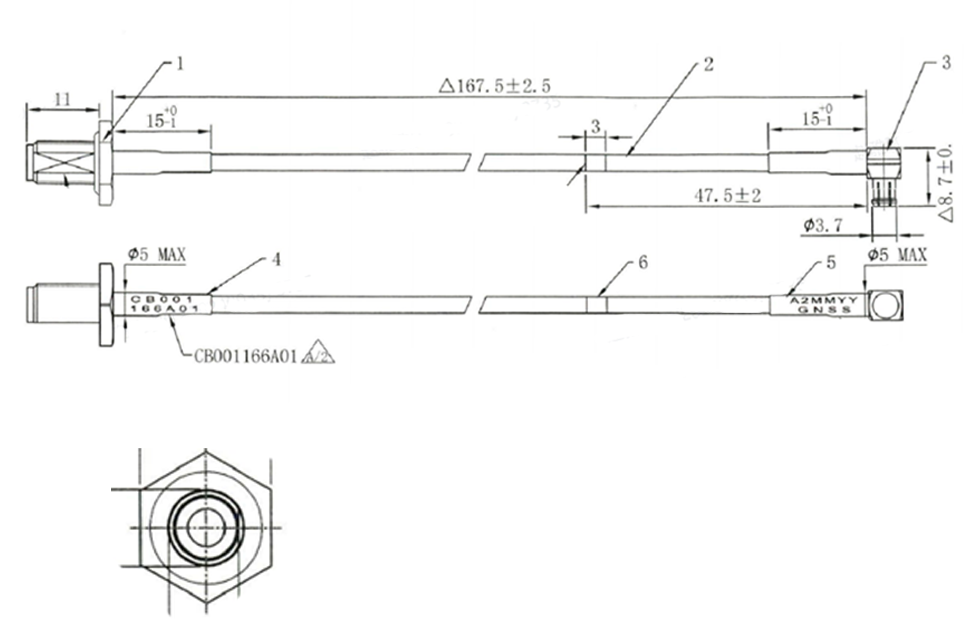

The standard cable length of the KC.CW.00344 is 167.5mm. Please refer to the product drawing for detailed connector dimensions and cable length definition.

Customized cable lengths and connector orientations are available according to equipment installation requirements.

Applications

● GNSS receivers and positioning equipment

● Wireless communication equipment

● IoT devices and embedded electronics

● Industrial control systems

● RF testing and measurement equipment

● Antenna and communication module connections

● Navigation and telematics devices

System Integration

The KC.CW.00344 can be used as an RF interconnection component between an external antenna and an internal communication or positioning device.

External Antenna

↓

SMA Male Interface

↓

RG174 RF Coaxial Cable Assembly

↓

Right Angle MCX Male Interface

↓

GNSS Receiver / Wireless Module / RF Device

This configuration supports compact installation while maintaining reliable RF signal transmission between system components.

Complete RF Hardware Solution Support

RF Cable Assembly

TOXU provides customized RF coaxial cable assemblies using RG174, RG178, RG316, RF1.13, RF0.81, 1.37mm, 1.48mm, and other cable types.

RF Connector Options

Available connector options include SMA, MCX, MMCX, SMB, BNC, N Type, TNC, FAKRA, Mini FAKRA, I-PEX-compatible interfaces, and other RF connector combinations.

Antenna Integration

TOXU can provide matched GNSS antennas, LTE antennas, Wi-Fi antennas, RF connectors, adapters, and cable assemblies for complete RF hardware integration.

OEM Manufacturing Support

Our service covers prototype development, engineering validation, sample testing, production preparation, and stable mass production.

Why Choose TOXU

Professional RF Cable Assembly Manufacturer

TOXU focuses on RF cable assemblies, antennas, RF connectors, and communication hardware for industrial and OEM applications.

Connector Matching Capability

Our engineering team can help select suitable connector combinations, cable types, and installation orientations according to the customer’s equipment.

Customized Manufacturing

Cable length, connector type, cable material, stripping dimensions, labeling, heat-shrink tubing, and packaging can be customized.

RF and Antenna Integration

In addition to cable assemblies, TOXU can provide antennas, connectors, adapters, GNSS modules, and related RF hardware.

Prototype to Mass Production

We support sample production, testing, technical confirmation, and stable batch manufacturing for long-term OEM projects.

Quality Management

TOXU operates under IATF 16949 and ISO 9001 quality management systems to support consistent production and quality control.

FAQ

Q1: Can TOXU customize the cable length?

Yes. The standard length of this model is 167.5mm, and other cable lengths can be produced according to your drawing or installation requirements.

Q2: Can the connector combination be changed?

Yes. We can provide different connector combinations, including SMA, MCX, MMCX, SMB, FAKRA, Mini FAKRA, BNC, N Type, TNC, and I-PEX-compatible interfaces.

Q3: Can the MCX connector orientation be customized?

Yes. Straight and right-angle connector options can be selected according to equipment installation space.

Q4: Can samples be provided before mass production?

Yes. Samples can be produced for dimensional inspection, installation verification, and RF performance testing before batch production.

Q5: Does TOXU provide OEM and ODM services?

Yes. TOXU supports customized RF cable assemblies, antennas, RF connectors, labels, packaging, and complete RF hardware integration.

Q6: What information is required for a quotation?

Please provide the connector types, cable type, cable length, quantity, drawing, operating frequency, and any special assembly or packaging requirements.
