In the realm of global positioning systems (GPS), where accuracy and reliability are paramount, the Passive GPS Ceramic Antenna emerges as a compact yet high-performing solution. Designed to meet the needs of various applications, from portable navigation devices to industrial tracking systems, this antenna combines efficient design with robust functionality, ensuring consistent performance in diverse environments.

The antenna features Pin Feed (Passive) connectivity, which eliminates the requirement for an external power source. This not only simplifies its integration into a wide range of devices but also ensures low energy consumption, making it an excellent choice for battery-operated gadgets like handheld GPS receivers, fitness trackers, and small drones. Its Ceramic Patch Antenna material is a key advantage, as ceramic’s high dielectric constant allows for a compact form without compromising signal reception capabilities, ensuring stable operation across relevant frequencies.

When it comes to frequency coverage, this antenna is well-equipped to handle critical bands including GPS L1, GPS L5, BeiDou B1, and GLONASS G1. This broad range ensures that it can tap into multiple satellite systems, enhancing signal availability even in challenging locations such as urban areas with tall buildings or regions with dense tree cover. By leveraging these frequencies, the antenna provides reliable positioning data, making it suitable for both consumer and professional applications.

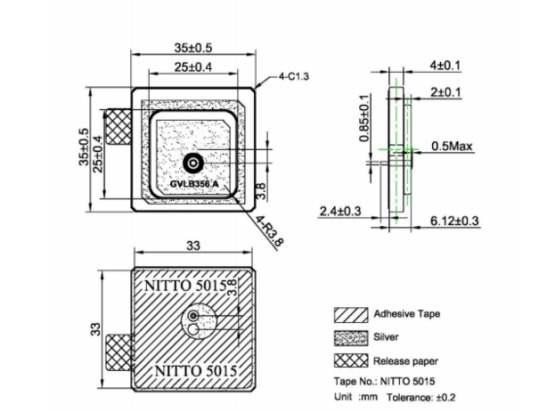

With Patch Dimensions of 35356.12 mm and a weight of 26g, the antenna is highly portable and easy to install. Its small size allows it to fit into tight spaces within various devices, while its lightweight design ensures that it doesn’t add unnecessary bulk, which is particularly important for portable equipment. Paired with a 70*70 mm Ground Plane Size, it achieves optimal signal stability, reducing interference and ensuring consistent performance.

Performance metrics highlight the antenna’s capabilities. It boasts a Peak Gain of up to 4.03 dBi and Efficiency reaching 79.93%, enabling it to capture and process weak signals effectively, even from satellites at low elevations. The RHCP (Right-Hand Circular Polarization) helps minimize multipath interference, a common issue in environments with reflective surfaces, while the Omnidirectional Radiation Pattern ensures 360-degree signal coverage, leaving no blind spots.

Built to withstand harsh conditions, the antenna operates within a Temperature range of -40°C to +85°C, making it suitable for use in extreme climates, from freezing winters to scorching summers. Its VSWR of 2:1 ~ 4:1 (depending on band) ensures efficient power transfer, minimizing signal loss and maximizing receiver sensitivity. Additionally, the Axial Ratio of 11.2-17.04 dB contributes to stable signal reception, further enhancing its reliability.

the Passive GPS Ceramic Antenna is a compact, efficient, and reliable choice for a wide range of GPS applications. Its passive design, broad frequency coverage, and robust performance make it an ideal component for devices that require accurate and consistent positioning, proving its value in both consumer and industrial settings.
