Overview

The TOXU KC.CW.00295 is a high-quality SMA Female Bulkhead to I-PEX MHF1 RF cable assembly designed for compact wireless devices and RF communication systems. It combines an SMA bulkhead connector with an I-PEX MHF1 connector through a flexible RF1.13 low-loss coaxial cable.

With a characteristic impedance of 50Ω and operating frequency up to 6GHz, this cable assembly provides reliable RF performance for wireless communication modules, embedded systems and antenna integration.

Key Features

SMA Female Bulkhead Connector

Provides secure panel mounting for external RF antenna connections.

I-PEX MHF1 Connector

Compatible with miniature RF modules and embedded wireless devices.

RF1.13 Low-Loss Cable

Offers low insertion loss and excellent flexibility for compact installations.

Wide Frequency Range

Supports RF applications from DC to 6GHz with stable electrical performance.

Custom Manufacturing

Cable length, connector type and cable specification can all be customized.

Reliable OEM Production

Manufactured under strict quality control for prototypes and volume production.

Technical Specifications

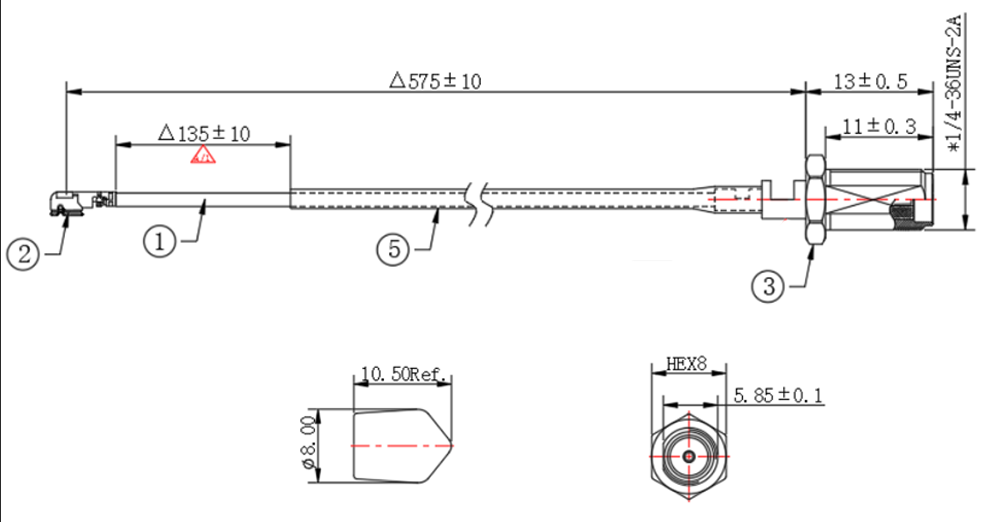

Dimension Drawing

Detailed mechanical drawings are provided showing overall cable length, connector dimensions and assembly structure for accurate system integration.

Applications

● Wi-Fi Modules

● Bluetooth Modules

● GNSS Receivers

● Cellular Modules

● IoT Devices

● Embedded RF Systems

System Integration

External SMA Antenna

↓

KC.CW.00295 RF Cable Assembly

↓

I-PEX MHF1 RF Module

↓

Wireless Communication System

Complete RF Hardware Solution Support

Customized RF Cable Assemblies

TOXU provides customized RF cable assemblies with various cable types, connector combinations and lengths.

Connector Options

Support for SMA, I-PEX, MMCX, MCX, U.FL, FAKRA, Mini FAKRA, SMB, BNC, TNC and customized RF connectors.

Integrated RF Hardware

Complete RF interconnection solutions including RF cable assemblies, antennas and connectors.

OEM & ODM Manufacturing

Engineering support from prototype development through volume production.

Why Choose TOXU

TOXU specializes in RF cable assemblies, RF connectors and antenna solutions for wireless communication, automotive electronics and IoT industries.

Our experienced engineering team provides customized RF interconnection solutions with stable quality and fast delivery.

FAQ

Q1: Can cable length be customized?

Yes. We support custom cable lengths based on customer requirements.

Q2: Can different connector combinations be supplied?

Yes. Multiple RF connector options are available according to your application.

Q3: Is OEM production available?

Yes. TOXU provides OEM and ODM manufacturing services.

Q4: Besides RF cable assemblies, what other products does TOXU manufacture?

We also manufacture RF connectors, GNSS antennas, communication antennas and customized RF hardware solutions.
