Overview

The TOXU KC.CW.00260 is a compact RF cable assembly featuring an SMA Female Bulkhead connector and an I-PEX MHF1 connector connected by a 120mm RF0.81 coaxial cable. It is designed for compact wireless devices where stable RF transmission and reliable mechanical performance are required.

Supporting frequencies up to 6GHz with a 50Ω characteristic impedance, this cable assembly is suitable for wireless communication modules, GNSS receivers, IoT terminals, Bluetooth devices and Wi-Fi applications.

Key Features

SMA Female Bulkhead Connector

Provides secure panel mounting for external RF antenna interfaces.

I-PEX MHF1 Connector

Compatible with miniature RF modules and internal antenna connections.

RF0.81 Ultra-Thin Cable

Offers excellent flexibility while maintaining low insertion loss.

Excellent RF Performance

Supports DC to 6GHz with low VSWR and stable impedance.

Compact Design

Ideal for embedded devices with limited installation space.

OEM & ODM Service

Supports customized connector combinations, cable types and lengths.

Technical Specifications

Dimension Drawing

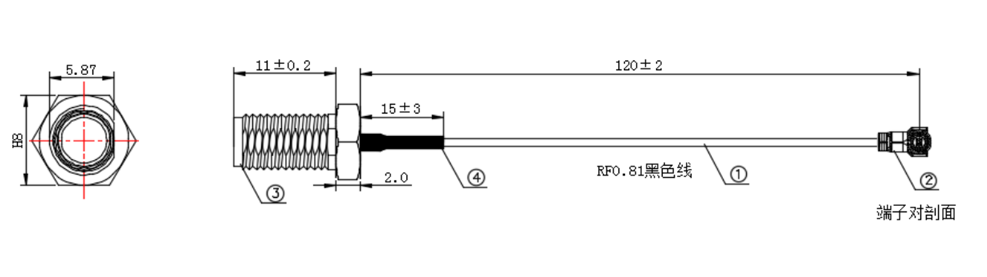

A detailed mechanical drawing is provided, showing the connector dimensions, cable length and assembly structure to facilitate product integration.

Applications

● Wi-Fi Modules

● Bluetooth Modules

● GNSS Receivers

● Cellular Communication Modules

● IoT Devices

● Embedded RF Equipment

System Integration

External SMA Antenna

↓

KC.CW.00260 RF Cable Assembly

↓

I-PEX MHF1 RF Module

↓

Wireless Communication Device

Complete RF Hardware Solution Support

Customized RF Cable Assemblies

TOXU manufactures RF cable assemblies with customized connector combinations, cable lengths and cable types for various RF applications.

Connector Options

Available with SMA, I-PEX, MMCX, MCX, SMB, FAKRA, Mini FAKRA, N Type, U.FL, BNC and TNC connectors.

Integrated RF Hardware

Complete solutions including RF cable assemblies, RF connectors and communication antennas.

OEM & ODM Manufacturing

Engineering support from prototype development through mass production.

Why Choose TOXU

TOXU specializes in RF cable assemblies, RF connectors and antenna solutions for wireless communication, automotive electronics and IoT industries.

Our engineering team delivers high-quality customized RF interconnection products with stable quality and fast lead times.
