Overview

The TOXU KC.CW.00368 is an I-PEX MHF1 to Open End RF Cable Assembly developed for Bluetooth modules, Wi-Fi modules, embedded RF devices and compact wireless communication equipment.

This assembly combines a miniature I-PEX MHF1 connector with RF1.37 coaxial cable and an open-end stripped cable for direct PCB soldering or customized RF integration.

Its lightweight construction and flexible cable design make it suitable for compact electronic devices requiring stable RF connectivity.

Key Features

I-PEX MHF1 Interface

Compact I-PEX MHF1 connector designed for embedded RF modules and miniature wireless devices.

Open-End Design

Stripped cable end allows direct soldering to PCB assemblies or customized RF circuits.

RF1.37 Miniature Cable

50Ω RF1.37 coaxial cable provides flexible routing with stable RF transmission.

Compact Integration

Suitable for space-limited electronic products and embedded wireless applications.

Customized Cable Assembly

Supports customized cable lengths, stripping dimensions and connector configurations.

OEM Manufacturing Support

Supports prototype development, engineering validation and mass production.

Technical Specifications

Dimension Drawing

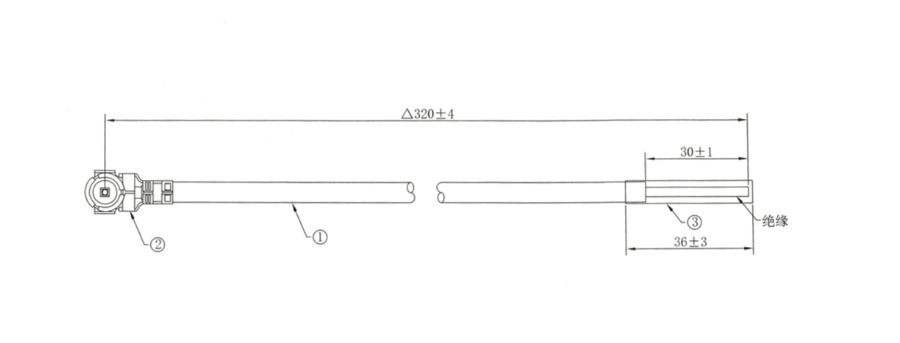

The engineering drawing illustrates the overall cable length, stripping dimensions and connector structure for easy PCB integration.

Overall Cable Length: 320 ± 4 mm

Stripped Length: 30 ± 1 mm

Cable Type: RF1.37 Coaxial Cable

Applications

● Bluetooth modules

● Wi-Fi modules

● Embedded RF devices

● Wireless communication equipment

● IoT devices

● PCB RF integration

System Integration

Wireless Antenna

↓

I-PEX MHF1 RF Cable Assembly

↓

Open-End Solder Connection

↓

Bluetooth / Wi-Fi Module

↓

Electronic System

Complete RF Hardware Solution Support

RF Cable Assembly Solutions

TOXU provides customized RF cable assemblies with various connector combinations, cable types and cable lengths for embedded RF applications.

RF Connector Solutions

TOXU supplies I-PEX, MHF, SMA, MMCX, MCX, FAKRA, Mini FAKRA and customized RF connector solutions.

Antenna Integration

TOXU supports integration between RF cables, connectors and embedded antenna systems.

Hardware Customization

From prototype development to volume production, TOXU provides flexible OEM and ODM manufacturing services.

Why Choose TOXU

TOXU provides integrated RF hardware solutions covering RF cable assemblies, RF connectors, antennas and customized RF development.

Our engineering team supports customers from prototype validation to mass production with consistent quality and fast delivery.
