Overview

The TOXU KC.CW.00408 is a high-performance I-PEX MHF1 Male to I-PEX MHF1 Male RF cable assembly designed for compact wireless communication equipment, embedded RF modules and internal antenna connections.

Using RF1.37 low-loss coaxial cable, the assembly delivers reliable RF performance while maintaining excellent flexibility for compact installations.

Operating from DC to 6GHz with a 50Ω characteristic impedance, it is suitable for Wi-Fi, Bluetooth, GNSS and other RF communication systems.

Key Features

I-PEX MHF1 to I-PEX MHF1 Interface

Provides direct RF connection between miniature wireless modules and internal RF devices.

RF1.37 Low Loss Cable

High-quality RF1.37 miniature coaxial cable minimizes insertion loss while maintaining flexibility.

Compact Cable Assembly

Suitable for embedded electronic products where installation space is limited.

Stable RF Performance

Designed with 50Ω impedance and operating frequency up to 6GHz.

Custom Manufacturing

Supports customized cable length, connector orientation and cable specifications.

Reliable OEM Production

Manufactured under strict quality control for prototype and mass production.

Technical Specifications

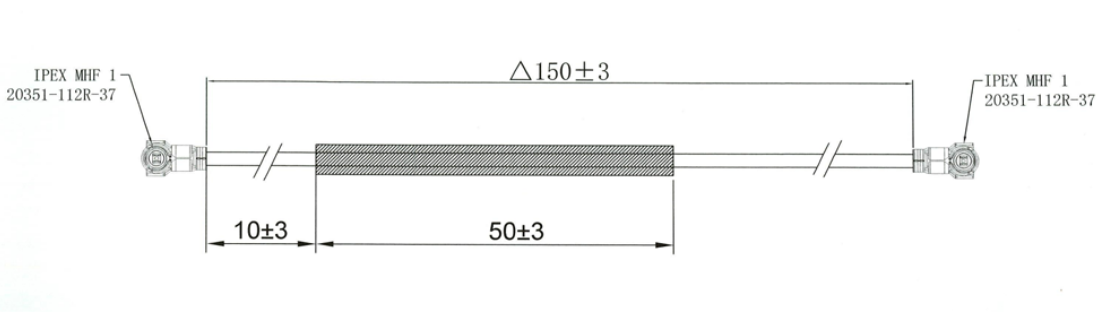

Dimension Drawing

Detailed engineering drawings are provided, showing connector dimensions, overall cable length and protective foam positioning for accurate mechanical integration.

Applications

● Wi-Fi Modules

● Bluetooth Modules

● GNSS Modules

● Embedded RF Devices

● IoT Equipment

● Wireless Communication Systems

System Integration

Wireless Module

↓

I-PEX MHF1 RF Cable Assembly

↓

Internal RF Connection

↓

Embedded Communication System

Complete RF Hardware Solution Support

Customized RF Cable Assemblies

TOXU manufactures RF cable assemblies with customized connectors, cable lengths and low-loss coaxial cable options.

RF Connector Solutions

Support for I-PEX, SMA, MMCX, MCX, FAKRA, Mini FAKRA, SMB, BNC, TNC and customized RF connectors.

Integrated RF Hardware

Complete RF interconnection solutions including cable assemblies, antennas and RF connectors.

OEM & ODM Manufacturing

Engineering support from prototype verification through high-volume production.

Why Choose TOXU

TOXU specializes in RF cable assemblies, RF connectors and antenna solutions for wireless communication industries.

Our engineering team supports customized RF interconnection solutions with stable quality and flexible manufacturing capabilities.

FAQ

Q1: Can cable length be customized?

Yes. Custom cable lengths are available according to customer requirements.

Q2: Can different I-PEX connector generations be supplied?

Yes. TOXU supports multiple I-PEX connector generations and customized RF connector combinations.

Q3: Can TOXU provide OEM production?

Yes. We provide prototype development, engineering support and volume manufacturing.

Q4: Besides RF cable assemblies, what products does TOXU offer?

TOXU also manufactures RF connectors, GNSS antennas, communication antennas and complete RF hardware solutions.
