Overview

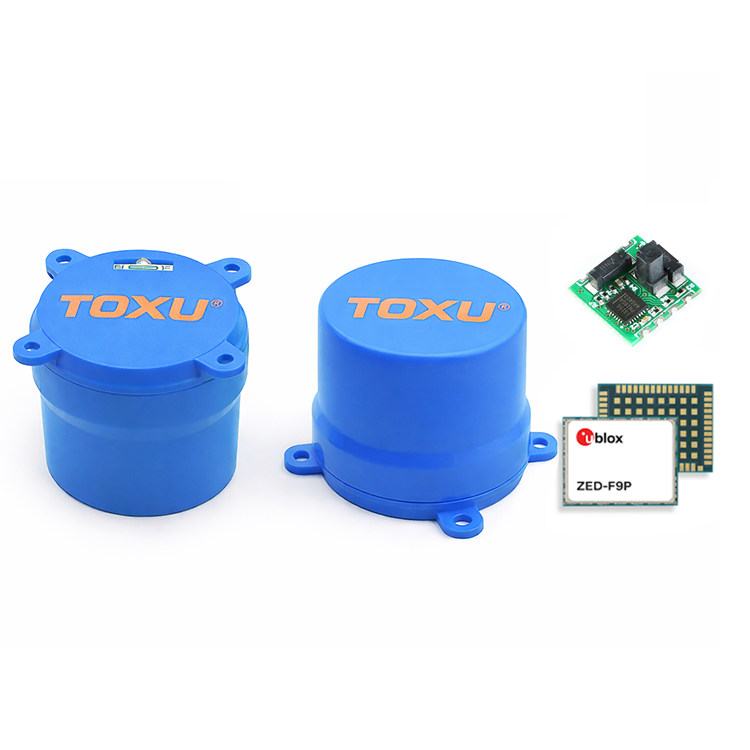

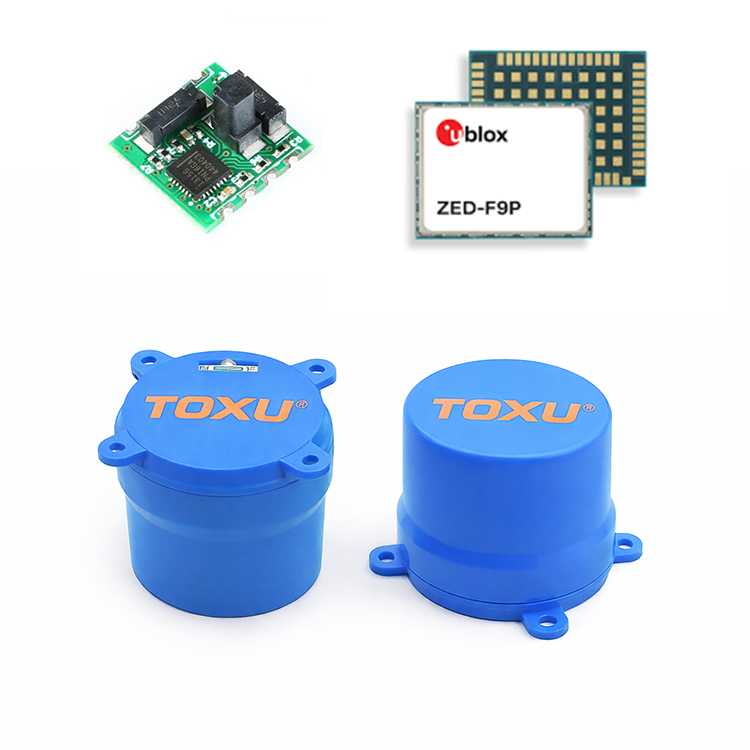

The TOXU TX-AK712RM is a dual-band GNSS RTK receiver module based on the u-blox ZED-F9P chipset, integrated with an RM3100 electronic compass for accurate positioning and heading information.

The module supports dual-band GNSS signals on L1 and L2 frequencies and is compatible with multiple satellite navigation systems including GPS, BDS, GLONASS, Galileo, QZSS and SBAS.

By combining RTK GNSS positioning performance with electronic compass heading output, TX-AK712RM is suitable for surveying, robotics, mapping, precision navigation and OEM integration applications requiring both position and orientation data.

Key Features

u-blox ZED-F9P GNSS Chipset

Based on the u-blox ZED-F9P GNSS platform, providing reliable dual-band RTK positioning performance.

RM3100 Electronic Compass Integration

Integrated RM3100 electronic compass provides heading information for navigation systems requiring orientation measurement.

Dual-Band GNSS Reception

Supports L1 and L2 GNSS bands for improved positioning reliability and RTK performance.

Multi-Constellation Support

Compatible with GPS, BDS, GLONASS, Galileo, QZSS and SBAS satellite navigation systems.

RTK Positioning Support

Supports RTK positioning through external correction data and provides carrier phase RAWX output.

Low Power OEM Integration

With compact size and low power consumption, TX-AK712RM is suitable for embedded positioning and navigation systems.

Technical Specifications

Applications

Surveying and Mapping

Provides RTK positioning and heading information for surveying equipment and mapping systems.

Robotics

Suitable for autonomous robots requiring both positioning and orientation information.

Precision Navigation

Supports navigation systems requiring GNSS positioning combined with heading output.

OEM Integration

Designed for developers and system integrators building embedded positioning products.

System Integration

GNSS Antenna → TX-AK712RM RTK GNSS Module → Controller → Navigation System

TX-AK712RM integrates u-blox ZED-F9P RTK positioning capability and RM3100 electronic compass heading information into a compact OEM module.

Why Choose TOXU

TOXU provides integrated GNSS positioning solutions including RTK modules, GNSS antennas, RF cable assemblies and customized navigation hardware solutions.

With professional RF engineering and manufacturing capability, TOXU supports prototype development, customization and mass production for industrial positioning applications.

FAQ - Frequently Asked Questions

Q1: Which GNSS module is used in TX-AK712RM?

TX-AK712RM uses the u-blox ZED-F9P GNSS module.

Q2: Does TX-AK712RM support heading output?

Yes. TX-AK712RM integrates an RM3100 electronic compass to provide heading information.

Q3: What applications are suitable for TX-AK712RM?

TX-AK712RM is suitable for surveying, robotics, mapping, precision navigation and OEM positioning applications.
