Overview

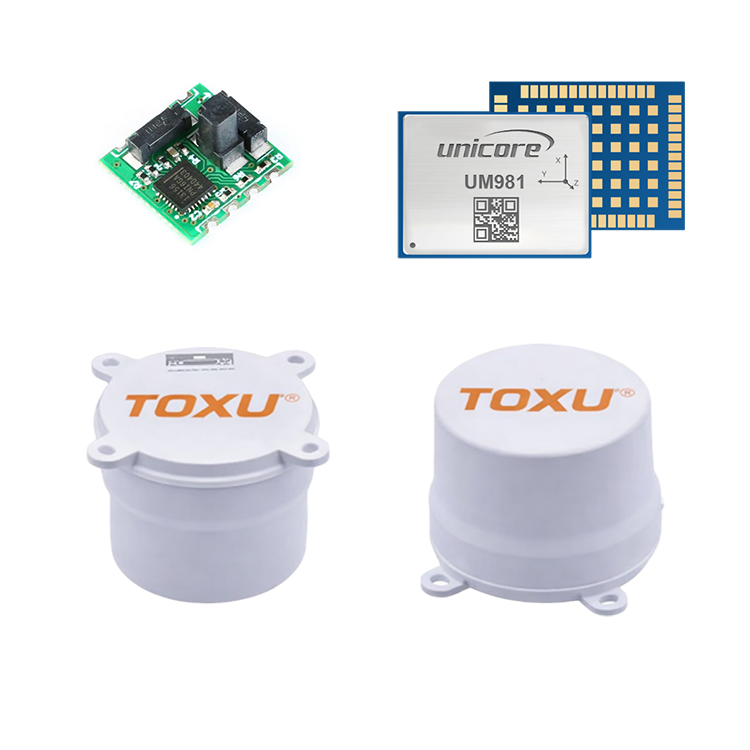

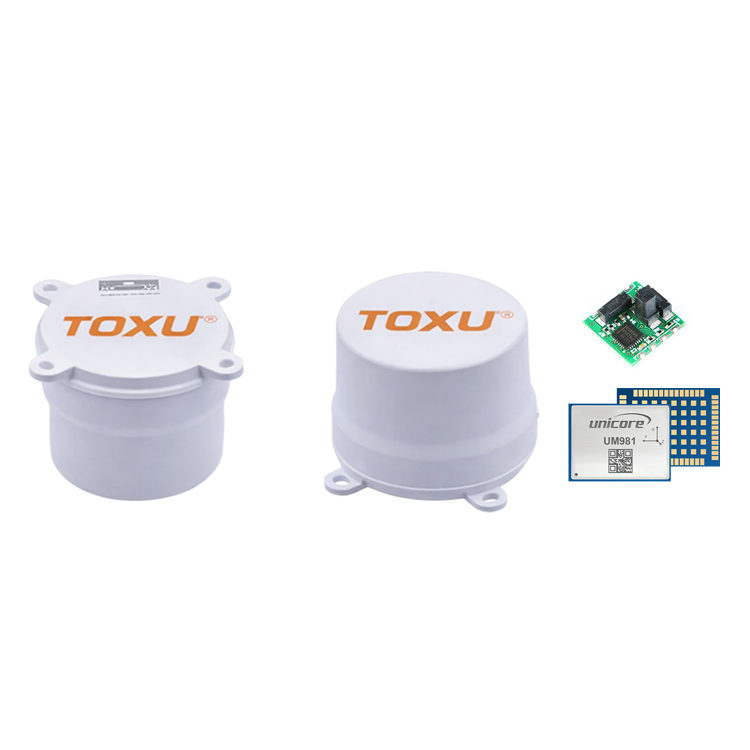

The TOXU TX-AK723RM is an integrated RTK GNSS navigation module based on the Unicore UM981 high-performance GNSS chipset with built-in RM3100 digital compass.

The module supports multi-constellation and multi-frequency GNSS signals including GPS, BDS, GLONASS, Galileo, QZSS, NavIC and SBAS across L1, L2 and L5 frequency bands, providing stable positioning performance and RAW carrier phase output.

With integrated electronic compass and inertial navigation capability, TX-AK723RM provides reliable heading and positioning information for robotics, autonomous navigation systems, UAV platforms, intelligent vehicles, and precision agriculture equipment.

Key Features

Unicore UM981 GNSS Chipset

Based on the Unicore UM981 multi-frequency GNSS chipset with high-performance satellite signal processing capability.

Integrated RM3100 Digital Compass

Built-in RM3100 electronic compass provides heading information for navigation applications requiring orientation data.

Multi-Constellation GNSS Support

Supports GPS, BDS, GLONASS, Galileo, QZSS, NavIC and SBAS satellite systems for global positioning applications.

GNSS/INS Integrated Navigation

Supports inertial navigation function with continuous positioning capability when GNSS signals are temporarily unavailable.

High Update Rate Support

Supports update rates up to 50 Hz for dynamic navigation applications.

Flexible Communication Interface

Supports TTL interface with NMEA 0183 and Unicore protocols for embedded system integration.

Technical Specifications

Applications

Autonomous Navigation Systems

Provides integrated positioning and heading information for autonomous vehicles and intelligent navigation platforms.

UAV Platforms

Suitable for unmanned aerial systems requiring RTK positioning and navigation orientation data.

Robotics

Supports outdoor robots and autonomous equipment requiring GNSS/INS navigation capability.

Precision Agriculture

Designed for agricultural machinery requiring accurate positioning and heading information.

System Integration

GNSS Antenna → TX-AK723RM RTK GNSS INS Module → Controller → Autonomous Navigation System

TX-AK723RM integrates GNSS positioning, heading measurement, and inertial navigation functions for simplified system integration.

Why Choose TOXU

TOXU provides integrated GNSS positioning solutions including RTK modules, GNSS antennas, RF cable assemblies, and customized navigation hardware solutions.

With professional RF engineering and manufacturing capability, TOXU supports prototype development, customization, and mass production for industrial positioning applications.

FAQ - Frequently Asked Questions

Q1: Which GNSS chipset is used in TX-AK723RM?

TX-AK723RM uses the Unicore UM981 high-performance GNSS chipset.

Q2: Does TX-AK723RM support heading information?

Yes. It integrates an RM3100 digital compass for heading measurement.

Q3: Does TX-AK723RM support inertial navigation?

Yes. TX-AK723RM supports inertial navigation function for maintaining positioning capability when GNSS signals are unavailable.
