Overview

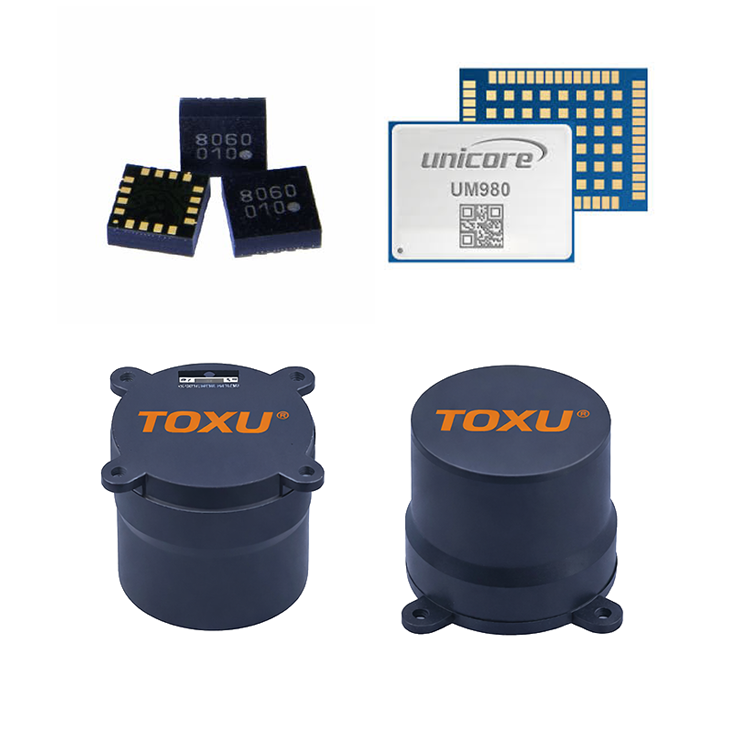

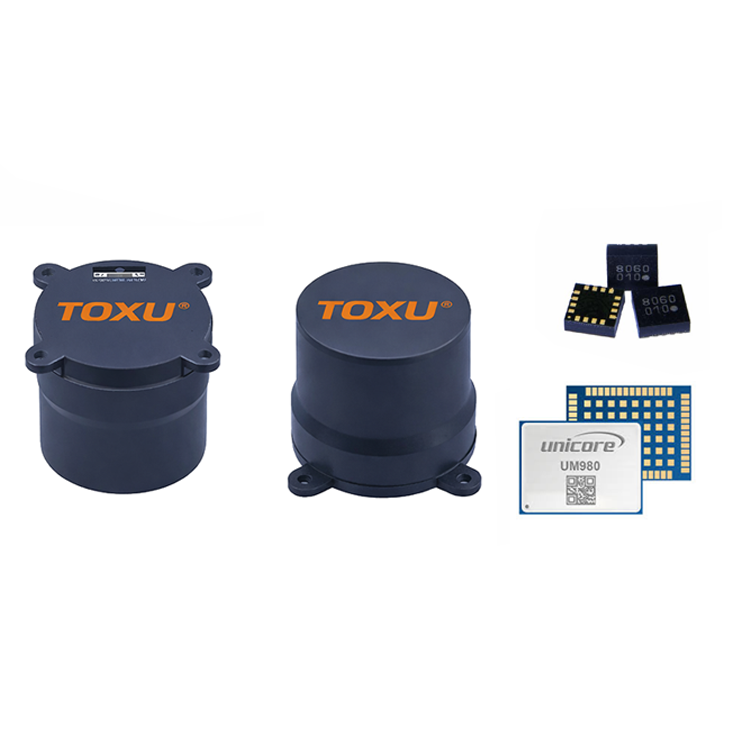

The TOXU TX-AK723T is a multi-band RTK GNSS positioning module based on the Unicore UM980 GNSS chipset with integrated IST8310 electronic compass.

The module supports multi-constellation and multi-frequency GNSS signals including GPS, BDS, GLONASS, Galileo, QZSS, NavIC and SBAS, covering L1, L2 and L5 frequency bands for stable positioning performance.

With built-in heading measurement, inertial navigation assistance, RAWX carrier phase output, and flexible communication interfaces, TX-AK723T is designed for surveying, robotics, autonomous navigation, precision agriculture, and embedded OEM positioning applications.

Key Features

Unicore UM980 GNSS Chipset

Based on the Unicore UM980 multi-frequency GNSS chipset for reliable satellite signal processing and RTK positioning.

Integrated IST8310 Electronic Compass

Built-in IST8310 digital compass provides heading and orientation information for navigation applications.

Multi-Constellation GNSS Support

Supports GPS, BDS, GLONASS, Galileo, QZSS, NavIC and SBAS satellite navigation systems.

RTK Positioning Capability

Supports RTK positioning with 0.8 cm + 1 ppm accuracy under supported correction conditions.

GNSS/INS Navigation Assistance

Provides inertial navigation assistance with positioning continuity when GNSS signals are temporarily unavailable.

High Update Rate Support

Supports configurable update rates from 0.25 Hz to 50 Hz for dynamic navigation applications.

Technical Specifications

Applications

Surveying Equipment

Suitable for surveying and mapping applications requiring RTK positioning and heading information.

Robotics Systems

Provides positioning and orientation information for autonomous robots and intelligent equipment.

Autonomous Navigation

Designed for autonomous platforms requiring continuous positioning capability.

Precision Agriculture

Supports agricultural machinery and precision farming systems requiring GNSS positioning and heading data.

System Integration

GNSS Antenna → TX-AK723T RTK GNSS Module → Controller → Autonomous Navigation System

TX-AK723T integrates GNSS positioning, heading measurement, and inertial navigation assistance for simplified system integration.

Why Choose TOXU

TOXU provides integrated GNSS positioning solutions including RTK modules, GNSS antennas, RF cable assemblies, and customized navigation hardware solutions.

With professional RF engineering and manufacturing capability, TOXU supports prototype development, customization, and mass production for industrial positioning applications.

FAQ - Frequently Asked Questions

Q1: Which GNSS chipset is used in TX-AK723T?

TX-AK723T uses the Unicore UM980 multi-frequency GNSS chipset.

Q2: Does TX-AK723T include an electronic compass?

Yes. TX-AK723T integrates an IST8310 digital compass for heading information.

Q3: What applications are suitable for TX-AK723T?

It is suitable for surveying, robotics, autonomous navigation, precision agriculture, and OEM positioning systems.
