Overview

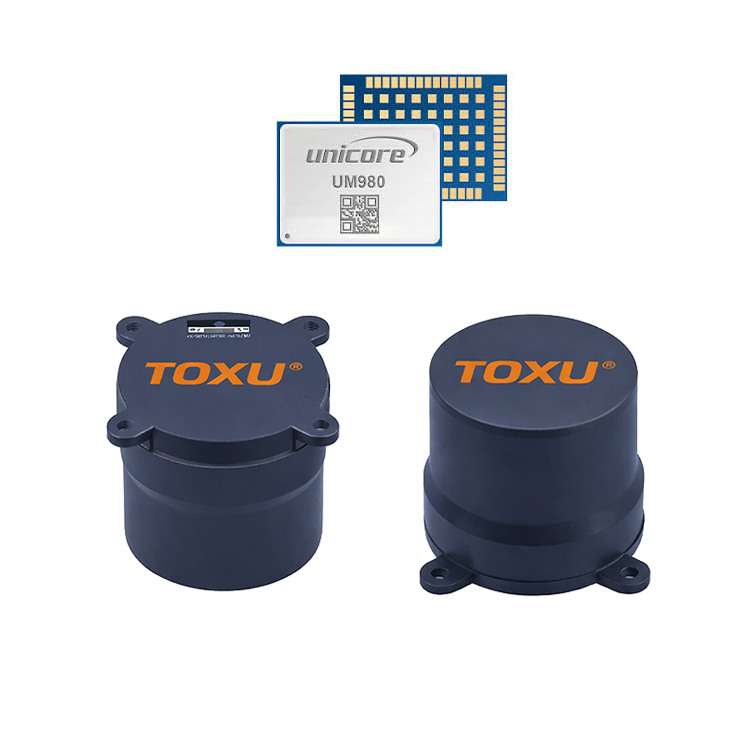

The TOXU TX-AK713 is a compact RTK GNSS positioning module powered by the Unicore UM980 multi-frequency GNSS chipset. It integrates advanced GNSS signal processing capability and supports multi-constellation satellite navigation systems including GPS, BDS, GLONASS, Galileo, and QZSS.

With support for L1, L2, and L5 frequency bands, TX-AK713 provides stable RTK positioning performance and supports RAW carrier phase output for professional GNSS applications requiring reliable positioning data.

The module features TTL communication interface, NMEA 0183 and RTCM 3.3 protocol support, compact cylindrical design, and industrial operating temperature capability, making it suitable for UAV navigation, robotics, precision agriculture, surveying equipment, and autonomous systems.

Key Features

Unicore UM980 GNSS Chipset

Powered by the Unicore UM980 multi-frequency GNSS chipset with high-performance satellite signal tracking capability and RTK positioning support.

Multi-Constellation GNSS Support

Supports GPS, BDS, GLONASS, Galileo, and QZSS satellite navigation systems for flexible global positioning applications.

Multi-Frequency Positioning

Supports L1, L2, and L5 frequency bands to improve positioning reliability in complex environments.

RTK Positioning Capability

Provides RTK positioning output with 0.8 cm + 1 ppm CEP horizontal accuracy under RTK conditions.

RAW Carrier Phase Output

Supports RAWX carrier phase data output for advanced GNSS applications and system integration.

Compact Integrated Design

Small cylindrical structure with lightweight design for easy integration into UAVs, robots, and industrial equipment.

Industrial Temperature Operation

Designed for reliable operation from -35°C to +80°C in demanding industrial environments.

Technical Specifications

Applications

UAV Navigation

Suitable for drone navigation, flight control systems, and autonomous aerial platforms requiring reliable GNSS positioning.

Robotics and Autonomous Systems

Provides positioning capability for outdoor robots, autonomous vehicles, and intelligent equipment.

Precision Agriculture

Designed for agricultural machinery and precision farming systems requiring RTK positioning data.

Surveying Equipment

Supports professional GNSS applications with RTK correction data and RAW observation output.

System Integration

GNSS Antenna → TX-AK713 RTK GNSS Module → Flight Controller / Industrial Controller → Navigation System

TX-AK713 can be integrated with external GNSS antennas and host controllers through TTL communication interfaces for customized positioning solutions.

Why Choose TOXU

TOXU provides customized GNSS positioning solutions including GNSS modules, RTK terminals, antennas, RF cables, and hardware integration services.

With professional RF engineering capability and manufacturing experience, TOXU supports prototype development, customization, and mass production for industrial customers worldwide.

FAQ - Frequently Asked Questions

Q1: Which GNSS chipset is used in TX-AK713?

TX-AK713 uses the Unicore UM980 multi-frequency GNSS chipset.

Q2: Does TX-AK713 support RTK positioning?

Yes. TX-AK713 supports RTK positioning mode with correction data through RTCM protocol.

Q3: What applications is TX-AK713 suitable for?

It is suitable for UAVs, robotics, precision agriculture, surveying equipment, and industrial navigation systems.
