Overview

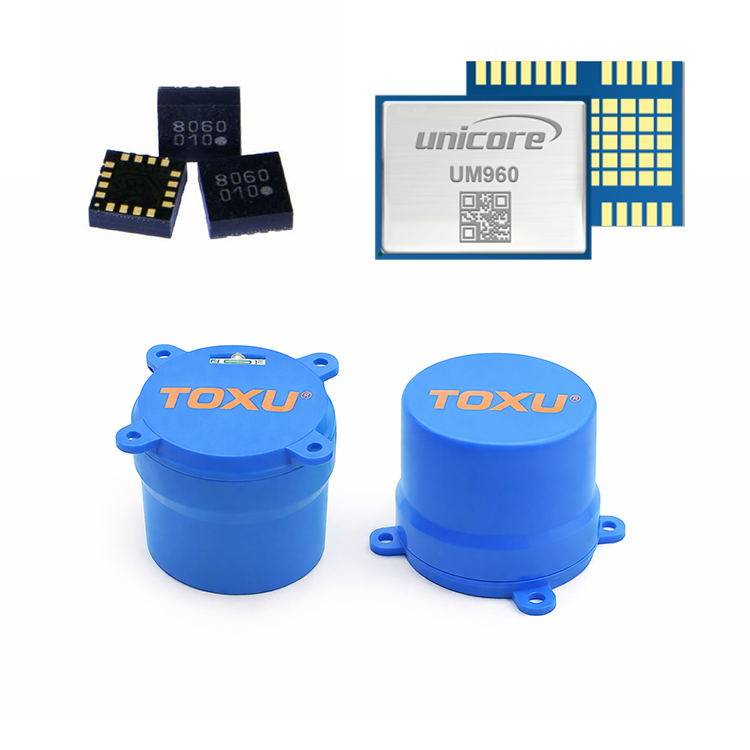

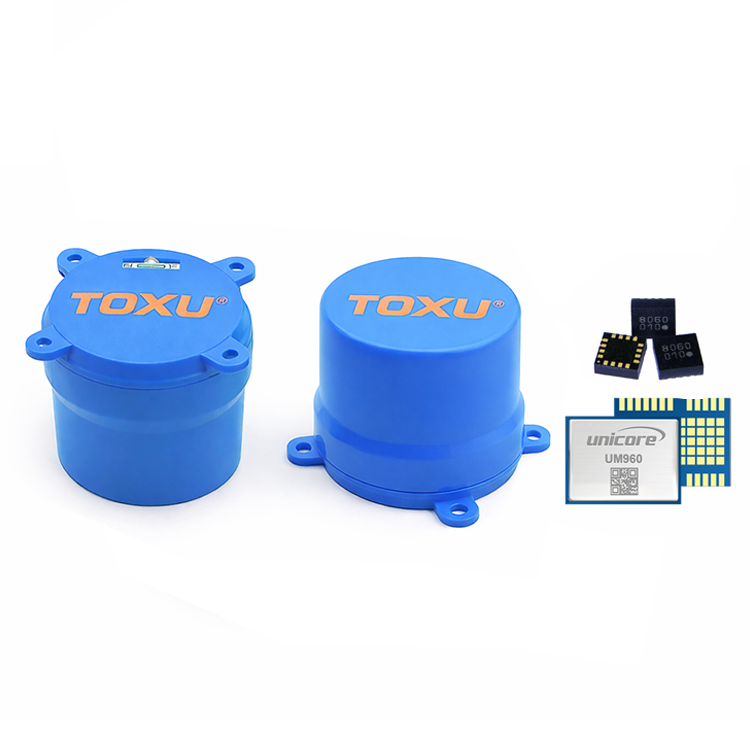

The TOXU TX-AK973T is a multi-constellation GNSS RTK receiver module based on the Unicore UM960 GNSS chipset, featuring a built-in IST8310 digital electronic compass for stable heading output.

TX-AK973T supports GPS, BDS, GLONASS, Galileo and QZSS satellite navigation systems with L1, L2 and L5 frequency bands, providing reliable GNSS signal tracking and RTK positioning capability.

With integrated electronic compass, RAWX carrier phase output, TTL communication interface and compact mechanical design, TX-AK973T is designed for OEM integration in robotics, surveying equipment, autonomous navigation systems and precision positioning terminals.

Key Features

Unicore UM960 GNSS Chipset

Based on the Unicore UM960 GNSS chipset with multi-constellation satellite signal processing capability for professional positioning applications.

Integrated IST8310 Electronic Compass

Built-in IST8310 digital compass provides heading information for navigation systems requiring orientation data.

Multi-Constellation GNSS Support

Supports GPS, BDS, GLONASS, Galileo and QZSS satellite navigation systems for reliable global positioning.

Multi-Frequency GNSS Reception

Supports L1, L2 and L5 frequency bands to improve positioning reliability in complex environments.

RTK Positioning Support

Supports RTK positioning with external correction data, providing centimeter-level positioning capability.

RAWX Carrier Phase Output

Supports RAWX statements output for advanced GNSS processing and system integration.

Compact OEM Design

Compact Φ42 × 31.2 mm structure with TTL interface for easy integration into embedded positioning systems.

Technical Specifications

Applications

Robotics

Provides RTK positioning and heading information for autonomous robots and intelligent equipment.

Surveying Equipment

Suitable for surveying systems requiring reliable GNSS RTK positioning performance.

Autonomous Navigation Systems

Supports navigation platforms requiring positioning and orientation information.

Precision Positioning Terminals

Compact design supports embedded OEM positioning applications.

System Integration

GNSS Antenna → TX-AK973T RTK GNSS Module → Controller → Navigation System

TX-AK973T integrates GNSS positioning and electronic compass heading output in a compact module design for embedded navigation applications.

Why Choose TOXU

TOXU provides integrated GNSS positioning solutions including RTK modules, GNSS antennas, RF cable assemblies, and customized navigation hardware solutions.

With professional RF engineering and manufacturing capability, TOXU supports prototype development, customization, and mass production for industrial positioning applications.

FAQ - Frequently Asked Questions

Q1: Which GNSS chipset is used in TX-AK973T?

TX-AK973T uses the Unicore UM960 GNSS chipset.

Q2: Does TX-AK973T include an electronic compass?

Yes. TX-AK973T integrates an IST8310 digital electronic compass for heading output.

Q3: What applications are suitable for TX-AK973T?

TX-AK973T is suitable for robotics, surveying equipment, autonomous navigation systems and precision positioning terminals.
