Overview

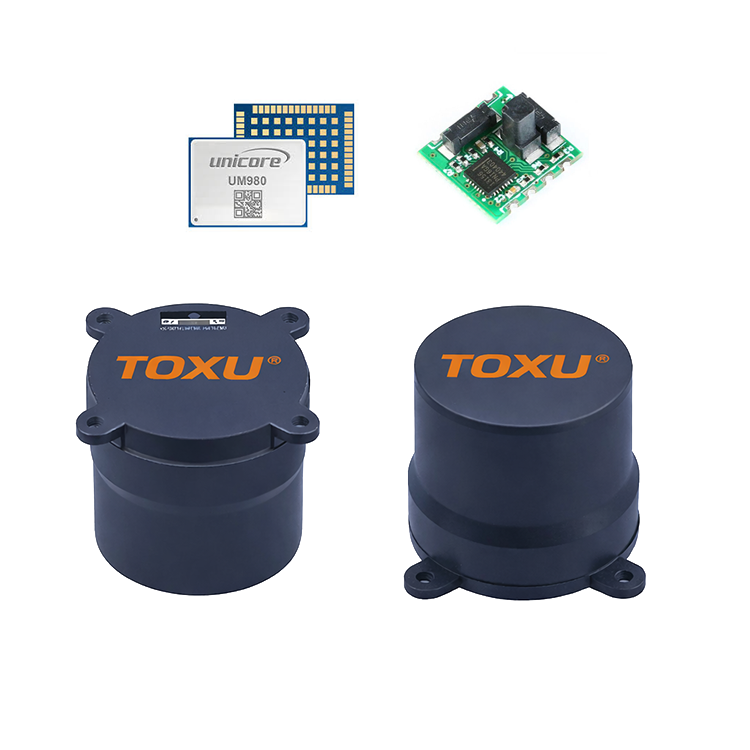

The TOXU TX-AK713RM is an integrated RTK GNSS positioning module based on the Unicore UM980 multi-frequency GNSS chipset with a built-in RM3100 digital compass.

Compared with standard GNSS positioning modules, TX-AK713RM integrates electronic compass capability to provide heading information under static or low-speed conditions, helping improve navigation performance for autonomous systems.

The module supports GPS, BDS, GLONASS, Galileo, and QZSS satellite navigation systems with L1, L2, and L5 frequency bands. It provides RTK positioning output, RAW carrier phase data, TTL communication interface, and NMEA/RTCM protocols for flexible system integration.

Key Features

Unicore UM980 GNSS Chipset

Based on the Unicore UM980 multi-frequency GNSS chipset with support for high-performance satellite signal tracking and RTK positioning.

Integrated RM3100 Digital Compass

Built-in RM3100 electronic compass provides heading information for navigation applications requiring orientation data.

Multi-Constellation GNSS Support

Supports GPS, BDS, GLONASS, Galileo, and QZSS systems for global positioning compatibility.

Multi-Frequency GNSS Reception

Supports L1, L2, and L5 frequency bands to enhance positioning reliability in challenging environments.

RTK Positioning Capability

Provides RTK positioning output with 0.8 cm + 1 ppm CEP accuracy under RTK conditions.

RAW Carrier Phase Output

Supports RAWX carrier phase data output for advanced GNSS applications and customized positioning systems.

Compact Integrated Design

Compact cylindrical structure integrating GNSS positioning and heading functions for easy installation.

Industrial Operating Temperature

Designed for reliable operation from -35°C to +80°C for industrial and outdoor applications.

Technical Specifications

Applications

Autonomous Navigation Systems

Provides GNSS positioning and heading information for autonomous vehicles, robots, and navigation platforms.

UAV Navigation

Suitable for drones and unmanned aerial systems requiring RTK positioning and orientation information.

Precision Agriculture Equipment

Supports agricultural machinery applications requiring accurate positioning and heading data.

Robotics

Designed for outdoor robots and intelligent equipment requiring integrated GNSS and compass functions.

System Integration

GNSS Antenna → TX-AK713RM RTK GNSS + Compass Module → Controller / Flight Control System → Navigation Application

TX-AK713RM supports integration with external GNSS antennas and host controllers through TTL communication interface for customized navigation solutions.

Why Choose TOXU

TOXU provides integrated GNSS positioning solutions including RTK modules, GNSS antennas, RF cable assemblies, and customized hardware integration services.

With professional RF engineering and manufacturing capabilities, TOXU supports prototype development, customization, and mass production for industrial positioning applications.

FAQ - Frequently Asked Questions

Q1: Which GNSS chipset is used in TX-AK713RM?

TX-AK713RM uses the Unicore UM980 multi-frequency GNSS chipset.

Q2: Does TX-AK713RM include a compass?

Yes. TX-AK713RM integrates an RM3100 digital compass for heading information.

Q3: What applications can use TX-AK713RM?

It is suitable for UAVs, robotics, autonomous navigation systems, precision agriculture equipment, and industrial positioning applications.
