Overview

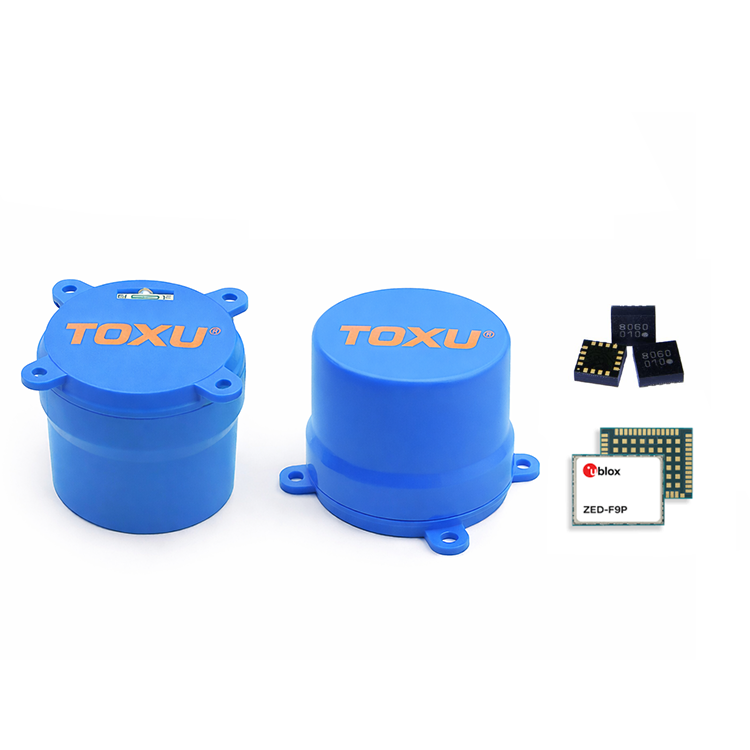

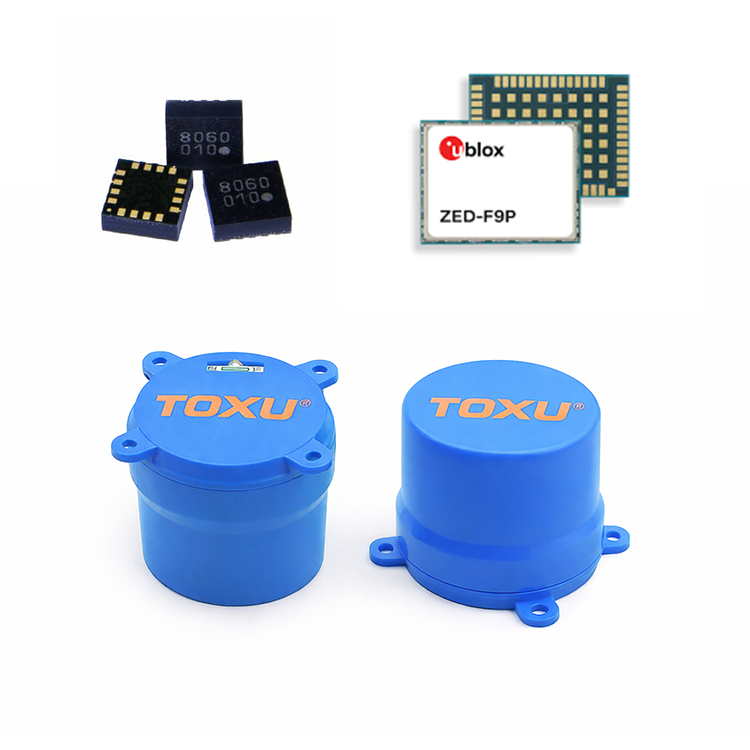

The TOXU TX-AK717 is a dual-band GNSS RTK receiver module based on the u-blox ZED-F9P chipset, integrated with a built-in IST8310 digital electronic compass.

The module supports multiple GNSS constellations including GPS, BDS, GLONASS, Galileo, QZSS and SBAS, providing stable positioning performance in complex environments.

By combining RTK GNSS positioning capability with heading information output, TX-AK717 is designed for applications requiring both accurate position and orientation data, including robotics, surveying equipment, mapping and autonomous navigation systems.

Key Features

u-blox ZED-F9P GNSS Chipset

Based on the u-blox ZED-F9P GNSS chipset, providing reliable dual-band RTK positioning capability.

IST8310 Digital Electronic Compass

Integrated IST8310 digital compass provides heading information for navigation systems requiring orientation data.

Dual-Band GNSS Reception

Supports L1 and L2 frequency bands for improved GNSS positioning reliability.

Multi-Constellation GNSS Support

Compatible with GPS, BDS, GLONASS, Galileo, QZSS and SBAS satellite navigation systems.

RTK Positioning Support

Supports RTK correction data input and carrier phase RAWX output for high-accuracy positioning applications.

Compact OEM Integration

Compact Φ42 × 31.2 mm design with TTL communication interface for embedded navigation systems.

Technical Specifications

Applications

Surveying and Mapping

Provides RTK positioning and heading information for surveying equipment and mapping systems.

Robotics

Suitable for autonomous robots requiring accurate positioning and orientation information.

Autonomous Navigation

Supports navigation platforms requiring both GNSS positioning and heading output.

OEM Positioning Systems

Designed for developers and system integrators building embedded GNSS solutions.

System Integration

GNSS Antenna → TX-AK717 RTK GNSS Module → Controller → Navigation System

TX-AK717 integrates u-blox ZED-F9P RTK positioning capability and IST8310 electronic compass heading information into a compact OEM module.

Why Choose TOXU

TOXU provides integrated GNSS positioning solutions including RTK modules, GNSS antennas, RF cable assemblies and customized navigation hardware solutions.

With professional RF engineering and manufacturing capability, TOXU supports prototype development, customization and mass production for industrial positioning applications.

FAQ - Frequently Asked Questions

Q1: Which GNSS chipset is used in TX-AK717?

TX-AK717 uses the u-blox ZED-F9P GNSS chipset.

Q2: Does TX-AK717 support heading output?

Yes. TX-AK717 integrates an IST8310 digital electronic compass for heading information.

Q3: What applications are suitable for TX-AK717?

TX-AK717 is suitable for surveying, mapping, robotics, autonomous navigation and OEM positioning systems.
