Overview

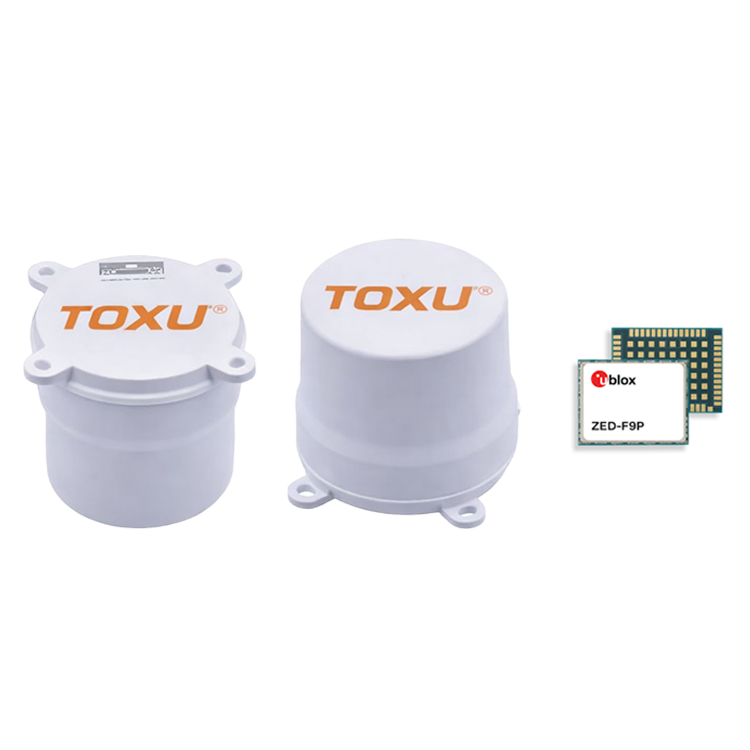

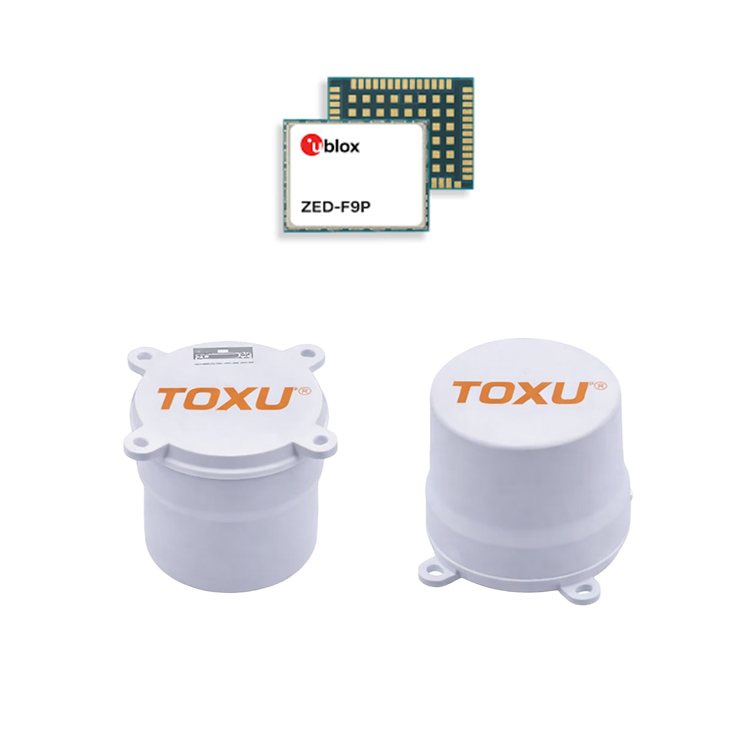

The TOXU TX-AK712 is a compact dual-band GNSS RTK receiver module based on the u-blox ZED-F9P chipset, designed for high-precision positioning applications requiring reliable performance and low power consumption.

The module supports dual-band GNSS signals on L1 and L2 frequencies and is compatible with multiple satellite navigation systems including GPS, BDS, GLONASS, Galileo, QZSS and SBAS.

TX-AK712 supports RTK positioning with external correction data and provides carrier phase RAWX output for precise positioning and advanced system integration. With fast initialization, compact size and low power consumption, it is suitable for surveying, mapping, robotics and precision navigation applications.

Key Features

u-blox ZED-F9P GNSS Chipset

Based on the u-blox ZED-F9P platform, providing reliable dual-band RTK GNSS positioning capability.

Dual-Band GNSS Reception

Supports L1 and L2 frequency bands for improved positioning reliability and RTK performance.

Multi-Constellation Support

Compatible with GPS, BDS, GLONASS, Galileo, QZSS and SBAS satellite navigation systems.

RTK Positioning Support

Supports RTK correction data input and carrier phase RAWX output for high-accuracy positioning applications.

Low Power Consumption

Consumes less than 180 mW at 3.3 V, suitable for compact and power-sensitive embedded systems.

Compact OEM Integration

Compact Φ42 × 31.2 mm structure with TTL communication interface for easy system integration.

Technical Specifications

Applications

Surveying and Mapping

Provides RTK positioning capability for surveying equipment and mapping applications.

Robotics

Suitable for autonomous robots requiring reliable positioning information.

Precision Navigation

Supports navigation systems requiring compact and low-power RTK GNSS solutions.

OEM Integration

Designed for developers and system integrators building embedded positioning products.

System Integration

GNSS Antenna → TX-AK712 RTK GNSS Module → Controller → Navigation System

TX-AK712 provides a compact RTK GNSS positioning solution based on the u-blox ZED-F9P platform for easy integration into OEM systems.

Why Choose TOXU

TOXU provides integrated GNSS positioning solutions including RTK modules, GNSS antennas, RF cable assemblies and customized navigation hardware solutions.

With professional RF engineering and manufacturing capability, TOXU supports prototype development, customization and mass production for industrial positioning applications.

FAQ - Frequently Asked Questions

Q1: Which chipset is used in TX-AK712?

TX-AK712 uses the u-blox ZED-F9P GNSS chipset.

Q2: Does TX-AK712 support RTK positioning?

Yes. TX-AK712 supports RTK positioning through external correction data.

Q3: What applications are suitable for TX-AK712?

TX-AK712 is suitable for surveying, mapping, robotics, OEM positioning systems and precision navigation applications.
