| Product variants | RCB-F9T-0 | RCB-F9T-1 |
| GNSS features |
| GNSS | BeiDou, Galileo, GLONASS, GPS / QZSS |
| Number of concurrent GNSS | 4 |
| GNSS bands | L1C/A, L2C, L1OF, L2OF, E1B/C, E5b, B1I, B2I | L1C/A, L5, L1OF, E1B/C, E5a, B1I, B1C, B2a |
| Oscillators | TCXO |
| Interfaces |
| UART | √ |
| Electrical data |
| Maximum supply [V] | 3.6 |
| Minimum supply [V] | 2.7 |
| Environmental data,quality & reliability |
| Maximum temperature [°C] | 85 |
| Minimum temperature [°C] | -40 |
| Features |
| Additional SAW | √ |
| Carrier phase output | √ |
| Internal oscillator | √ |
| Programmable flash memory | √ |
| Time pulse output | √ |

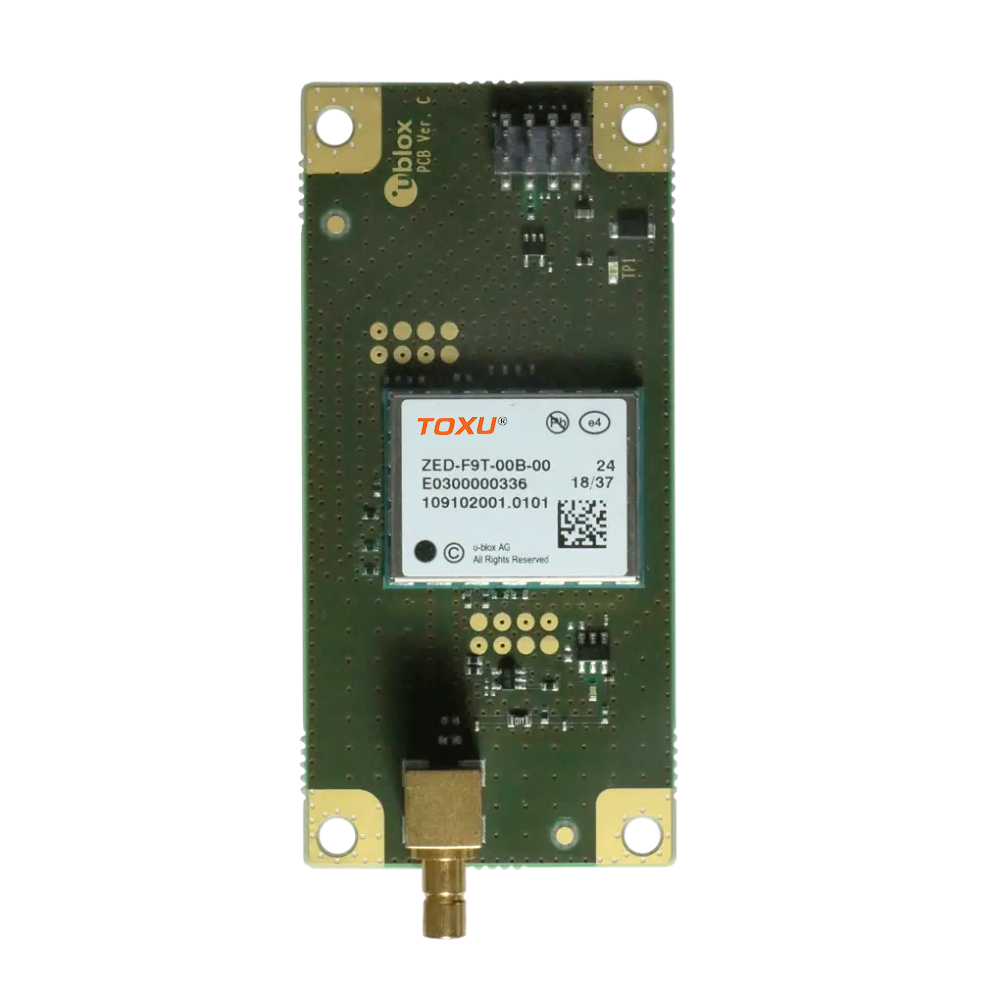

The RCB-F9T boards allow for easy evaluation and quick prototyping with the ZED-F9T high accuracy timing modules.
RCB-F9T is available in two different band variants, RCB-F9T-0 supporting L1/L2/E5b frequency bands and RCB-F9T-1 supporting L1/L5/E5a frequency bands.
The ZED-F9T module provides multi-band GNSS timing and comes with nanosecond level timing accuracy in both standalone and differential timing modes.
The RCB-F9T timing board contains an SMB antenna connector and 5V power supply circuitry for active multi-band GNSS antennas. 8-pin, 2.0 mm pitch pin-header provides powering of the board, UART communications and two independently configurable time pulse signals.
The evaluation software, u-center, provides a powerful platform for evaluation of u-blox GNSS receivers. With u-center, the receiver can be easily configured, and data can be logged as well as visualized in real time.
