Overview

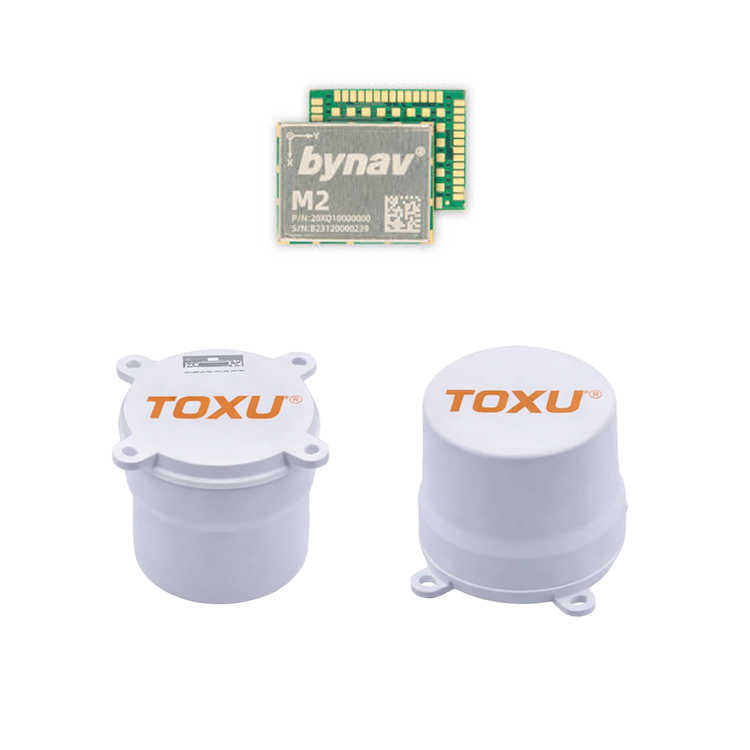

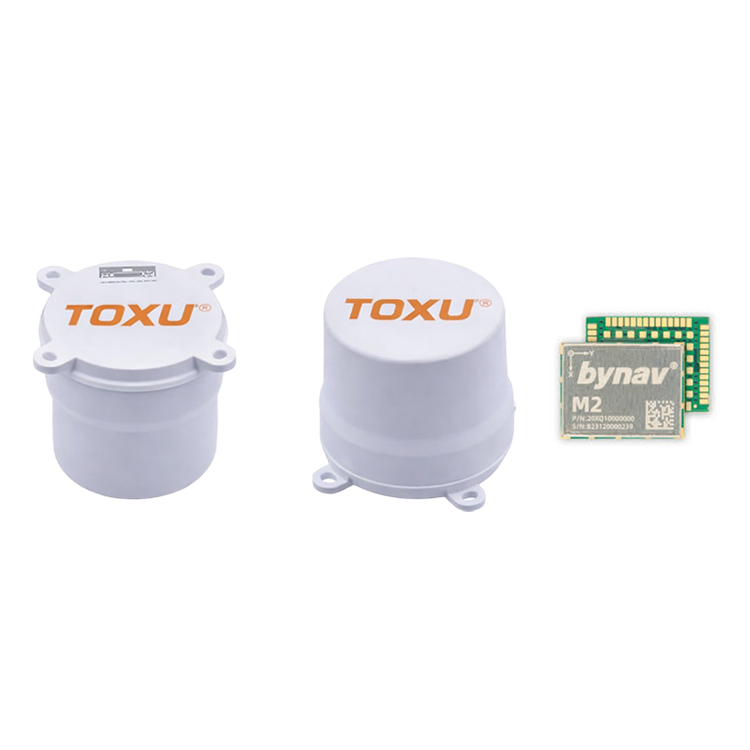

The TOXU TX-AK734 is a high-performance multi-band GNSS RTK INS receiver module based on the Bynav M22 chipset, designed for applications requiring high reliability, positioning continuity, and advanced navigation capability.

The module supports multi-constellation GNSS signals including GPS, BDS, GLONASS, Galileo, QZSS, NavIC and SBAS across L1, L2, L5 and E6 frequency bands, providing stable positioning performance in complex environments.

With integrated dual inertial navigation system, RTK correction support, and RAWX carrier phase output, TX-AK734 improves positioning stability during short GNSS signal interruptions and is suitable for autonomous driving platforms, robotics, surveying equipment, and precision agriculture systems.

Key Features

Bynav M22 GNSS Chipset

Based on the Bynav M22 multi-band GNSS chipset with high-reliability positioning capability for advanced navigation applications.

Dual Inertial Navigation System

Integrates dual INS system to maintain positioning continuity and improve navigation stability during temporary GNSS signal loss.

Multi-Band GNSS Support

Supports L1, L2, L5 and E6 frequency bands with multiple satellite constellations for reliable positioning.

RTK Positioning Support

Supports RTK positioning through external correction data for high-accuracy navigation applications.

RAWX Carrier Phase Output

Provides RAWX carrier phase output for advanced GNSS algorithms and system integration.

ASIL B Functional Safety

Supports ASIL B functional safety level for applications requiring enhanced reliability.

Technical Specifications

Applications

Autonomous Driving

Suitable for autonomous vehicles requiring reliable GNSS and inertial navigation performance.

Robotics Systems

Provides continuous positioning capability for autonomous robots and intelligent platforms.

Surveying Equipment

Supports professional positioning systems requiring RTK and INS integration.

Precision Agriculture

Designed for agricultural machinery requiring stable positioning and navigation capability.

System Integration

GNSS Antenna → TX-AK734 GNSS RTK INS Module → Vehicle / Robot Controller → Autonomous Navigation System

TX-AK734 integrates GNSS positioning, RTK correction, and dual inertial navigation functions for advanced autonomous system integration.

Why Choose TOXU

TOXU provides integrated GNSS positioning solutions including RTK modules, GNSS antennas, RF cable assemblies, and customized navigation hardware solutions.

With professional RF engineering and manufacturing capability, TOXU supports prototype development, customization, and mass production for industrial positioning applications.

FAQ - Frequently Asked Questions

Q1: Which GNSS chipset is used in TX-AK734?

TX-AK734 uses the Bynav M22 GNSS chipset.

Q2: Does TX-AK734 support inertial navigation?

Yes. TX-AK734 integrates a dual inertial navigation system to improve positioning continuity.

Q3: What applications are suitable for TX-AK734?

It is suitable for autonomous driving, robotics, surveying, precision agriculture, and high-reliability navigation systems.
