Overview

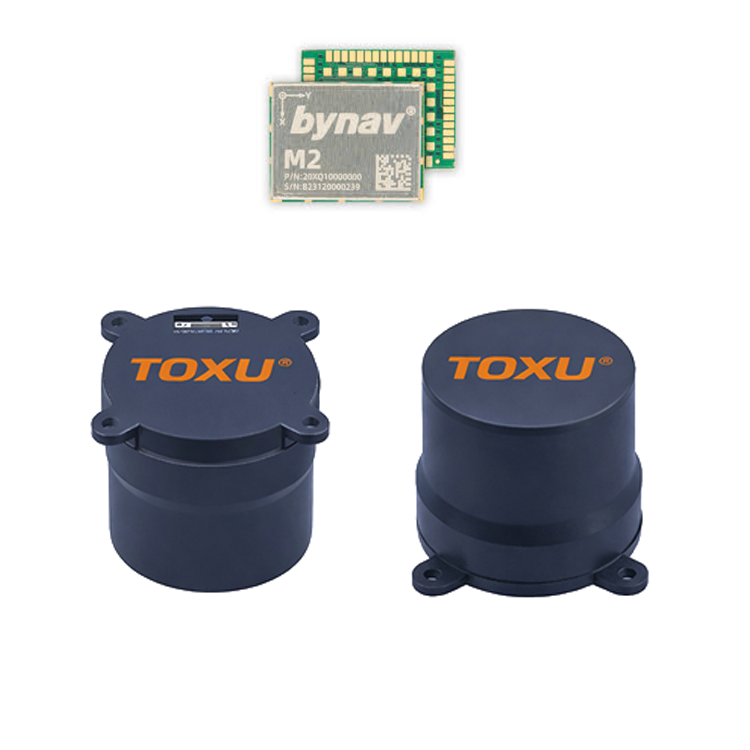

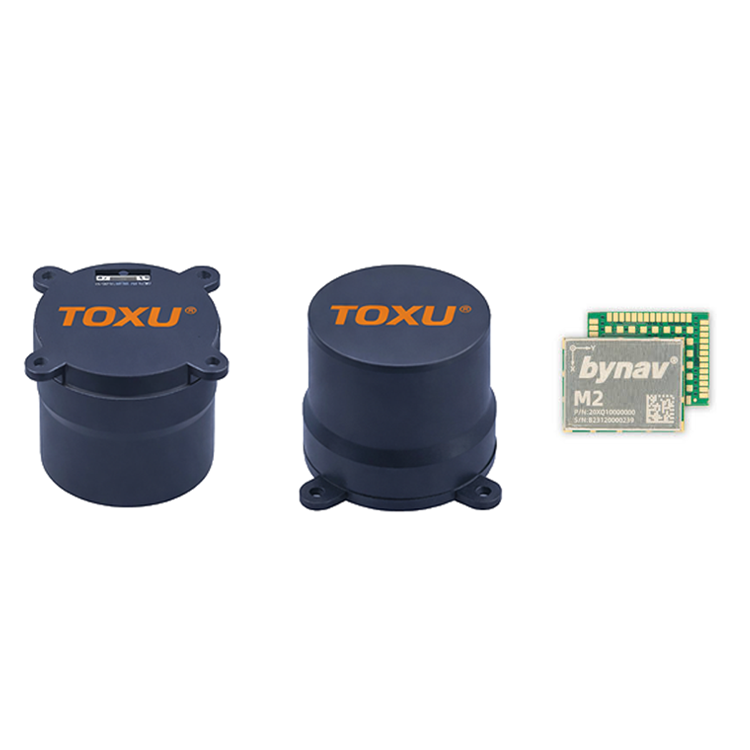

The TOXU TX-AK724 is a multi-band GNSS RTK INS receiver module based on the Bynav M21 GNSS chipset, designed for high-performance positioning and autonomous navigation applications.

The module supports multi-constellation GNSS signals across L1, L2 and L5 frequency bands, providing reliable positioning capability in complex environments. It supports RTK positioning through external correction data and provides RAWX carrier phase output for advanced positioning systems.

With integrated inertial navigation capability, TX-AK724 improves positioning continuity and stability during short GNSS signal interruptions. The module is suitable for autonomous driving, robotics, surveying, precision agriculture, and OEM navigation projects.

Key Features

Bynav M21 GNSS Chipset

Based on the Bynav M21 multi-band GNSS chipset with high-sensitivity satellite signal reception capability.

Integrated GNSS/INS Navigation

Integrates inertial navigation system to maintain positioning continuity during temporary GNSS signal loss.

Multi-Band GNSS Support

Supports L1, L2 and L5 frequency bands for reliable positioning performance in demanding environments.

RTK Positioning Support

Supports RTK positioning with external correction data for high-accuracy navigation applications.

RAWX Carrier Phase Output

Provides carrier phase RAWX output for advanced positioning algorithms and system integration.

OEM Customization Capability

Supports firmware and interface customization for system integrators and embedded projects.

Technical Specifications

Applications

Autonomous Driving

Provides positioning and navigation capability for autonomous vehicles and intelligent driving systems.

Robotics

Suitable for autonomous robots requiring stable positioning and navigation information.

Surveying Applications

Supports professional surveying systems requiring RTK GNSS positioning.

Precision Agriculture

Designed for agricultural machinery and precision farming navigation systems.

System Integration

GNSS Antenna → TX-AK724 GNSS RTK INS Module → Vehicle / Robot Controller → Autonomous Navigation System

TX-AK724 integrates GNSS positioning and inertial navigation functions, providing a compact solution for autonomous system integration.

Why Choose TOXU

TOXU provides integrated GNSS positioning solutions including RTK modules, GNSS antennas, RF cable assemblies, and customized navigation hardware solutions.

With professional RF engineering and manufacturing capability, TOXU supports prototype development, customization, and mass production for industrial positioning applications.

FAQ - Frequently Asked Questions

Q1: Which GNSS chipset is used in TX-AK724?

TX-AK724 uses the Bynav M21 GNSS chipset.

Q2: Does TX-AK724 support inertial navigation?

Yes. TX-AK724 integrates an inertial navigation system for improved positioning continuity.

Q3: What applications is TX-AK724 suitable for?

It is suitable for autonomous driving, robotics, surveying, precision agriculture, and OEM navigation systems.
