Overview

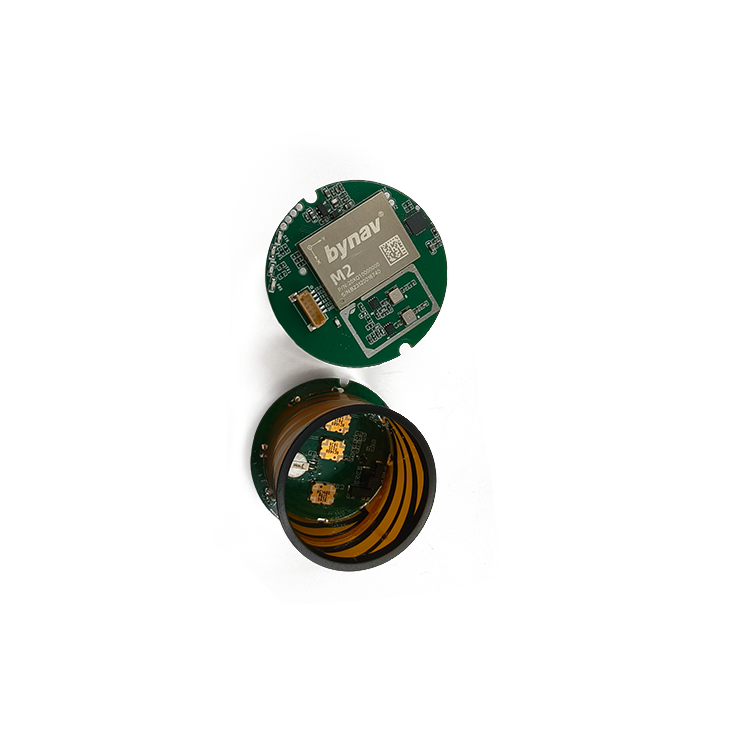

The TOXU KS.CP.0002 is an OEM RTK GNSS module designed for high-performance positioning and navigation applications.

Based on the Bynav M20 multi-frequency GNSS chipset, KS.CP.0002 integrates an RM3100 industrial-grade digital compass to provide both accurate positioning and heading information for embedded navigation systems.

The module supports multi-constellation GNSS signals including GPS, BDS, GLONASS, Galileo, QZSS, and NavIC. Its compact bare-board design makes it suitable for OEM products, secondary development, and customized hardware integration.

Key Features

Bynav M20 Multi-Frequency GNSS Chipset

Integrates the Bynav M20 GNSS chipset with support for multiple satellite constellations and frequency bands.

Integrated RM3100 Digital Compass

Provides reliable heading information for navigation systems requiring both position and orientation data.

RTK Positioning Support

Supports RTK correction data and carrier phase RAW output for precise positioning applications.

OEM Embedded Design

The bare-board structure allows engineers to integrate the module into customized devices and professional navigation systems.

Flexible Hardware Integration

TOXU supports customized solutions including GNSS antenna matching, RF cable assembly, connectors, PCB design, and complete hardware integration.

Technical Specifications

Applications

• UAV navigation and autonomous flight systems

• Robotics and autonomous vehicles

• Precision agriculture equipment

• Industrial positioning systems

• Customized OEM navigation devices

System Integration

KS.CP.0002 can be integrated into complete positioning solutions together with GNSS antennas, RF cables, connectors, and customized hardware platforms.

TOXU provides one-stop hardware support from GNSS module integration, antenna matching, PCB design, prototype development to mass production.

Why Choose TOXU

TOXU provides professional GNSS positioning hardware solutions with experience in antenna design, RF technology, PCB manufacturing, and hardware integration.

With integrated manufacturing capability, TOXU supports customers from initial concept design and prototype validation to customized mass production.

FAQ - Frequently Asked Questions

Q1: Which GNSS chipset is used in KS.CP.0002?

KS.CP.0002 is based on the Bynav M20 multi-frequency GNSS chipset, supporting multi-constellation GNSS positioning including GPS, BDS, GLONASS, Galileo, QZSS, and NavIC.

Q2: Does KS.CP.0002 support RTK positioning?

Yes. KS.CP.0002 supports RTK positioning with correction data input and carrier phase output for high-precision positioning applications.

Q3: Does KS.CP.0002 support heading output?

Yes. The module integrates an RM3100 digital compass to provide heading information for applications requiring both positioning and orientation data.

Q4: What antenna is required for KS.CP.0002?

KS.CP.0002 requires an external GNSS antenna. TOXU can provide matched GNSS antennas, RF cable assemblies, and connectors according to different application requirements.

Q5: Is KS.CP.0002 suitable for OEM product integration?

Yes. KS.CP.0002 adopts a bare-board OEM design and is suitable for integration into UAVs, robotics, autonomous systems, industrial equipment, and customized navigation products.

Q6: Can TOXU provide customized hardware solutions based on this module?

Yes. Based on customer requirements, TOXU can provide complete hardware support including customized PCB design, PCBA manufacturing, GNSS antenna integration, RF cable assemblies, connectors, and complete positioning system solutions.
