Overview

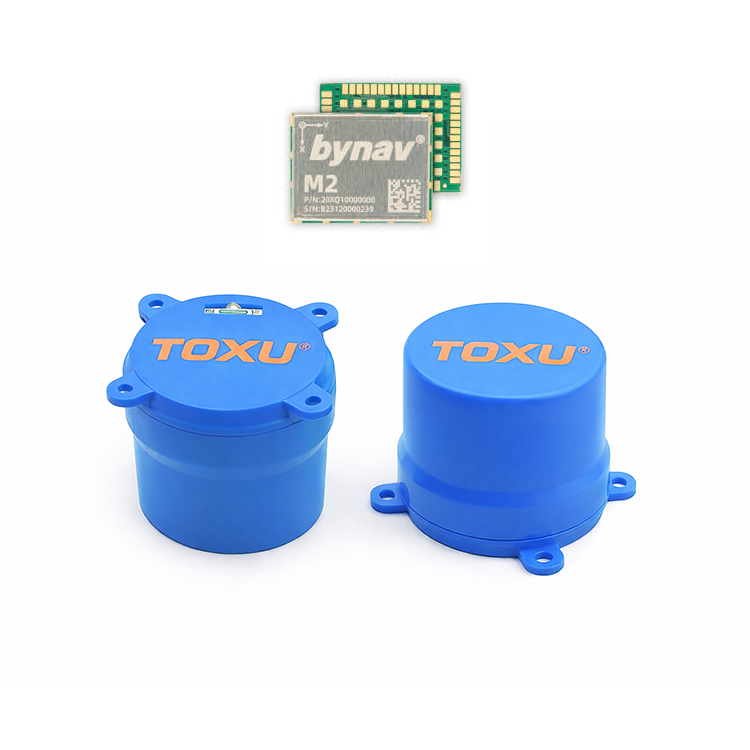

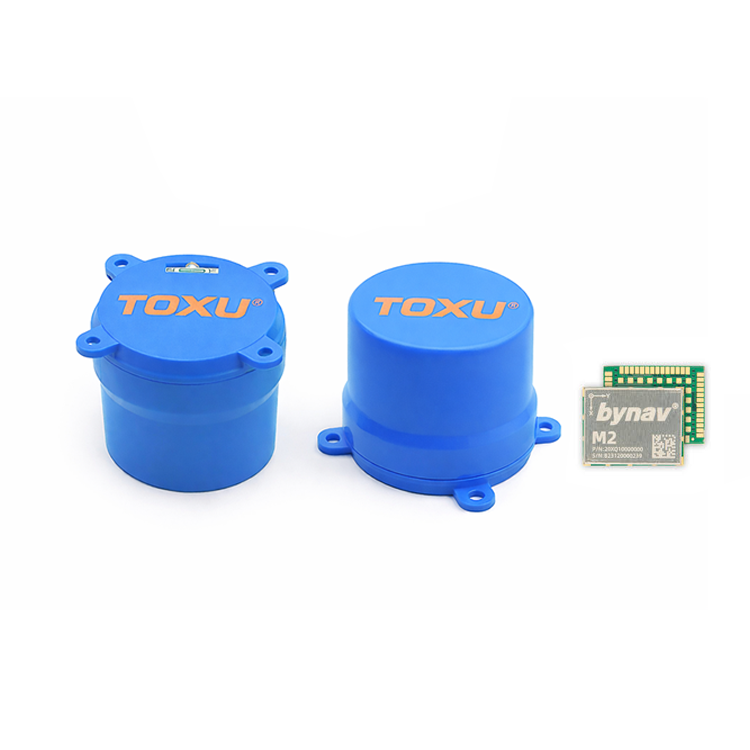

The TOXU TX-AK714 is a multi-constellation, multi-frequency RTK GNSS positioning module based on the Bynav M20 GNSS chipset. It is designed for applications requiring reliable positioning performance, compact integration, and flexible system connectivity.

TX-AK714 supports GPS, BDS, GLONASS, Galileo, QZSS, NavIC, and SBAS satellite navigation systems with L1, L2, and L5 frequency bands, enabling stable GNSS positioning capability for professional applications.

With support for RTK positioning, RAW carrier phase output, NMEA, RTCM 3.3 and UBX protocols, TX-AK714 provides an efficient GNSS solution for UAV platforms, robotics, autonomous navigation systems, precision agriculture equipment, and embedded OEM applications.

Key Features

Bynav M20 GNSS Chipset

Based on the Bynav M20 multi-frequency GNSS chipset with high-capacity satellite signal processing capability.

Multi-Constellation GNSS Support

Supports GPS, BDS, GLONASS, Galileo, QZSS, NavIC and SBAS for global positioning compatibility.

Multi-Frequency GNSS Reception

Supports L1, L2 and L5 frequency bands for improved positioning reliability.

RTK Positioning Support

Supports RTK positioning mode with centimeter-level positioning performance under supported correction services.

RAW Carrier Phase Output

Provides RAWX carrier phase data output for advanced GNSS applications and system integration.

Flexible Communication Protocols

Supports NMEA, RTCM 3.3 and UBX protocols through TTL interface for embedded applications.

Technical Specifications

Applications

UAV Navigation

Suitable for drone platforms and autonomous aerial systems requiring reliable RTK GNSS positioning.

Robotics and Autonomous Systems

Provides positioning capability for outdoor robots and intelligent navigation equipment.

Precision Agriculture

Designed for agricultural machinery and precision farming systems requiring GNSS correction data.

Embedded OEM Solutions

Compact design and flexible interfaces support customized GNSS integration projects.

System Integration

GNSS Antenna → TX-AK714 RTK GNSS Module → Controller / Host System → Navigation Application

TX-AK714 can be integrated with external GNSS antennas and embedded controllers through TTL communication interfaces.

Why Choose TOXU

TOXU provides integrated GNSS positioning solutions including RTK modules, GNSS antennas, RF cable assemblies, and customized hardware integration services.

With professional RF engineering capability and manufacturing experience, TOXU supports prototype development, customization, and mass production for industrial positioning applications.

FAQ - Frequently Asked Questions

Q1: Which GNSS chipset is used in TX-AK714?

TX-AK714 uses the Bynav M20 GNSS chipset.

Q2: Does TX-AK714 support RTK positioning?

Yes. TX-AK714 supports RTK positioning and RAW carrier phase output.

Q3: Does TX-AK714 include inertial navigation?

No. TX-AK714 does not include inertial navigation, gyroscope, or accelerometer functions.
