Overview

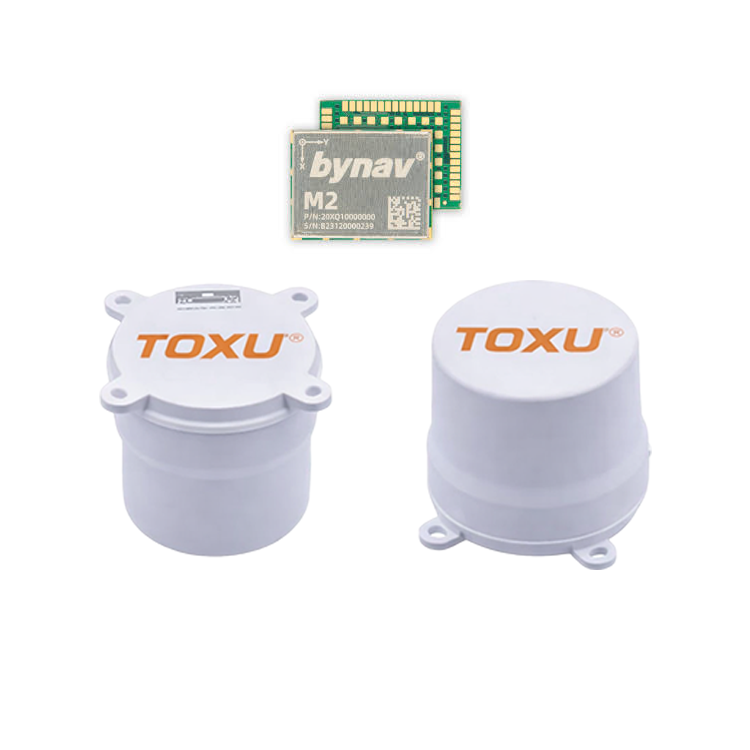

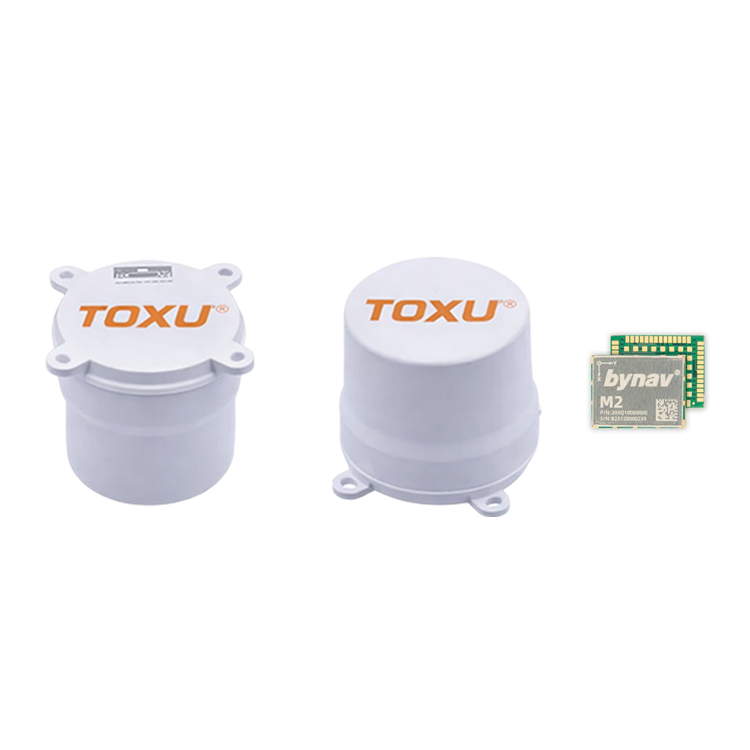

The TOXU TX-AK714T is a multi-constellation and multi-frequency RTK GNSS positioning module powered by the Bynav M20 GNSS chipset. It is designed for applications requiring stable satellite tracking, reliable positioning performance, and flexible system integration.

TX-AK714T supports GPS, BDS, GLONASS, Galileo, QZSS, NavIC and SBAS satellite navigation systems, covering L1, L2 and L5 frequency bands for professional GNSS positioning applications.

With 1507 receiving channels, RAW carrier phase output capability, and support for NMEA, RTCM 3.3 and UBX protocols, TX-AK714T provides an efficient RTK GNSS solution for precision agriculture, robotics, UAV ground equipment, autonomous navigation systems, and embedded OEM applications.

Key Features

Bynav M20 GNSS Chipset

Powered by the Bynav M20 multi-frequency GNSS chipset with high-capacity satellite signal processing capability.

Multi-Constellation GNSS Support

Supports GPS, BDS, GLONASS, Galileo, QZSS, NavIC and SBAS satellite systems for global positioning compatibility.

Multi-Frequency GNSS Reception

Supports L1, L2 and L5 frequency bands to improve positioning reliability in complex environments.

RTK Positioning Support

Provides RTK positioning capability with external correction services for high-accuracy GNSS applications.

RAW Carrier Phase Output

Supports RAWX carrier phase output for advanced GNSS processing and system integration.

Flexible Communication Interface

Supports TTL interface with NMEA, RTCM 3.3 and UBX protocols for embedded OEM applications.

Technical Specifications

Applications

Precision Agriculture

Suitable for agricultural machinery and precision farming equipment requiring RTK GNSS positioning.

Robotics and Autonomous Navigation

Provides reliable positioning data for outdoor robots and autonomous systems.

UAV Ground Equipment

Supports GNSS positioning requirements for UAV-related ground control and navigation systems.

Embedded OEM Applications

Compact design and flexible interfaces support customized GNSS integration projects.

System Integration

GNSS Antenna → TX-AK714T RTK GNSS Module → Host Controller → Navigation System

TX-AK714T can be integrated with external GNSS antennas and embedded controllers through TTL communication interface.

Why Choose TOXU

TOXU provides integrated GNSS positioning solutions including RTK modules, GNSS antennas, RF cable assemblies, and customized hardware integration services.

With professional RF engineering capability and manufacturing experience, TOXU supports prototype development, customization, and mass production for industrial positioning applications.

FAQ - Frequently Asked Questions

Q1: Which GNSS chipset is used in TX-AK714T?

TX-AK714T uses the Bynav M20 GNSS chipset.

Q2: Does TX-AK714T support RTK positioning?

Yes. TX-AK714T supports RTK positioning with external correction services.

Q3: Does TX-AK714T include inertial navigation?

No. TX-AK714T does not include inertial navigation, gyroscope, or accelerometer functions.
