Overview

The TOXU TX-G036 is a compact, low-profile active GNSS aviation antenna designed for multi-constellation and multi-frequency satellite-signal reception.

It supports compatible GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, and Galileo E1/E2/E5a/E5b signals. The antenna can be connected to a suitable multi-band GNSS or RTK receiver for UAV navigation, airborne positioning, mobile mapping, vehicle positioning, robotics, and other professional navigation systems.

The TX-G036 uses right-hand circular polarization and provides a specified antenna gain of at least 3.5dBi at 90° elevation. Its axial ratio is specified as no more than 3dB at 90° elevation, supporting compatible circularly polarized GNSS signal reception.

The integrated low-noise amplifier provides a specified gain of 36±2dB with a noise figure below 1.5dB. The active circuit operates from 3.3V to 18V DC and consumes less than 50mA.

The antenna has a nominal 50-ohm impedance and a VSWR below 2.0:1. Its standard configuration uses a TNC male connector for connection to a compatible RF cable assembly or GNSS receiver interface.

The low-profile housing measures Φ90 × 28.9mm and weighs less than 250g. The flange structure provides three mounting holes for mechanical installation on compatible equipment surfaces.

With IP67 protection, an operating temperature range of -40°C to +75°C, and a storage temperature range of -55°C to +85°C, the TX-G036 is suitable for demanding outdoor and mobile-equipment installations.

The TX-G036 is an active GNSS antenna only. It receives and amplifies compatible satellite signals but does not independently calculate position, process correction data, or provide RTK accuracy.

Key Features

Four-Constellation GNSS Reception

Supports compatible GPS, GLONASS, BDS, and Galileo satellite-navigation signals within the specified frequency bands.

Multi-Band L1/L2/L5 Capability

Designed for multi-frequency GNSS and RTK receiving systems used in aviation, UAV, mapping, vehicle, and industrial positioning applications.

RHCP Polarization

Right-hand circular polarization supports reception of compatible circularly polarized GNSS satellite signals.

Antenna Gain ≥3.5dBi at 90° Elevation

Provides the specified antenna gain performance under the corresponding test conditions.

Axial Ratio ≤3dB at 90° Elevation

Supports the specified circular-polarization performance at zenith.

Front-to-Back Ratio ≥15dB

The specified radiation characteristic helps reduce signal reception from the rear direction under the applicable test conditions.

36±2dB LNA Gain

The integrated active circuit amplifies received GNSS signals before delivering them to the connected receiver.

Noise Figure Below 1.5dB

The low-noise amplifier is designed to limit additional noise introduced during signal amplification.

VSWR Below 2.0:1

Provides the specified RF matching performance for integration with compatible nominal 50-ohm receiving systems.

Wide 3.3–18V DC Input

Supports antenna-bias power supplied through the RF connection by a compatible GNSS receiver or bias-tee circuit.

Current Consumption Below 50mA

The active antenna circuit operates with a specified current consumption of less than 50mA.

Low-Profile Flange-Mounting Structure

The compact circular enclosure and three-hole mounting flange support secure integration with compatible UAV, aviation, and mobile equipment.

TNC Male RF Connector

The threaded TNC male interface supports connection to compatible 50-ohm coaxial cable assemblies.

IP67-Rated Enclosure

The sealed housing supports outdoor installations exposed to dust and water when the complete antenna interface is correctly assembled and protected.

Technical Specifications

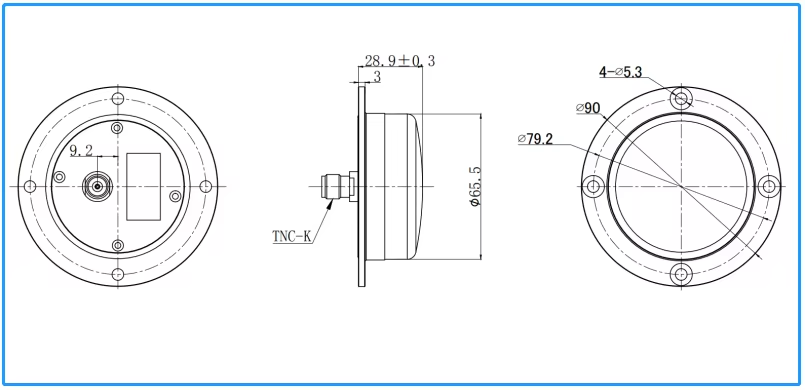

Dimension Drawing

The TX-G036 features a compact low-profile housing measuring Φ90 × 28.9mm. Its circular flange incorporates three mounting holes for installation on compatible equipment surfaces.

Applications

• Unmanned Aerial Vehicles

• Aviation Navigation Equipment

• Multi-Frequency GNSS and RTK Receivers

• Airborne Mapping Systems

• Mobile Surveying Equipment

• Autonomous Vehicles

• Outdoor Mobile Robots

• Machine-Control Systems

• Precision Agriculture Equipment

• Vehicle Positioning and Navigation Systems

• Industrial GNSS Equipment

System Integration

The TX-G036 must be connected to a compatible multi-band GNSS or RTK receiver supporting the required GPS, GLONASS, BDS, and Galileo signals.

The active antenna requires 3.3–18V DC bias power and consumes less than 50mA. Bias power is normally supplied through the RF cable by the connected receiver or a compatible external bias-tee circuit.

Before connection, confirm the receiver’s antenna-bias voltage, available current, supported frequency bands, input impedance, active-antenna detection, and short-circuit protection.

The standard TX-G036 uses a TNC male connector. A compatible TNC female connector and nominal 50-ohm coaxial cable should be used on the mating cable assembly.

Install the antenna horizontally with the upper radome facing the sky. The mounting surface, hole positions, fasteners, mechanical clearance, and waterproof sealing method should be confirmed against the approved drawing before installation.

For optimum reception, provide the clearest practical sky view and keep the antenna away from large metal obstructions, transmitting antennas, motors, switching power supplies, high-current cables, and other potential sources of reflection or electromagnetic interference.

The IP67 rating applies to the antenna enclosure under the specified product configuration. The mating connector, cable joint, mounting holes, and complete equipment installation must also be correctly sealed.

For RTK operation, the connected receiver must support RTK processing and receive valid correction data from a base station, NTRIP service, radio modem, cellular modem, or another compatible source.

Why Choose TOXU

TOXU provides GNSS and RTK antennas, UAV antennas, aviation antennas, embedded antennas, RF cable assemblies, RF connectors, GNSS modules, receiver boards, and integrated positioning hardware for equipment manufacturers and system integrators.

Our engineering team supports frequency selection, receiver compatibility evaluation, connector and cable configuration, antenna-bias confirmation, installation analysis, RF testing, sample verification, and customized antenna development.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports customized connectors, cable assemblies, labels, packaging, inspection, prototype verification, and stable volume-production delivery for overseas B2B projects.

FAQ

Q: Which GNSS constellations does the TX-G036 support?

A: It supports compatible GPS, GLONASS, BDS, and Galileo satellite-navigation signals within the frequency bands listed in the specification.

Q: Is the TX-G036 an active antenna?

A: Yes. It is an active GNSS antenna with a specified LNA gain of 36±2dB.

Q: Can this antenna provide RTK positioning independently?

A: No. It receives and amplifies compatible GNSS signals. RTK calculations and correction-data processing are performed by the connected GNSS receiver.

Q: What bias voltage does the antenna require?

A: The active circuit operates from 3.3V to 18V DC and consumes less than 50mA.

Q: Which connector does the TX-G036 use?

A: The standard configuration uses a TNC male connector, identified as TNC-K in the specification.

Q: What are the antenna dimensions?

A: The specified housing dimensions are Φ90 × 28.9mm.

Q: Is the antenna waterproof?

A: The enclosure is rated IP67. The connector, mounting holes, cable interface, and complete installation must also be properly sealed.

Q: Is it suitable for UAV applications?

A: Its low-profile flange structure and multi-band GNSS support make it suitable for compatible UAV and airborne positioning systems. Final suitability must be verified on the completed equipment.

Q: Can TOXU customize the connector or cable assembly?

A: Yes. TOXU can evaluate compatible connectors, coaxial cable types, cable lengths, labels, packaging, and other integration requirements.
