Overview

The TOXU TX-G050 Series is a family of compact multi-band active GNSS helical antennas designed for UAVs, GNSS receivers, RTK equipment, mobile mapping systems, autonomous machines, and other positioning devices.

The series includes multiple mechanical configurations for different installation requirements, including cable-connected cylindrical antennas, low-profile housings, straight or right-angle direct-mount antennas, and flexible gooseneck structures.

Depending on the selected model, the specified frequency coverage extends across compatible GNSS bands within approximately 1154–1621MHz. Each model must be selected according to the receiver’s supported signals, required installation structure, available space, connector configuration, and antenna-bias capability.

The available configurations use an active antenna design with a specified active gain of 38±2dB. The integrated active circuit amplifies received satellite signals before delivering them to a compatible GNSS receiver.

Right-hand circular polarization supports the reception of compatible circularly polarized satellite-navigation signals. The nominal 50-ohm impedance allows integration with common GNSS and RF receiving systems.

The TX-G050 Series comprises receiving antennas only. The antenna receives and amplifies compatible satellite signals but does not independently calculate position, process correction data, or provide RTK positioning accuracy.

Key Features

Multiple Mechanical Configurations

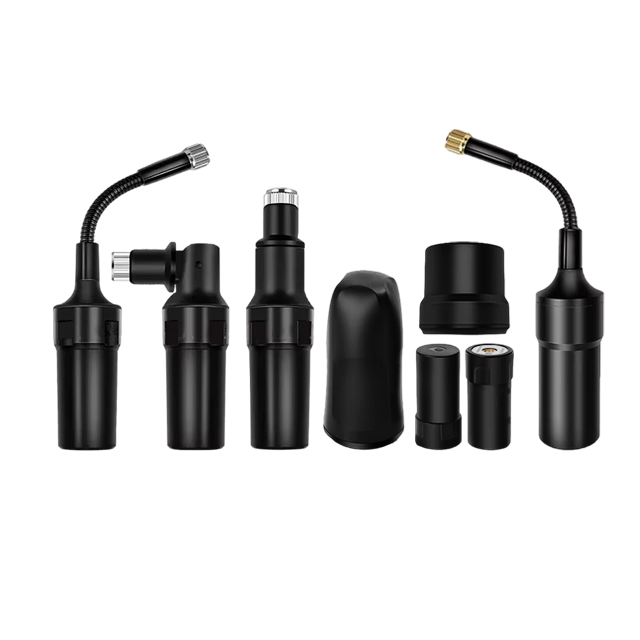

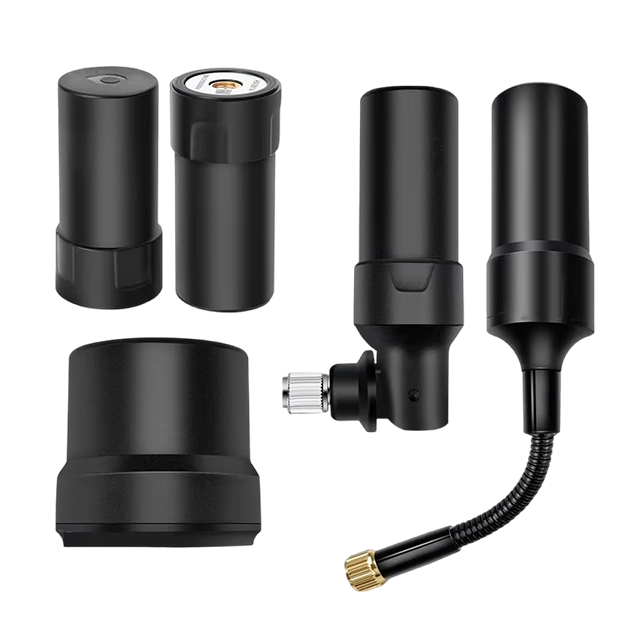

Available structures include cable-connected cylindrical, wide-body low-profile, straight direct-mount, right-angle direct-mount, and flexible gooseneck configurations.

Multi-Band GNSS Frequency Coverage

Different models cover compatible satellite-navigation signals within approximately 1154–1621MHz, depending on the selected antenna configuration.

Active Antenna Design

The integrated active circuit amplifies received GNSS signals before delivering them to the connected receiver.

Specified Active Gain of 38±2dB

Provides the specified signal-amplification performance under the applicable product test conditions.

RHCP Polarization

Right-hand circular polarization supports reception of compatible circularly polarized GNSS satellite signals.

Compact Integration

Multiple dimensions and mounting orientations support integration with UAVs, portable receivers, mobile terminals, vehicle equipment, and other space-limited positioning systems.

50-Ohm RF Interface

The nominal 50-ohm impedance supports connection to compatible GNSS receiver ports and RF cable assemblies.

Configurable Connector Arrangement

Connector gender, mounting orientation, RF cable length, and related cable assemblies can be evaluated according to the selected model and project requirements.

Suitable for OEM Integration

The series supports antenna selection and project adaptation for equipment manufacturers, system integrators, and other B2B positioning-hardware applications.

Available Models

The TX-G050 Series is available in several frequency and mechanical configurations. Select the appropriate model according to the required frequency coverage, antenna dimensions, mounting orientation, RF cable arrangement, connector interface, and available installation space.

Frequency coverage, connector gender, cable arrangement, overall dimensions, and mounting orientation vary by model. The final antenna configuration must be confirmed before sample production or ordering.

Technical Specifications

Model Dimensions

TX-G050-503

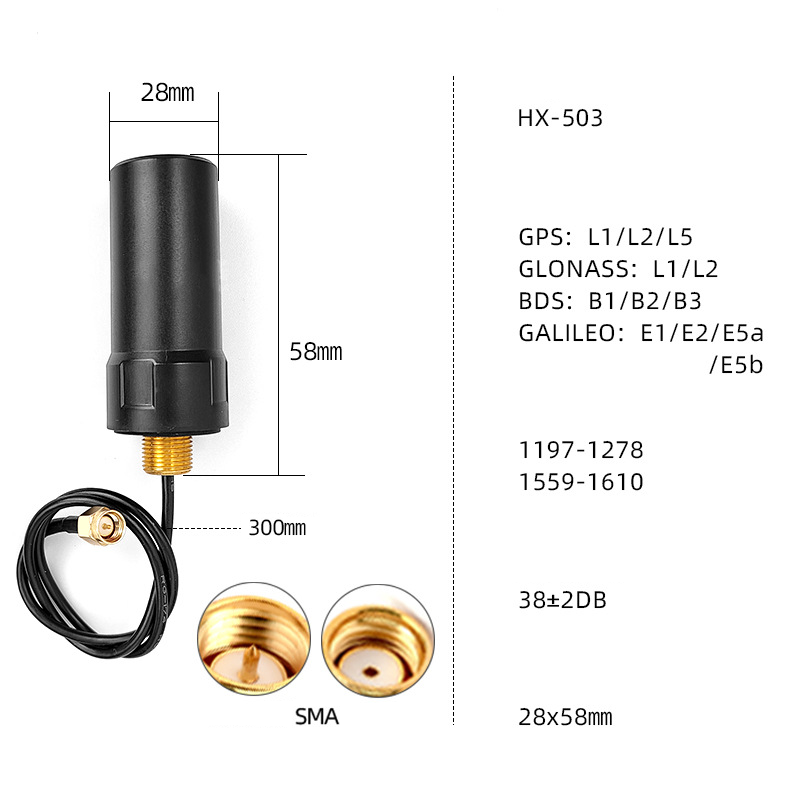

The TX-G050-503 uses a compact cylindrical enclosure measuring approximately Φ28 × 58mm. The supplied configuration includes an RF cable approximately 300mm long.

TX-G050-609

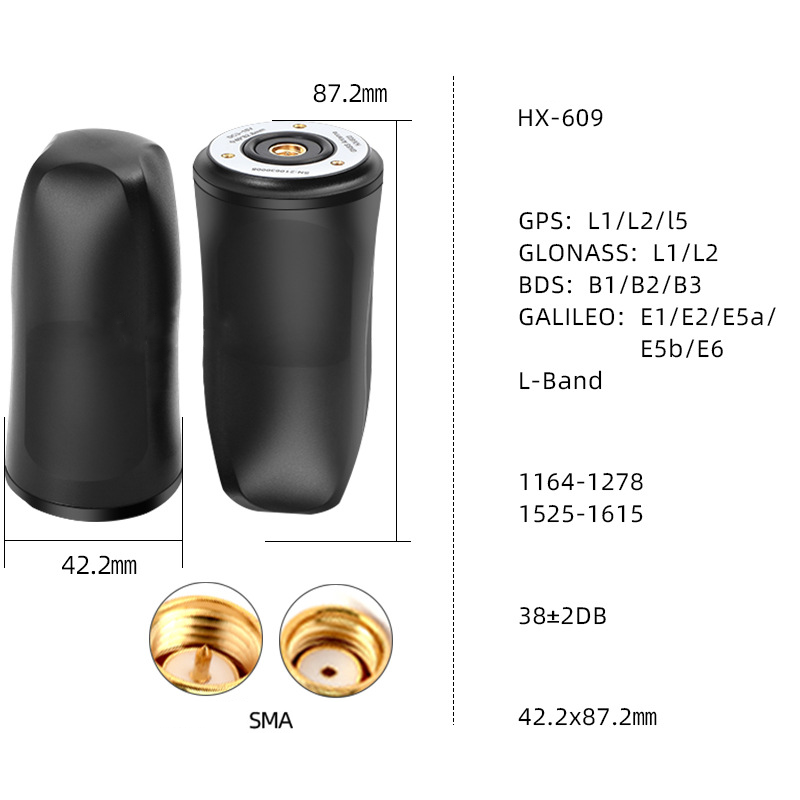

The TX-G050-609 uses a wide-body low-profile enclosure measuring approximately 42.2 × 87.2mm. Its structure supports equipment requiring a broader antenna housing and a compact overall height.

TX-G050-501

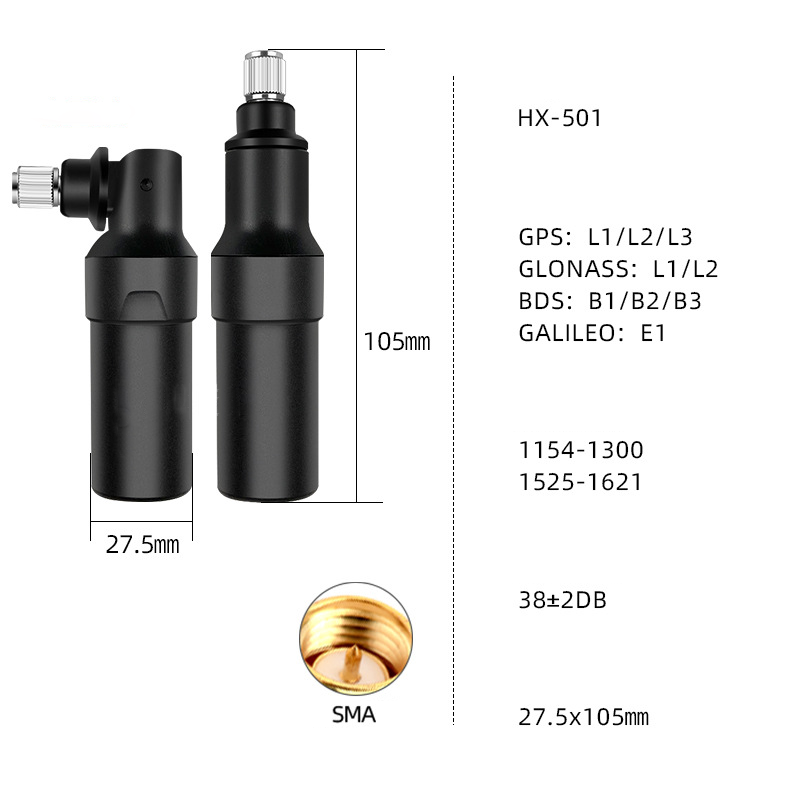

The TX-G050-501 measures approximately Φ27.5 × 105mm and is available in straight or right-angle direct-mount structures for different receiver-port orientations and installation spaces.

TX-G050-502

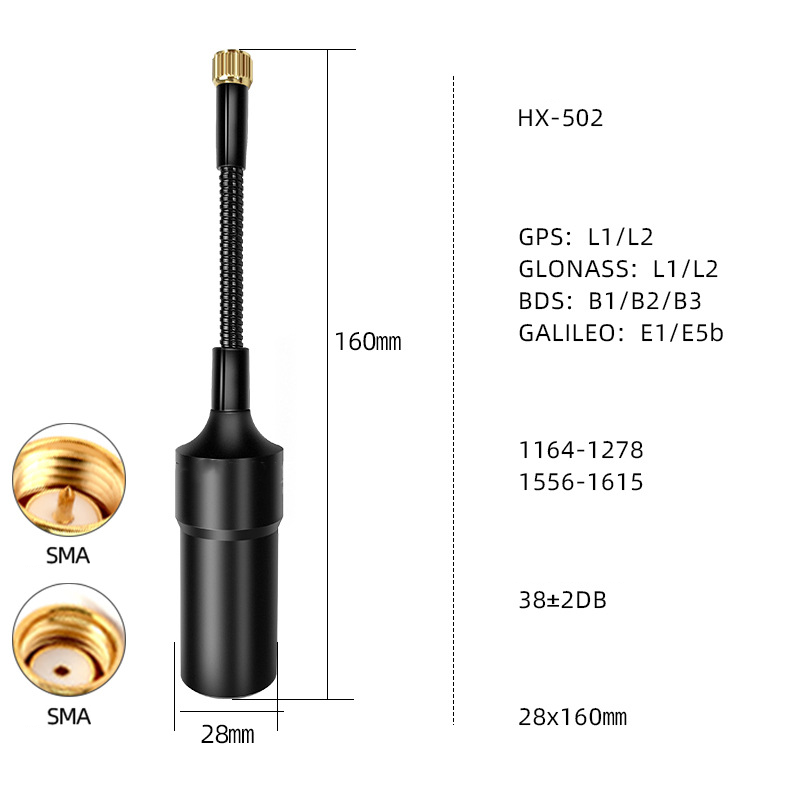

The TX-G050-502 uses a flexible gooseneck structure measuring approximately Φ28 × 160mm. The adjustable antenna body supports positioning and orientation according to the equipment installation.

Applications

• Unmanned Aerial Vehicles

• Multi-Band GNSS Receivers

• RTK Receiver Equipment

• Mobile Mapping Systems

• Surveying and Mapping Equipment

• Precision Agriculture Machinery

• Autonomous Robots and Vehicles

• Portable Positioning Terminals

• Industrial Navigation Equipment

• Vehicle Tracking and Positioning Systems

• Reference Stations and Field Receivers

• OEM Satellite-Navigation Equipment

Model Selection Guide

Choose TX-G050-503 for Cable-Connected Installation

The compact cylindrical housing and approximately 300mm RF cable support installations where the antenna and receiver port must be separated.

Choose TX-G050-609 for a Wide-Body Low-Profile Structure

The broader enclosure is suitable for equipment requiring a compact antenna height and a larger housing footprint.

Choose TX-G050-501 for Direct Receiver Connection

The straight and right-angle configurations support direct connection to compatible receiver ports with different installation orientations.

Choose TX-G050-502 for Adjustable Orientation

The flexible gooseneck structure allows the antenna body to be repositioned according to the equipment layout and required antenna orientation.

Before selecting a model, confirm the receiver frequency bands, active-antenna bias power, RF connector type and gender, available installation space, cable requirements, and expected operating environment.

System Integration

The TX-G050 Series must be connected to a compatible GNSS or RTK receiver supporting the frequency bands of the selected antenna model.

Because these are active antennas, the connected receiver must provide compatible DC bias power through the RF port. The required operating voltage, current, and protection requirements must be confirmed for the selected configuration before integration.

Connector gender and orientation are model dependent. Do not select a cable or receiver port solely according to the series name. Confirm the final connector drawing or approved sample before placing a volume order.

Install the antenna where it has the clearest practical sky view. Keep it away from large metal obstructions, transmitting antennas, motors, switching power supplies, high-current cables, and other possible sources of electromagnetic interference.

The final RF performance can be affected by the receiver, installation position, surrounding materials, equipment housing, cable loss, power supply quality, and nearby electronics. Sample testing in the actual equipment is recommended before volume production.

For RTK operation, the connected receiver must support RTK processing and receive valid correction data from a base station, NTRIP service, radio modem, cellular modem, or another compatible correction source.

The antenna itself does not generate positioning coordinates or determine positioning accuracy. Final performance depends on the complete GNSS receiver and system configuration.

Customization Options

Connector Configuration

Compatible SMA connector types, gender, straight or right-angle arrangements, and related RF adapters can be evaluated according to the receiver interface.

RF Cable Assembly

For cable-connected configurations, TOXU can evaluate cable type, cable length, connector combination, stripping dimensions, and assembly requirements.

Mechanical Configuration

Available structures include compact cylindrical, low-profile, straight, right-angle, and flexible gooseneck arrangements.

Branding and Packaging

Product labels, model markings, packaging methods, barcode information, and OEM identification can be evaluated for volume projects.

Receiver Compatibility Evaluation

TOXU can help evaluate frequency coverage, active-antenna bias compatibility, connector matching, cable loss, and installation requirements according to the customer’s receiver or terminal.

Why Choose TOXU

TOXU provides GNSS and RTK antennas, embedded antennas, external antennas, RF cable assemblies, RF connectors, GNSS modules, receiver boards, and integrated positioning hardware for equipment manufacturers and system integrators.

Our engineering team supports frequency selection, antenna-model comparison, receiver compatibility evaluation, connector and cable configuration, antenna-bias confirmation, installation analysis, RF testing, sample verification, and customized antenna development.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports customized connectors, cable assemblies, product labels, packaging, quality inspection, prototype verification, and stable volume-production delivery for overseas B2B projects.

For projects involving multiple mechanical options, TOXU can help select the appropriate TX-G050 configuration according to the receiver interface, installation space, required frequency coverage, and equipment application.

FAQ

Q: Is TX-G050 a single antenna model?

A: TX-G050 is a series containing several active GNSS antenna configurations. The available sub-models are TX-G050-503, TX-G050-609, TX-G050-501, and TX-G050-502.

Q: What frequency range does the TX-G050 Series cover?

A: Frequency coverage varies by model. Across the series, the available configurations cover compatible GNSS frequencies within approximately 1154–1621MHz.

Q: Do all TX-G050 models have the same dimensions?

A: No. Each model has a different enclosure, overall size, installation structure, and connector or cable arrangement.

Q: Are the TX-G050 antennas active or passive?

A: The listed TX-G050 configurations are active GNSS antennas with a specified active gain of 38±2dB.

Q: Does every model use the same SMA connector?

A: No. Connector gender and orientation may vary by model. The final connector configuration must be confirmed using the selected model’s drawing or approved sample.

Q: Which model includes an RF cable?

A: The TX-G050-503 configuration shown on this page includes an approximately 300mm RF cable. Cable configuration for any order must be confirmed before production.

Q: Which model is suitable for direct connection to a receiver?

A: The TX-G050-501 is available in straight or right-angle direct-mount configurations. Receiver-port type, connector gender, mechanical clearance, and bias power must be confirmed first.

Q: Which model has an adjustable antenna body?

A: The TX-G050-502 uses a flexible gooseneck structure that allows the antenna orientation to be adjusted according to the installation.

Q: Can the TX-G050 Series provide RTK positioning independently?

A: No. These antennas receive and amplify compatible satellite signals. RTK calculation, correction-data processing, and navigation output are handled by the connected GNSS receiver and system.

Q: How should I select the correct TX-G050 model?

A: Confirm the required frequency bands, receiver connector, active-antenna bias capability, installation space, mounting direction, cable requirement, and equipment operating environment.

Q: Can TOXU customize the antenna configuration?

A: Yes. TOXU can evaluate connector type, cable length, RF cable assembly, mechanical arrangement, labels, packaging, and other integration requirements according to the project.
