Overview

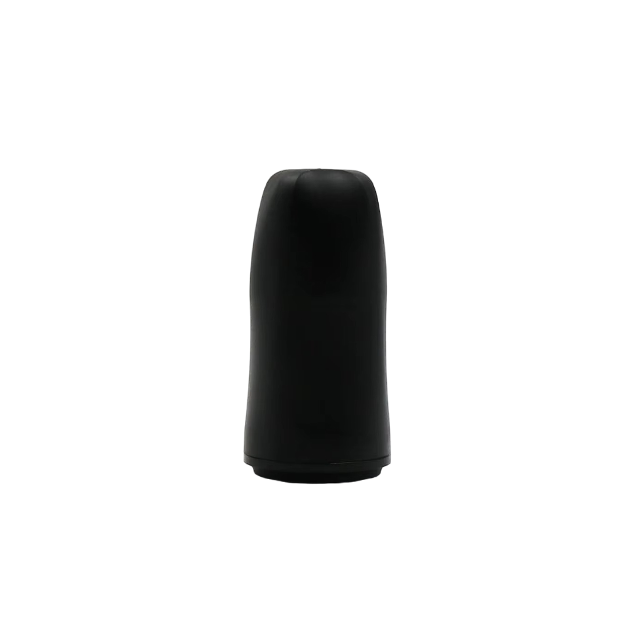

The TOXU TX-G049 is a compact active GNSS antenna designed for integration with compatible multi-band satellite-navigation receivers and positioning equipment.

The antenna covers two specified frequency ranges: 1164–1278MHz and 1525–1615MHz. These ranges support compatible multi-frequency GNSS receiving applications when paired with a receiver operating within the corresponding bands.

The TX-G049 uses right-hand circular polarization to receive compatible circularly polarized satellite-navigation signals. Its specified axial ratio is no more than 1.5dB under the applicable test conditions.

The product information specifies a gain of 35dB. Based on the active antenna configuration, this value is presented as the specified active gain rather than passive antenna-element gain.

With a nominal impedance of 50 ohms and a maximum VSWR of 2.0:1, the TX-G049 is designed for connection to compatible RF and GNSS receiving equipment.

The standard configuration uses an SMA male connector, identified as SMA-J in the supplied drawing. Its direct-connect structure can reduce the need for a separate antenna cable in compatible installations.

The antenna measures approximately 82.8mm in overall length and has a maximum diameter of approximately 40mm. Its compact ABS+PC enclosure and IP67-rated construction support mobile, outdoor, and space-limited equipment installations.

The TX-G049 is an active GNSS antenna only. It receives and amplifies compatible satellite signals but does not independently calculate position, process RTK correction data, or generate navigation output.

Key Features

Multi-Band GNSS Frequency Coverage

Covers 1164–1278MHz and 1525–1615MHz for compatible multi-frequency satellite-navigation receivers.

Active Antenna Configuration

The integrated active circuit amplifies received GNSS signals before delivering them to the connected receiver.

Specified Active Gain of 35dB

Provides the specified signal-amplification performance under the applicable product test conditions.

RHCP Polarization

Right-hand circular polarization supports reception of compatible circularly polarized GNSS satellite signals.

Axial Ratio ≤1.5dB

Provides the specified circular-polarization performance under the corresponding test conditions.

VSWR ≤2.0:1

Supports the specified RF matching performance for integration with compatible nominal 50-ohm receiving systems.

SMA Male RF Connector

The standard SMA male interface supports direct connection to a compatible SMA female GNSS receiver port.

Compact Direct-Mount Structure

The approximately 82.8 × Φ40mm housing supports integration with receivers, terminals, and other equipment where installation space is limited.

ABS+PC Enclosure

The engineering-plastic enclosure provides a lightweight and durable external structure for compatible equipment installations.

IP67-Rated Housing

The sealed enclosure supports compatible outdoor installations when the connector and complete equipment interface are correctly assembled and protected.

Technical Specifications

Dimension Drawing

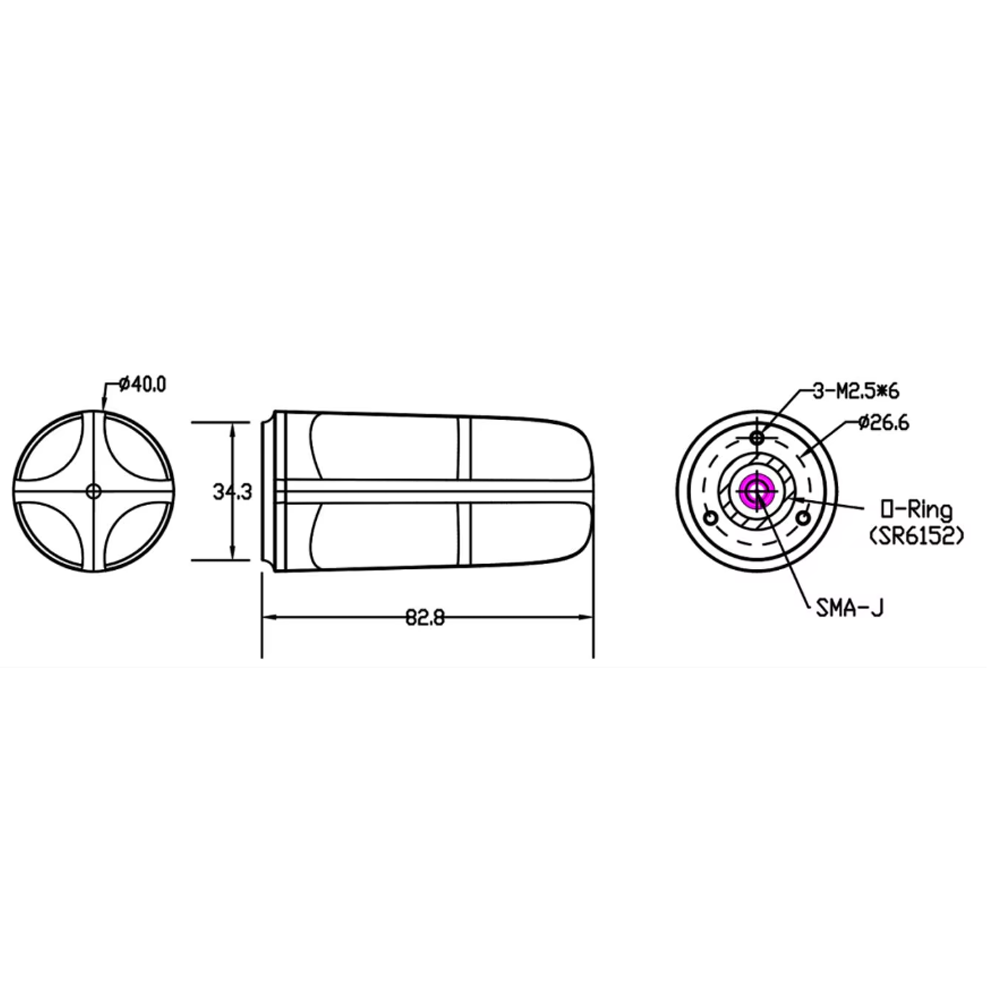

The TX-G049 has an overall length of approximately 82.8mm and a maximum diameter of approximately 40mm. The main body width shown in the supplied drawing is approximately 34.3mm.

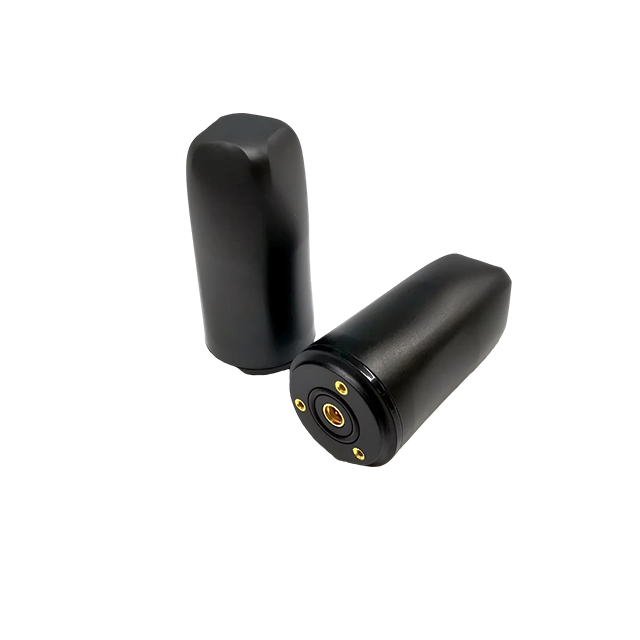

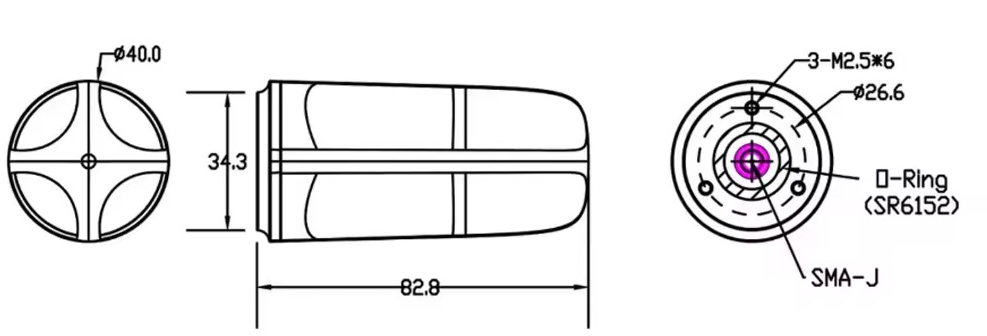

The antenna uses an SMA male connector at the base. Three M2.5 × 6 screw positions and an SR6152 O-ring are shown in the supplied mechanical drawing.

Applications

• Multi-Band GNSS Receivers

• RTK Receiver Equipment

• Unmanned Aerial Vehicles

• Vehicle Positioning Systems

• Mobile Mapping Equipment

• Precision Agriculture Equipment

• Autonomous Machines and Robots

• Industrial Navigation Terminals

• Surveying and Mapping Equipment

• Outdoor Positioning Devices

System Integration

The TX-G049 must be connected to a compatible GNSS or RTK receiver supporting the required frequency bands.

Because the TX-G049 is an active antenna, the connected receiver must provide compatible DC bias power through the RF port. The required voltage, current, and short-circuit protection should be confirmed before integration because these values are not listed in the supplied product information.

The standard antenna uses an SMA male connector. The connected receiver or cable assembly should therefore provide a compatible SMA female 50-ohm interface.

Before installation, confirm the receiver’s supported frequency bands, antenna-bias capability, input impedance, active-antenna detection function, available mechanical clearance, and connector orientation.

Install the antenna where it has the clearest practical sky view. Keep it away from large metal obstructions, transmitting antennas, motors, switching power supplies, high-current cables, and other possible sources of signal blockage or electromagnetic interference.

Although the enclosure is specified as IP67, the connector and complete equipment interface must also be correctly assembled and sealed for outdoor use.

For RTK operation, the connected receiver must support RTK processing and receive valid correction data from a base station, NTRIP service, radio modem, cellular modem, or another compatible correction source.

Why Choose TOXU

TOXU provides GNSS and RTK antennas, embedded antennas, external antennas, RF cable assemblies, RF connectors, GNSS modules, receiver boards, and integrated positioning hardware for equipment manufacturers and system integrators.

Our engineering team supports frequency selection, receiver compatibility evaluation, connector and cable configuration, antenna-bias confirmation, installation analysis, RF testing, sample verification, and customized antenna development.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports customized connectors, cable assemblies, labels, packaging, quality inspection, prototype verification, and stable volume-production delivery for overseas B2B projects.

FAQ

Q: What frequency ranges does the TX-G049 cover?

A: It covers 1164–1278MHz and 1525–1615MHz for compatible multi-band GNSS receiving equipment.

Q: Is the TX-G049 an active antenna?

A: Yes. It is an active GNSS antenna with a specified active gain of 35dB.

Q: Which GNSS constellations does it support?

A: The supplied information specifies only the frequency ranges and does not provide a complete constellation and signal list. Compatibility should be confirmed according to the connected receiver and required frequency bands.

Q: Can the TX-G049 provide RTK positioning independently?

A: No. It receives and amplifies compatible GNSS signals. RTK calculations and correction-data processing are performed by the connected GNSS receiver.

Q: Which connector does the TX-G049 use?

A: The standard configuration uses an SMA male connector, identified as SMA-J in the mechanical drawing.

Q: Can the antenna connect directly to a receiver?

A: Yes, when the receiver has a compatible SMA female port, 50-ohm impedance, sufficient mechanical clearance, and suitable active-antenna bias power.

Q: What are the dimensions of the TX-G049?

A: The overall length is approximately 82.8mm, the maximum diameter is approximately 40mm, and the main body width shown in the drawing is approximately 34.3mm.

Q: Is the TX-G049 waterproof?

A: The enclosure is specified as IP67. The SMA connection and complete equipment interface must also be correctly assembled and sealed.

Q: Can TOXU customize the connector or related cable assembly?

A: Yes. TOXU can evaluate compatible connectors, RF cable types, cable lengths, adapters, labels, packaging, and other integration requirements.
