Overview

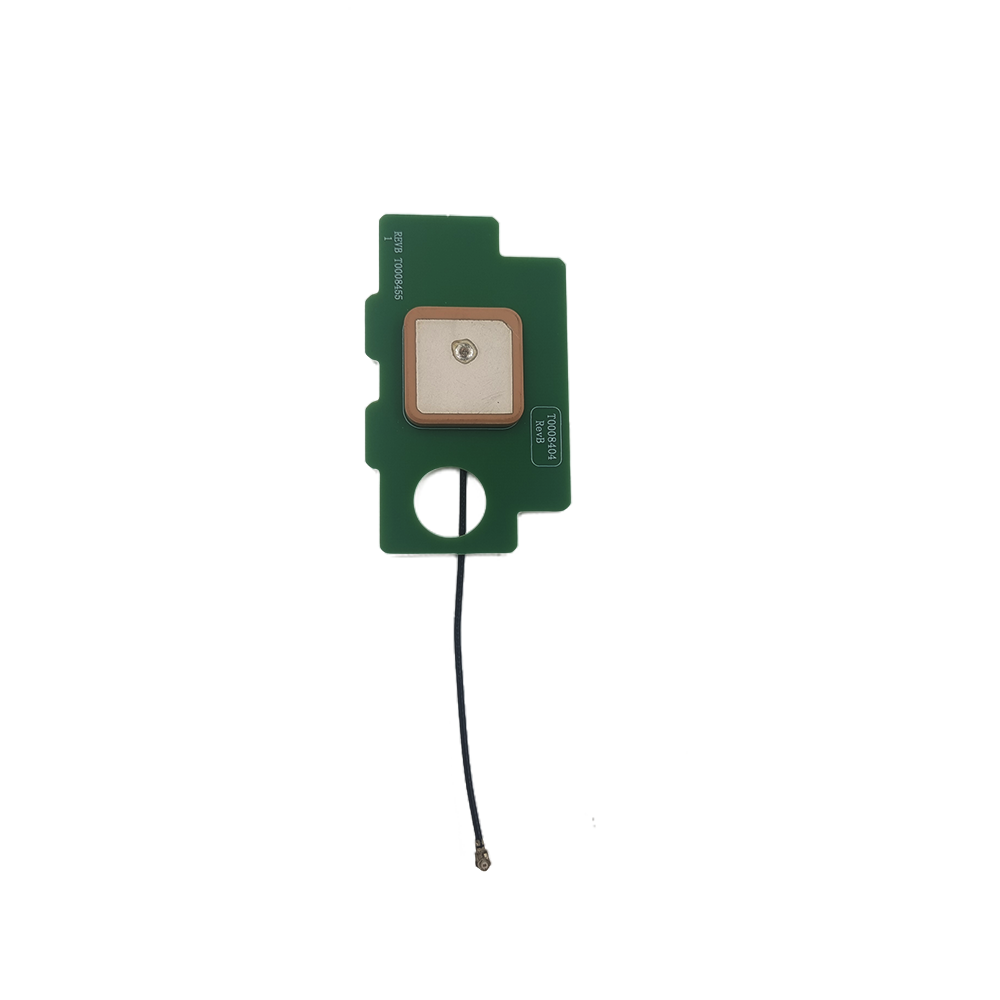

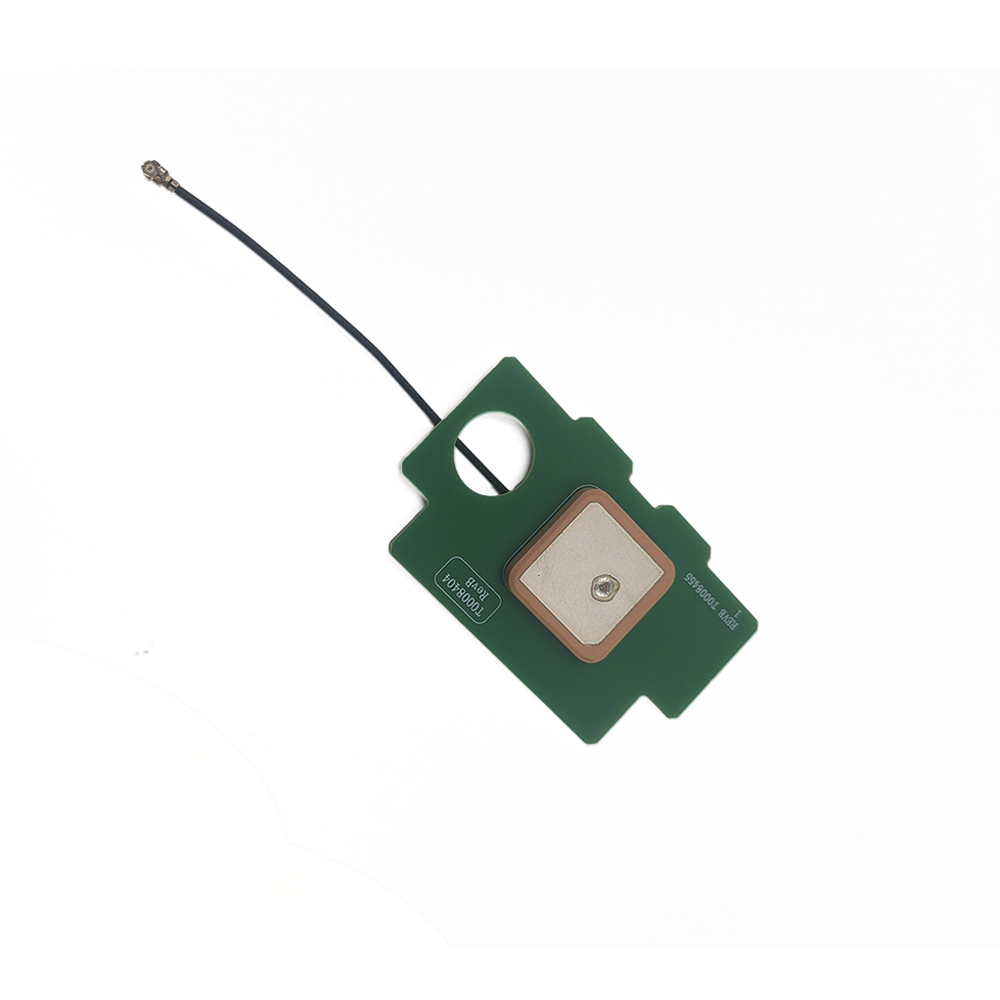

The TOXU KC.WA.00043 is a passive ceramic patch antenna designed for GPS, BeiDou, and GLONASS systems. With a standard 25×25×4 mm ceramic patch mounted on a PCB base, it delivers stable performance across 1560–1602 MHz. Its optimized passive design ensures low power consumption and consistent signal reception in compact electronic devices.

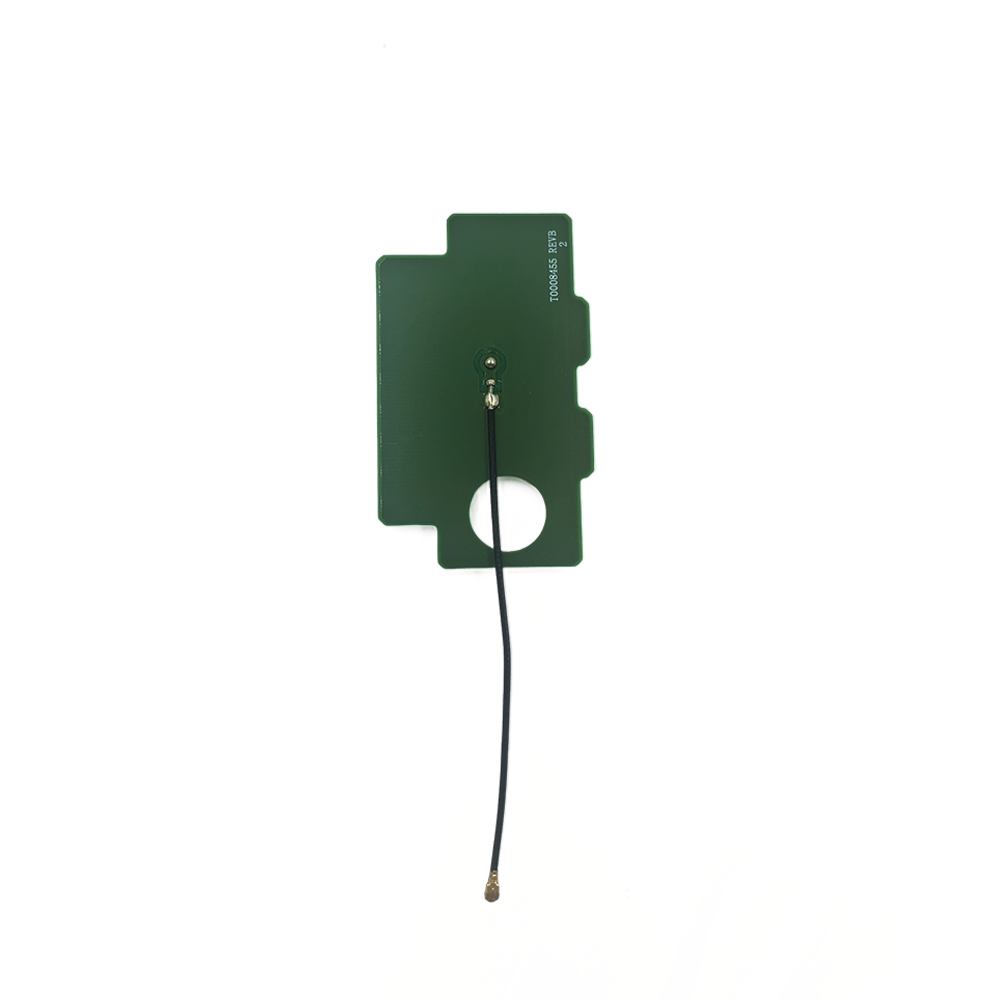

Equipped with an RF1.37 cable and IPEX connector, the KC.WA.00043 is easy to integrate into automotive navigation systems, IoT positioning modules, and smart terminals. Supporting OEM/ODM customization for cable length, connector type, and mounting structure, this antenna provides flexibility for engineers seeking reliable GNSS integration. RoHS & REACH compliance ensures long-term durability and global acceptance.

Technical Specifications

Applications

• Automotive navigation and in-dash systems

• GNSS positioning modules and IoT devices

• Smart terminals and consumer navigation products

• GPS/BD/GLONASS multi-system embedded solutions

Why Choose TOXU

• Over 13 years of GNSS antenna R&D and manufacturing experience

• IATF16949 & ISO9001 certified automotive-grade production

• Comprehensive in-house testing: gain, VSWR, and reliability

• OEM/ODM customization: cable length, connector, PCB base options

• Trusted by global automotive and IoT solution providers

FAQ – Frequently Asked Questions

• Q1: Are you a manufacturer?
  A1: Yes. TOXU has over 13 years of experience in antenna R&D, design, and manufacturing. We are a factory, not a trading company.

• Q2: How can I get samples?
  A2: Samples are free of charge; you only need to cover the shipping cost.

• Q3: How do I place an OEM order?
  A3: After confirming product details, packaging, quantity, unit price, delivery, and payment terms, both parties sign an agreement. The buyer issues a formal PO, and we provide a PI with terms and conditions.

• Q4: What are your payment terms?
  A4: For samples or small orders: 100% payment before shipment. For bulk orders: 70% T/T deposit, balance paid before shipment.

• Q5: How long is your delivery time?
  A5: Samples: 7–15 working days after full payment. Bulk orders: 15–35 working days after receiving the deposit.

• Q6: What warranty do you provide?
  A6: All products come with a 1-year warranty.

• Q7: How do you handle after-sales service?
  A7: If you experience any issues after receiving the goods, please contact us immediately. Our team will provide a prompt solution.

• Q8: Can you support special designs or custom functions?
  A8: Yes. Our R&D team can develop customized solutions to meet your requirements.
