Overview

The TOXU TX-GVLB356.A is a multi-band passive GNSS ceramic patch antenna designed for high-performance positioning applications.

The antenna adopts a stacked ceramic patch structure with a single feed design, supporting multiple GNSS frequency bands including GPS L1/L5, BeiDou B1 and GLONASS G1.

With compact dimensions and stable radiation characteristics, TX-GVLB356.A provides an ideal antenna solution for RTK GNSS receivers, UAV systems, robotics, mapping equipment and precision navigation devices.

Key Features

Multi-Band GNSS Reception

Supports GPS L1, GPS L5, BeiDou B1 and GLONASS G1 signals for multi-constellation positioning applications.

Stacked Ceramic Patch Technology

The stacked patch design enables multi-frequency operation while maintaining compact mechanical dimensions.

Passive GNSS Antenna Design

Designed for integration with external GNSS receivers and RTK positioning modules.

Single Feed Architecture

One feed output combines multiple GNSS bands, helping simplify receiver system design.

Compact Embedded Structure

35×35mm ceramic patch format suitable for space-limited positioning devices.

Technical Specifications

Dimension Drawing

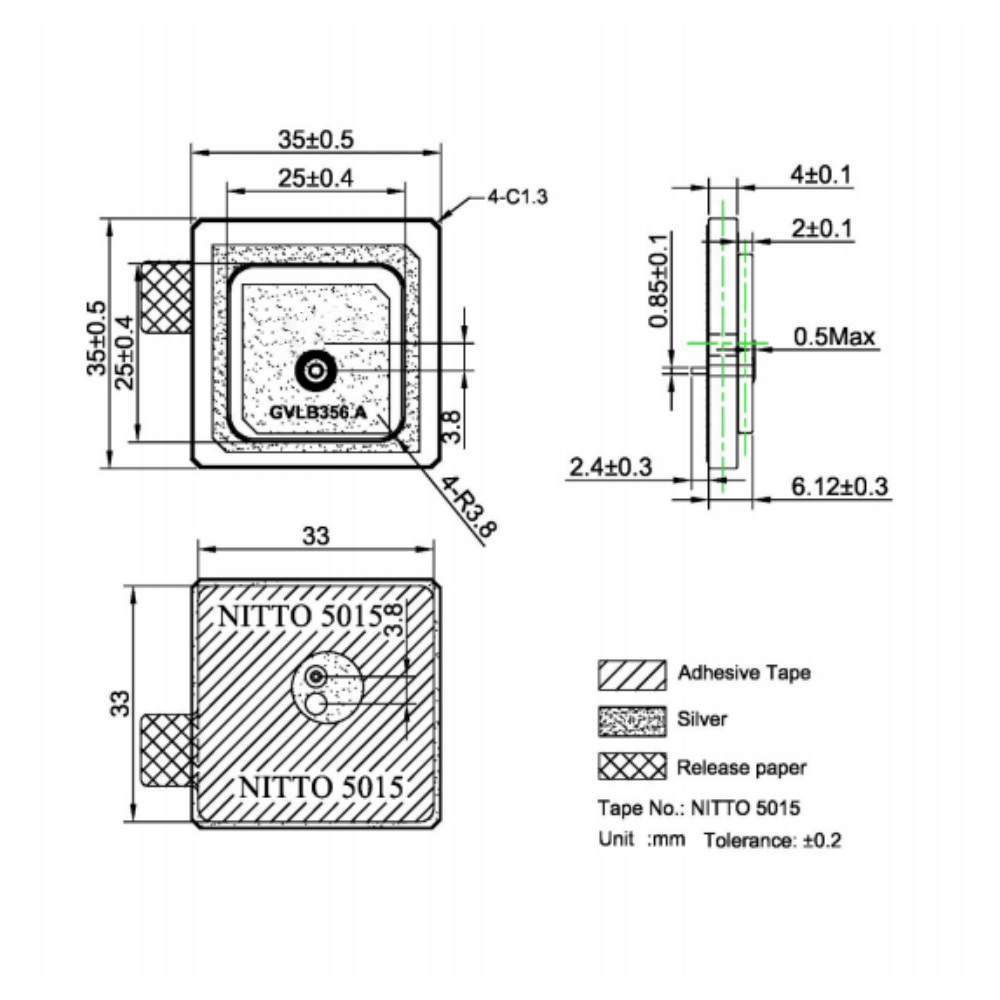

Mechanical drawing is available for antenna integration and PCB layout design.

Applications

RTK GNSS Equipment

Suitable for RTK receivers, positioning terminals and high-accuracy navigation systems.

UAV Navigation

Designed for drones requiring compact multi-band GNSS antenna solutions.

Surveying & Mapping

Applicable for surveying equipment, GIS systems and precision measurement devices.

Precision Agriculture

Supports agricultural machinery and smart farming positioning systems.

System Integration

TX-GVLB356.A GNSS Ceramic Patch Antenna

↓

RTK GNSS Receiver Module

↓

Controller / Navigation System

Why Choose TOXU

GNSS Antenna Engineering Capability

TOXU provides GNSS antenna design, RF tuning, testing and customized manufacturing services.

OEM & ODM Support

From prototype samples to mass production, TOXU supports customized GNSS antenna solutions.

Integrated RF Hardware Solution

TOXU provides antenna, RF cable assembly, connector and GNSS hardware integration services.

FAQ

Is TX-GVLB356.A an active antenna?

No. TX-GVLB356.A is a passive ceramic patch antenna and requires connection with an external GNSS receiver.

Can this antenna be used for RTK applications?

Yes. It is designed for integration with RTK GNSS receivers and precision positioning systems.

Can TOXU provide customization?

Yes. TOXU supports RF tuning, mechanical customization and OEM production.
