Model: TX-GPSFB356.A
The TX-GPSFB356.A is a multi-band GNSS ceramic patch antenna featuring a single-feed stacked patch structure. It supports GPS L1/L2, GLONASS G1, and BeiDou B1 frequency bands, providing a compact solution for embedded positioning devices requiring multi-constellation GNSS reception.
Key Features:
Multi-Band GNSS Coverage:
Supports GPS L1/L2, GLONASS G1, and BeiDou B1 satellite navigation bands.
Single Feed Stacked Patch Design:
Combines multiple GNSS bands through a single feed interface, simplifying receiver integration.
Compact Ceramic Structure:
35 × 35mm ceramic patch design with 6.12mm thickness for space-limited embedded applications.
RHCP Polarization:
Designed for GNSS signal reception with right-hand circular polarization characteristics.
OEM Customization Support:
Available for device-specific tuning and integration requirements.
The TX-GPSFB356.A is a multi-band GNSS ceramic patch antenna designed for embedded positioning applications. The antenna adopts a single-feed stacked patch structure, supporting GPS L1/L2, GLONASS G1, and BeiDou B1 frequency bands.
With a compact 35 × 35mm ceramic structure and 6.12mm height, the antenna provides a space-efficient solution for GNSS receivers, navigation devices, and industrial positioning equipment.
The stacked patch architecture combines multiple GNSS bands into one feed output, helping simplify RF design and reduce integration complexity.
Multi-Constellation GNSS Support
Supports GPS L1/L2, GLONASS G1, and BeiDou B1 frequency bands for multi-system satellite navigation applications.
Single Feed Stacked Ceramic Patch
The stacked patch design integrates multiple frequency bands with a single feed structure for easier receiver connection.
Compact Embedded Design
The 35 × 35 × 6.12mm ceramic package is suitable for applications requiring compact antenna integration.
Stable GNSS Signal Reception
RHCP polarization and optimized ceramic patch design support reliable satellite signal reception.
| Model | TX-GPSFB356.A |
| Antenna Type | Passive GNSS Ceramic Patch Antenna |
| Frequency | GPS L1: 1575.42MHz GPS L2: 1227.6MHz BeiDou B1: 1561MHz GLONASS G1: 1602MHz |
| Structure | Single Feed Stacked Patch |
| Polarization | RHCP |
| Impedance | 50Ω |
| VSWR | ≤2.0 (L1/B1/G1) ≤4.0 (L2) |
| Gain | Up to 3.54 dBic |
| Material | Ceramic |
| Dimension | 35 × 35 × 6.12mm |
| Weight | 20g |
| Operating Temperature | -40°C to +85°C |

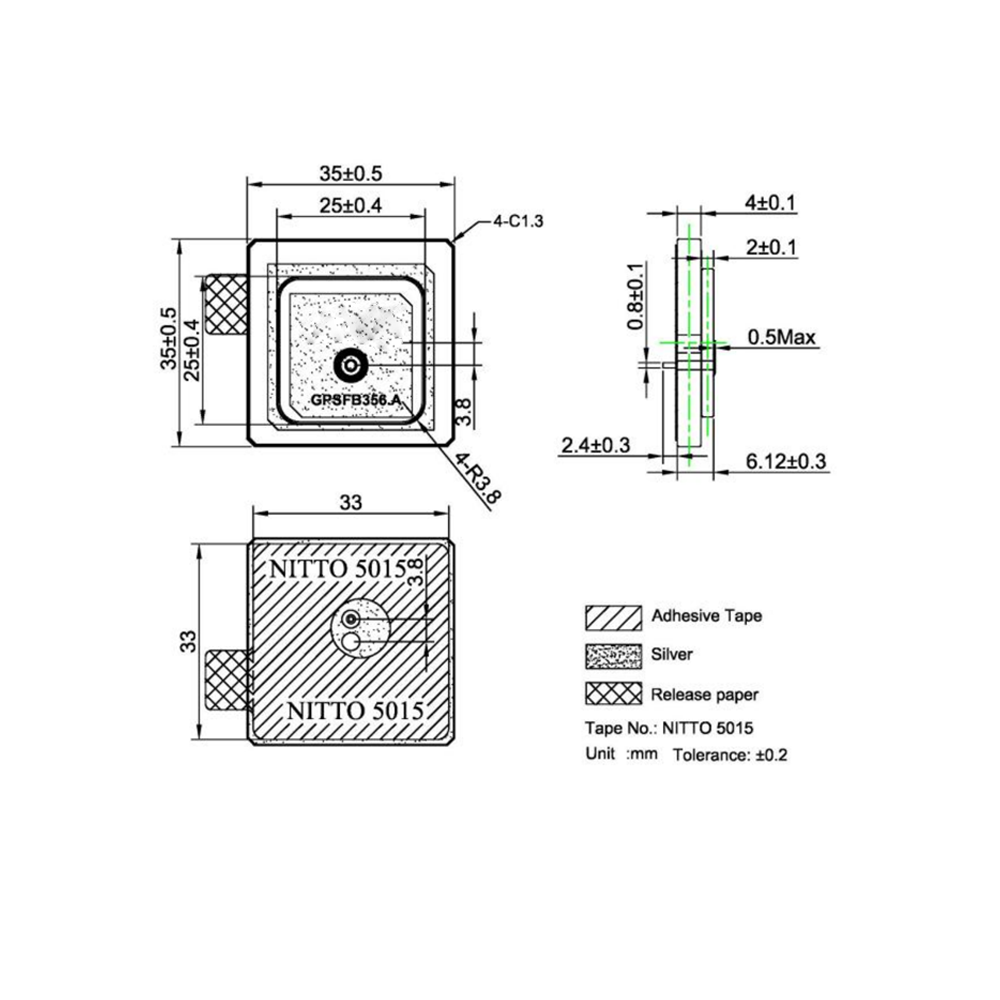

Mechanical drawing is available for product integration and antenna layout design.
• GNSS positioning equipment
• UAV and robotics systems
• Mapping and GIS equipment
• Transportation and telematics devices
• Precision agriculture systems
• Embedded navigation terminals
The TX-GPSFB356.A can be integrated with GNSS receiver modules, positioning terminals, and embedded navigation systems. Custom tuning services are available according to device structure and RF environment.
TOXU provides GNSS antenna design, customization, RF tuning, and manufacturing support for embedded positioning applications.
With antenna engineering capability and production experience, TOXU supports prototype development and mass production requirements for global customers.
Q: Is TX-GPSFB356.A an active antenna?
A: No. TX-GPSFB356.A is a passive ceramic patch antenna without built-in LNA.
Q: Which GNSS bands does this antenna support?
A: It supports GPS L1/L2, GLONASS G1, and BeiDou B1 bands.
Q: Can TOXU customize this antenna?
A: Yes. Custom tuning and integration support are available according to application requirements.
