Overview

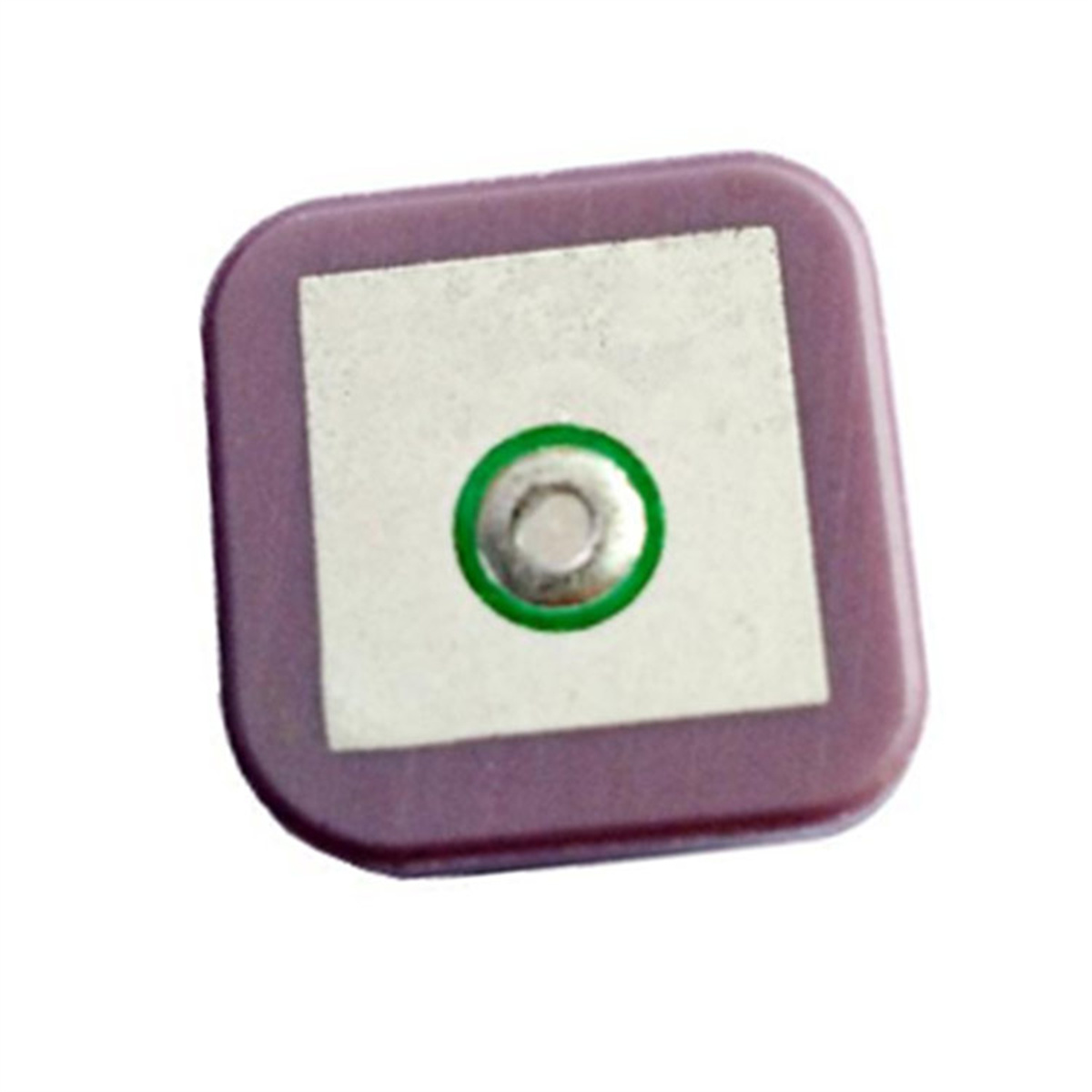

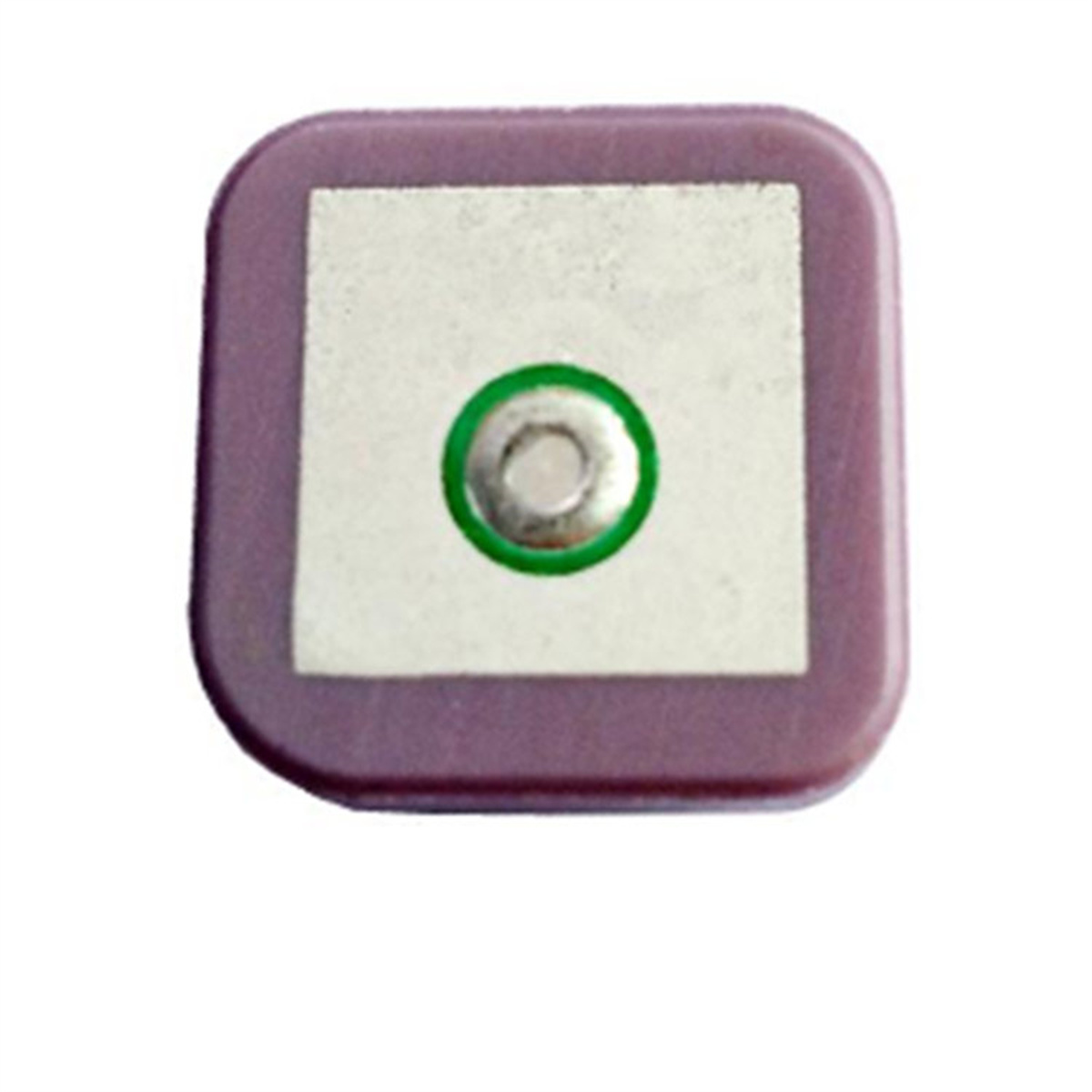

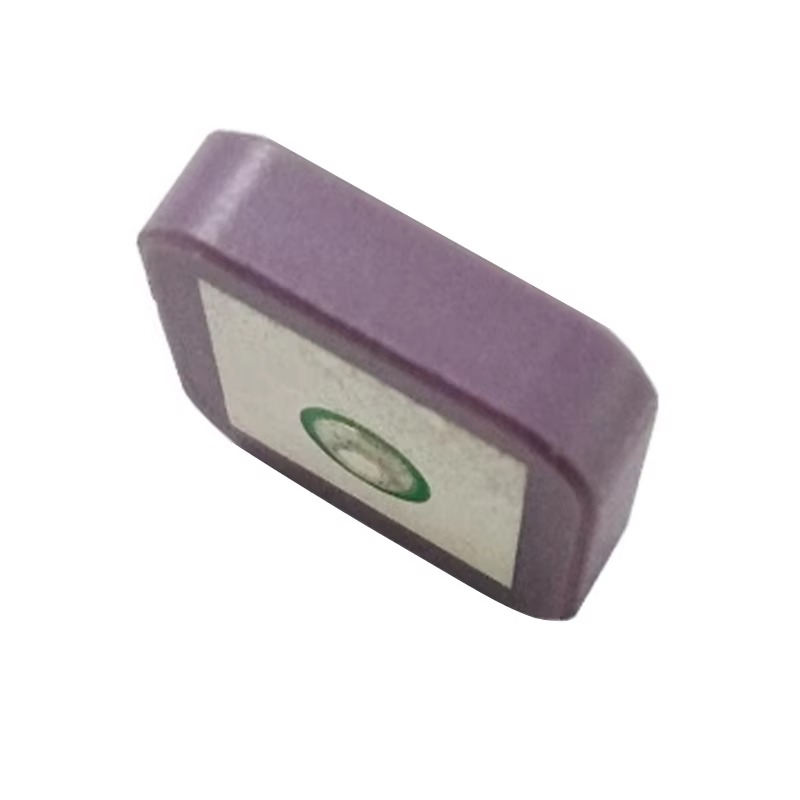

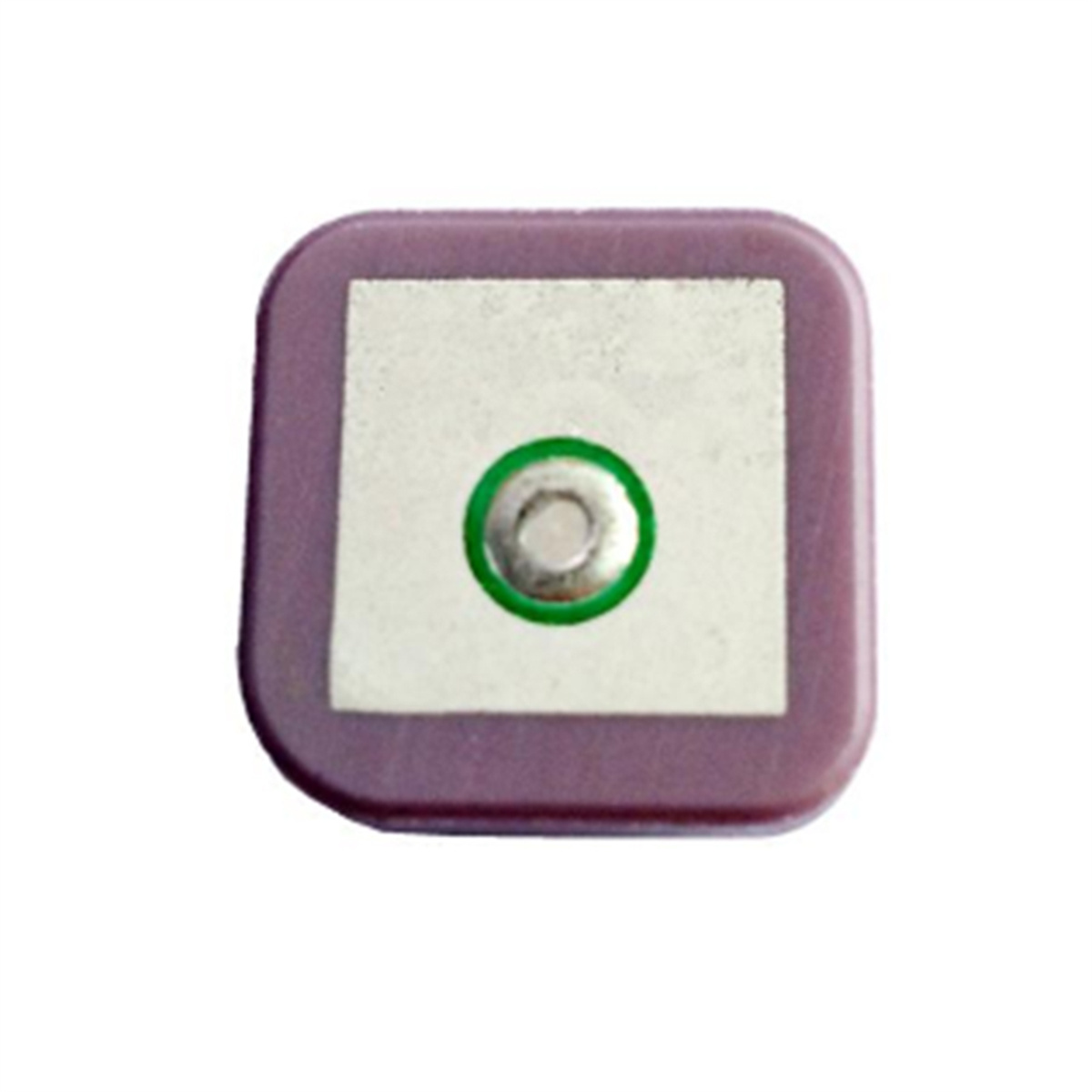

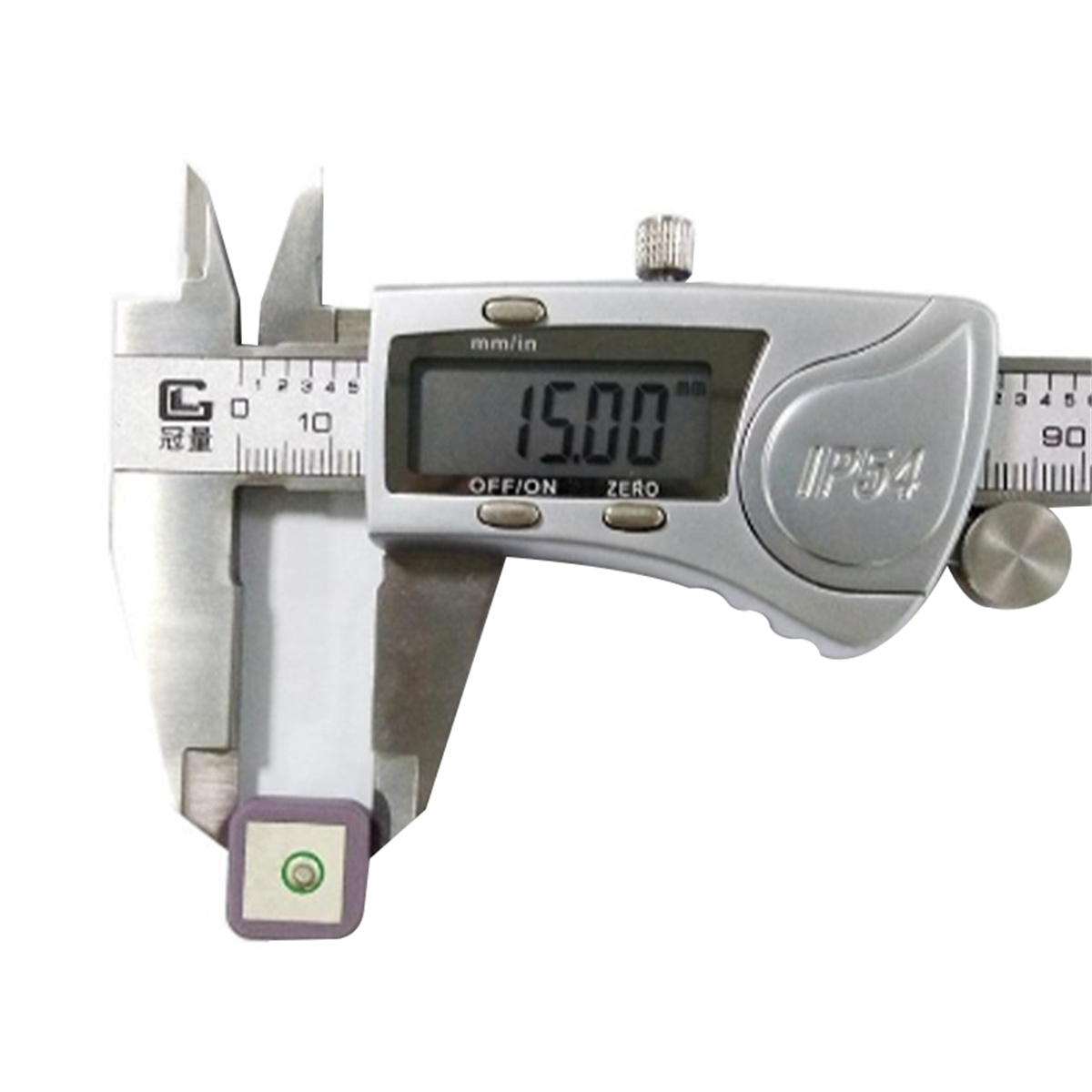

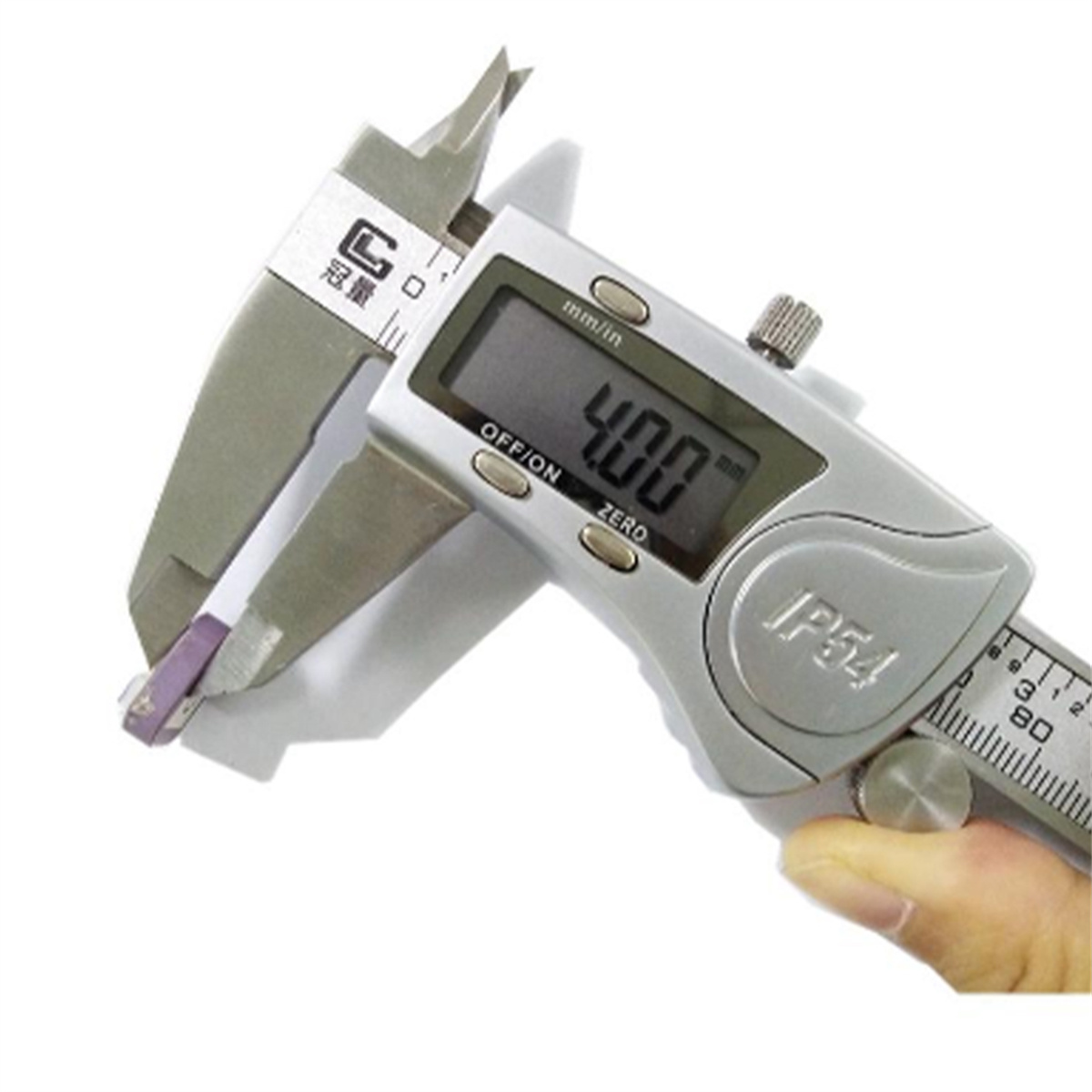

The TOXU TX-G010 is a mini active ceramic patch antenna designed for GPS/GNSS navigation applications in compact electronic devices. With its 15 × 15 × 4 mm low-profile form factor, it is ideal for integration in automotive systems, UAVs, wearables, and navigation devices where space is limited.

Operating at GPS L1 (1575.42 MHz), TX-G010 provides 2–5 dBi gain with a bandwidth of 10 MHz and VSWR ≤1.5. Its support for RHCP and linear polarization ensures stable reception across different use cases. Powered by a 3–5 V DC supply, the built-in low noise amplifier (LNA) enhances weak satellite signals, ensuring improved accuracy and stable connectivity even in challenging environments.

The antenna is CE & RoHS certified, guaranteeing compliance with international quality standards. TOXU offers OEM/ODM customization services, including tuning on customer ground planes, cable length options, and connector types (IPEX, MCX, MMCX, etc.), making it highly adaptable for diverse project requirements.

Technical Specifications

Applications

• Automotive GPS navigation and telematics systems

• UAV and drone GNSS positioning modules

• Wearable devices requiring GPS connectivity

• Compact navigation and IoT systems

Why Choose TOXU

• Over 13 years of GNSS antenna R&D and manufacturing experience

• IATF16949 & ISO9001 certified automotive-grade production

• In-house RF testing and reliability validation

• OEM/ODM flexibility: size tuning, ground plane optimization, labeling

• Global support for automotive, IoT, and embedded GNSS projects

FAQ – Frequently Asked Questions

• Q1: Are you a manufacturer?
  A1: Yes. TOXU has over 13 years of experience in antenna R&D, design, and manufacturing. We are a factory, not a trading company.

• Q2: How can I get samples?
  A2: Samples are free of charge; you only need to cover the shipping cost.

• Q3: How do I place an OEM order?
  A3: After confirming product details, packaging, quantity, unit price, delivery, and payment terms, both parties sign an agreement. The buyer issues a formal PO, and we provide a PI with terms and conditions.

• Q4: What are your payment terms?
  A4: For samples or small orders: 100% payment before shipment. For bulk orders: 70% T/T deposit, balance paid before shipment.

• Q5: How long is your delivery time?
  A5: Samples: 7–15 working days after full payment. Bulk orders: 15–35 working days after receiving the deposit.

• Q6: What warranty do you provide?
  A6: All products come with a 1-year warranty.

• Q7: How do you handle after-sales service?
  A7: If you experience any issues after receiving the goods, please contact us immediately. Our team will provide a prompt solution.

• Q8: Can you support special designs or custom functions?
  A8: Yes. Our R&D team can develop customized solutions to meet your requirements.
