Overview

The TOXU KS.WA.0076 is a compact dual-band RTK GNSS receiver designed for UAVs, drones, robotics, autonomous vehicles and other precision navigation systems.

The receiver is based on the u-blox ZED-F9P RTK GNSS module and supports GPS, GLONASS, Galileo, BeiDou and QZSS satellite navigation systems across L1 and L2 GNSS bands.

When valid RTK correction data, suitable satellite visibility and correct system configuration are available, the KS.WA.0076 supports horizontal and vertical RTK positioning accuracy of 0.01 m + 1 ppm.

Without RTK correction data, the product operates as a standard GNSS receiver with specified autonomous positioning accuracy of 1.5 m CEP.

The KS.WA.0076 integrates a QMC5883P electronic compass to provide magnetic heading information. USB Type-C, dual UART, TTL and I²C interfaces support connection to compatible flight controllers, embedded computers, telemetry equipment and robotic control systems.

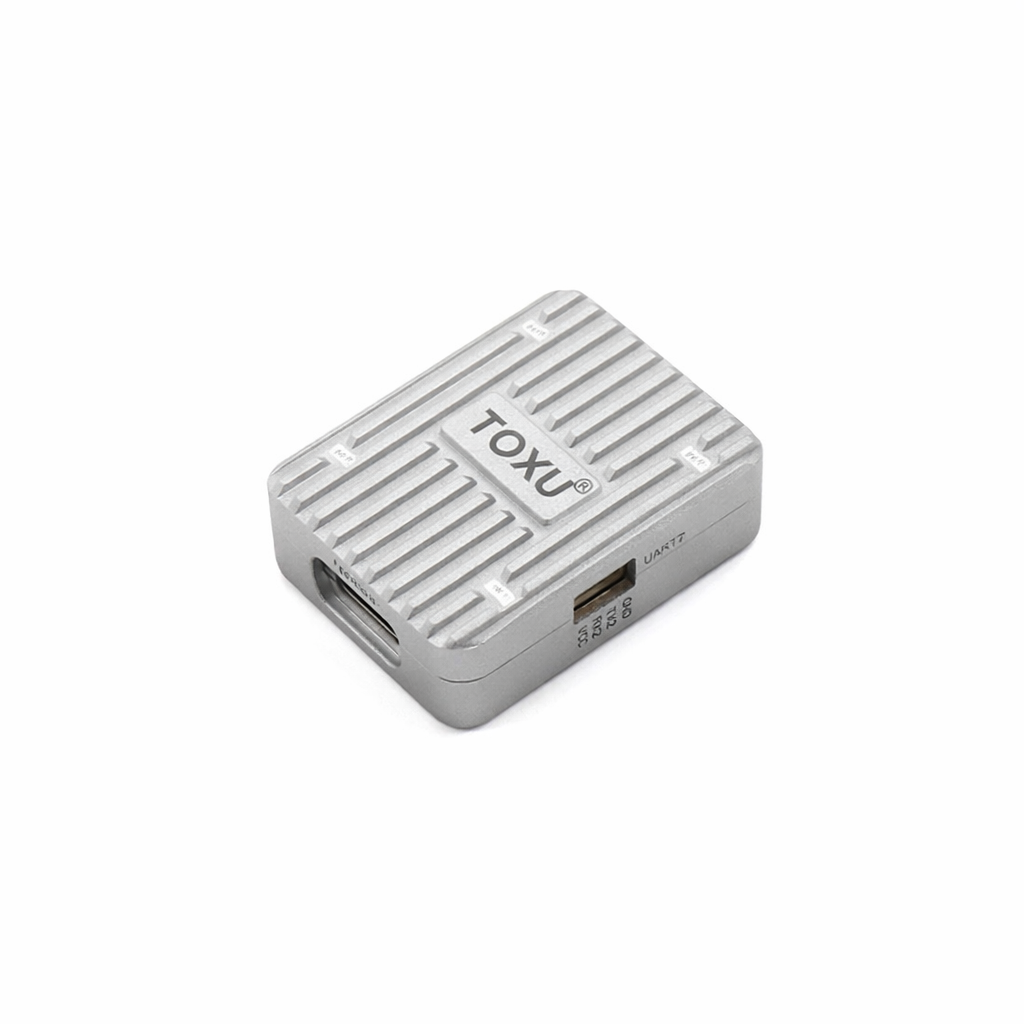

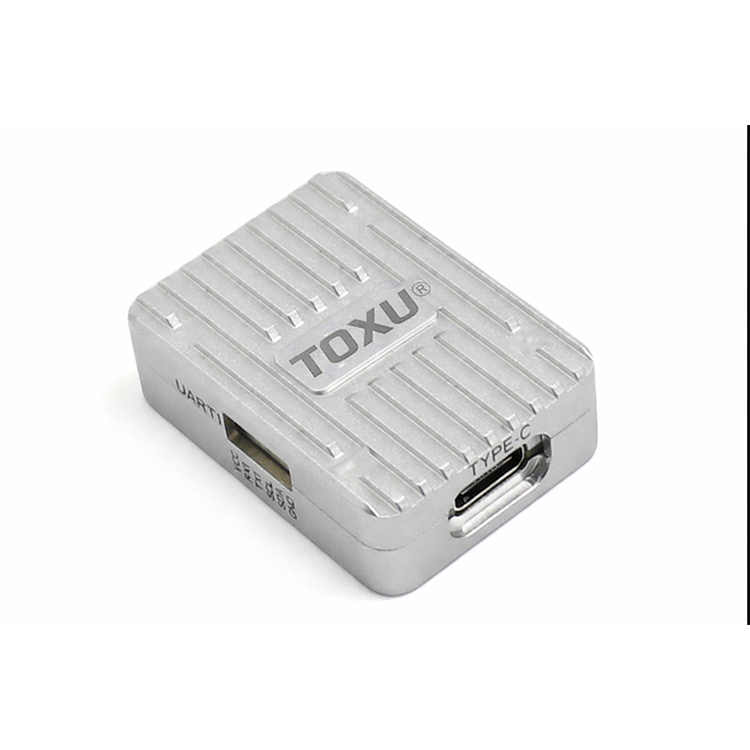

The receiver electronics are installed inside a compact 38 × 28 × 12.1 mm CNC aluminum housing, providing a practical integration solution for systems requiring a protected ZED-F9P receiver instead of a bare module or open receiver board.

Key Features

u-blox ZED-F9P RTK GNSS Module

The KS.WA.0076 integrates the u-blox ZED-F9P module to provide dual-band, multi-constellation GNSS reception and RTK positioning capability.

L1 and L2 Dual-Band Reception

Supports L1 and L2 GNSS bands for improved satellite-signal availability and reliable RTK operation.

Multi-Constellation GNSS Tracking

Supports concurrent reception of GPS, GLONASS, Galileo, BeiDou and QZSS satellite navigation systems.

184 Searching Channels

Provides 184 searching channels for supported multi-constellation and dual-band GNSS signals.

Centimeter-Level RTK Positioning

Supports horizontal and vertical RTK accuracy of 0.01 m + 1 ppm when valid correction data and suitable operating conditions are available.

Standard GNSS Positioning

Provides autonomous positioning accuracy of 1.5 m CEP when operating without RTK correction data.

Built-in QMC5883P Electronic Compass

The integrated QMC5883P electronic compass provides magnetic heading information for compatible flight-control and navigation systems.

Moving-Baseline GNSS Heading Support

The u-blox ZED-F9P platform can support moving-baseline heading when two compatible receivers and two GNSS antennas are correctly configured as a base and rover pair.

USB Type-C Interface

The USB Type-C interface supports receiver configuration, data communication and connection to compatible computers and host systems.

Dual UART Communication

Dual UART interfaces provide flexible data input and output for flight controllers, correction links and embedded navigation systems.

TTL and I²C Connectivity

TTL and I²C interfaces provide additional integration options for compatible embedded hardware.

UBX, NMEA and RTCM Protocol Support

Supports UBX configuration and navigation messages, NMEA data output and RTCM correction-data communication.

Up to 10 Hz Navigation Update

Supports a maximum navigation update rate of 10 Hz for dynamic positioning applications.

1PPS Timing Output

Provides specified 1PPS timing performance of 30 ns RMS and 60 ns at 99 percent.

Compact CNC Aluminum Housing

The 38 × 28 × 12.1 mm CNC aluminum enclosure provides a compact and protected structure for UAV and industrial integration.

Base and Rover Configuration

The receiver can be configured for compatible RTK base-station, rover and paired moving-baseline applications.

Technical Specifications

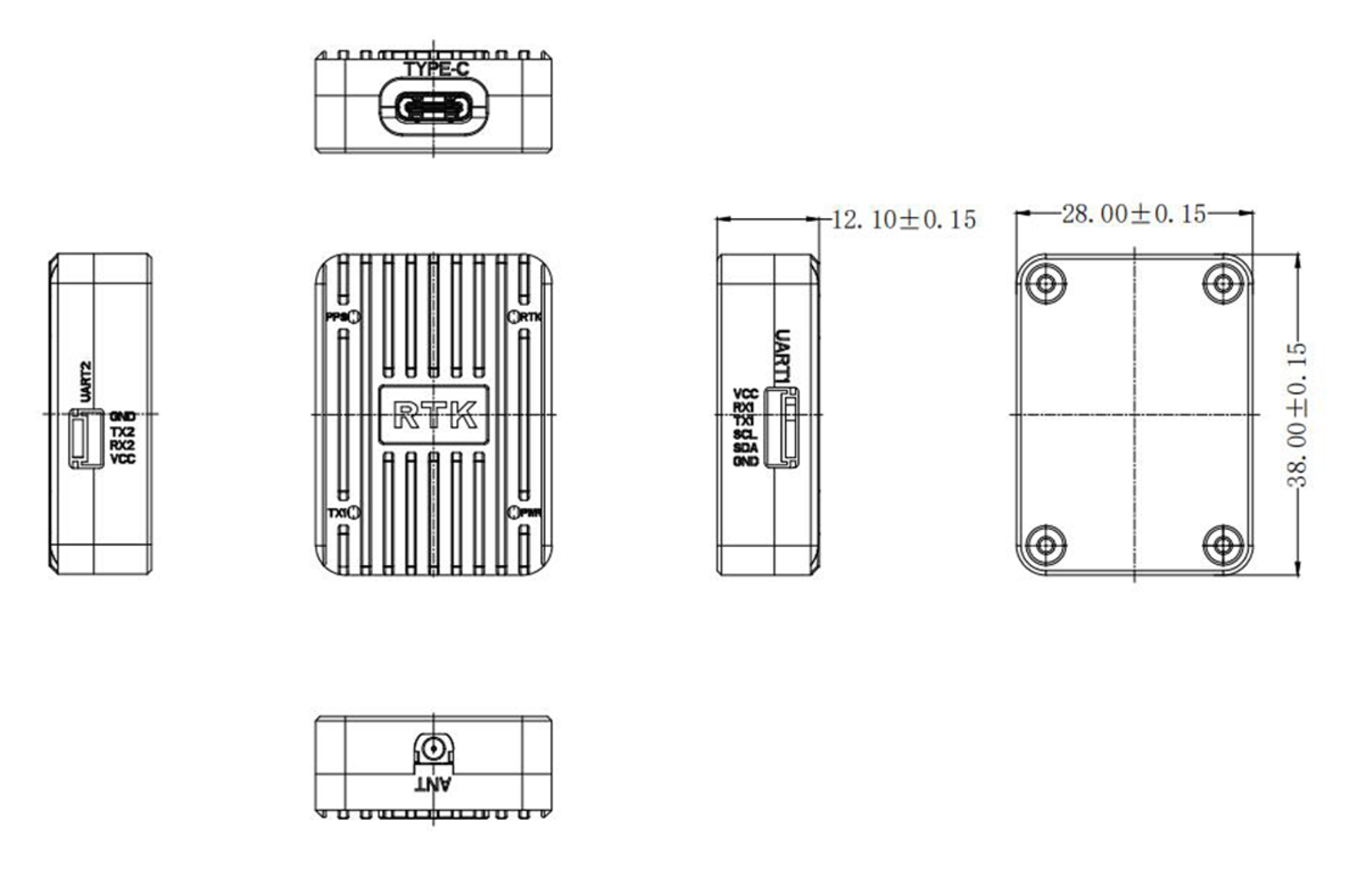

Dimension Drawing

The KS.WA.0076 receiver measures 38 × 28 × 12.1 mm.

A detailed mechanical drawing showing the mounting points, antenna connection and interface positions is available upon request.

Applications

UAV and Drone Navigation

Provides centimeter-level RTK position data for compatible multirotor, fixed-wing and other unmanned aerial platforms.

Pixhawk and PX4-Based Systems

Supports integration with compatible Pixhawk flight controllers and PX4-based autopilot systems through the available communication interfaces.

Robotics

Provides precise outdoor positioning for autonomous robots and unmanned ground vehicles.

Autonomous Vehicles

Can be connected to compatible vehicle controllers and embedded navigation computers requiring RTK GNSS data.

RTK Base and Rover Systems

Supports customized base-station and rover configurations when combined with suitable antennas, correction links and system software.

Moving-Baseline Heading Systems

Two compatible receivers can be configured with two GNSS antennas to provide moving-baseline position and heading information.

Industrial Precision Navigation

Suitable for embedded navigation and positioning equipment requiring a compact protected RTK receiver.

System Integration

The KS.WA.0076 receives multi-constellation GNSS signals through an external compatible dual-band antenna and outputs position data through USB or UART communication.

A typical RTK rover connection is:

Dual-Band GNSS Antenna → KS.WA.0076 Receiver → USB/UART → Flight Controller or Embedded Computer → Navigation System

RTK correction data may be delivered through a compatible base station, NTRIP service, telemetry radio or host controller.

A typical correction-data path is:

RTK Base Station or NTRIP Service → Data Link → KS.WA.0076 → RTK Position Output

For moving-baseline GNSS heading, two compatible receivers and two antennas are required:

Primary Antenna + Primary Receiver ↔ Secondary Antenna + Secondary Receiver → Moving-Baseline Position and Heading Output

The built-in QMC5883P compass provides magnetic heading information independently of the paired moving-baseline GNSS heading solution.

Before installation, customers should confirm the antenna type, connector, interface pinout, voltage level, baud rate, output protocol, correction-data source and flight-controller configuration.

Complete GNSS Solution Support

GNSS Antenna Matching

TOXU provides compatible dual-band GNSS antennas, including ceramic antennas, patch antennas, helical antennas and external RTK antennas.

RF Cable Assembly

TOXU provides customized RF cable assemblies with SMA, MMCX, MCX and other connector options.

Connector Solution

TOXU supports RF and signal connector selection according to the receiver, antenna, flight controller and equipment structure.

GNSS Board Development

TOXU can integrate u-blox ZED-F9P modules into customized receiver boards with project-specific dimensions and interfaces.

Base and Rover Configuration

TOXU can support receiver, antenna, cable and communication-hardware selection for customized RTK base and rover systems.

Hardware Customization

TOXU supports PCB design, prototype development, housing customization, cable assembly, product integration and mass production.

Why Choose TOXU

Complete RTK Hardware Capability

TOXU provides RTK receivers, GNSS antennas, RF cables, connectors and integration support for complete positioning systems.

Compact UAV Integration

The compact aluminum housing and multiple communication interfaces support integration into UAVs, robots and autonomous platforms.

Flexible Interface and Accessory Options

Customers can select compatible antennas, cables, connectors and communication configurations according to their application requirements.

Better Project Cost Control

TOXU can configure the receiver, antenna, RF cable and signal cable according to the actual project, helping customers avoid unnecessary accessories and control total hardware cost.

OEM and ODM Customization

TOXU supports customized receiver boards, housings, interface cables, connectors, labeling and packaging.

Prototype-to-Production Support

Our team supports prototype verification, component sourcing, PCB assembly, product integration and mass production.

Quality Management

TOXU operates under IATF 16949 and ISO 9001 quality-management systems to support consistent manufacturing and quality control.

FAQ – Frequently Asked Questions

Q: Is the KS.WA.0076 a GNSS module or a complete receiver?

It is a complete RTK GNSS receiver based on the u-blox ZED-F9P module. The product includes a carrier board, communication interfaces, electronic compass and CNC aluminum housing.

Q: Does the receiver support centimeter-level positioning?

Yes. It supports horizontal and vertical RTK accuracy of 0.01 m + 1 ppm when valid correction data and suitable operating conditions are available.

Q: Can it operate without RTK correction data?

Yes. It can provide standard GNSS positioning without correction data. The specified autonomous positioning accuracy is 1.5 m CEP.

Q: Does it include an electronic compass?

Yes. The KS.WA.0076 includes a QMC5883P electronic compass for magnetic heading output.

Q: Can one KS.WA.0076 provide dual-antenna GNSS heading?

No. One receiver provides RTK positioning and magnetic heading through the built-in compass. Moving-baseline GNSS heading requires two compatible receivers and two correctly installed GNSS antennas.

Q: Is the electronic compass the same as an INS?

No. The QMC5883P is an electronic compass. No complete IMU or GNSS/INS sensor-fusion function is specified for this receiver.

Q: Which data protocols are supported?

The receiver supports UBX, NMEA and RTCM protocols.

Q: Is it compatible with Pixhawk and PX4?

It is designed for integration with compatible Pixhawk and PX4-based systems. The connector pinout, voltage level, interface and firmware configuration must be confirmed before connection.

Q: Can it be configured as an RTK base station or rover?

Yes. The u-blox ZED-F9P platform supports compatible base-station and rover configurations.

Q: Is a GNSS antenna included?

The package contents should be confirmed according to the selected order configuration. TOXU can supply the receiver separately or provide a matched receiver, antenna and cable kit.

Q: Can TOXU customize the receiver and cables?

Yes. TOXU can evaluate customized receiver interfaces, housings, RF cable lengths, signal cables, connectors, labels and packaging.

Q: Can TOXU provide a complete RTK GNSS solution?

Yes. TOXU provides RTK receivers, matched GNSS antennas, RF cables, connectors and hardware-integration support for complete positioning systems.

Pixhawk is referenced for compatibility demonstration only. The flight controller is not included unless separately specified.
