Overview

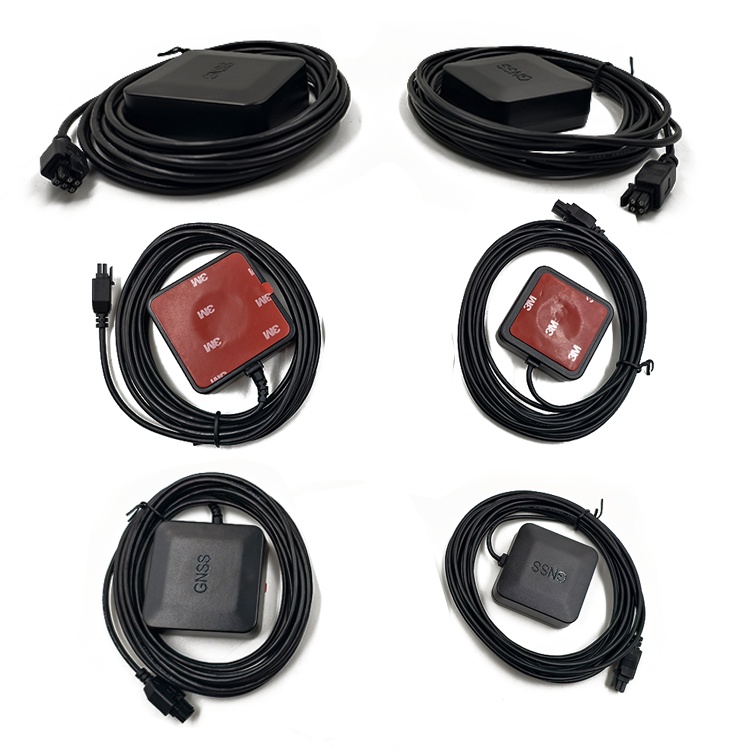

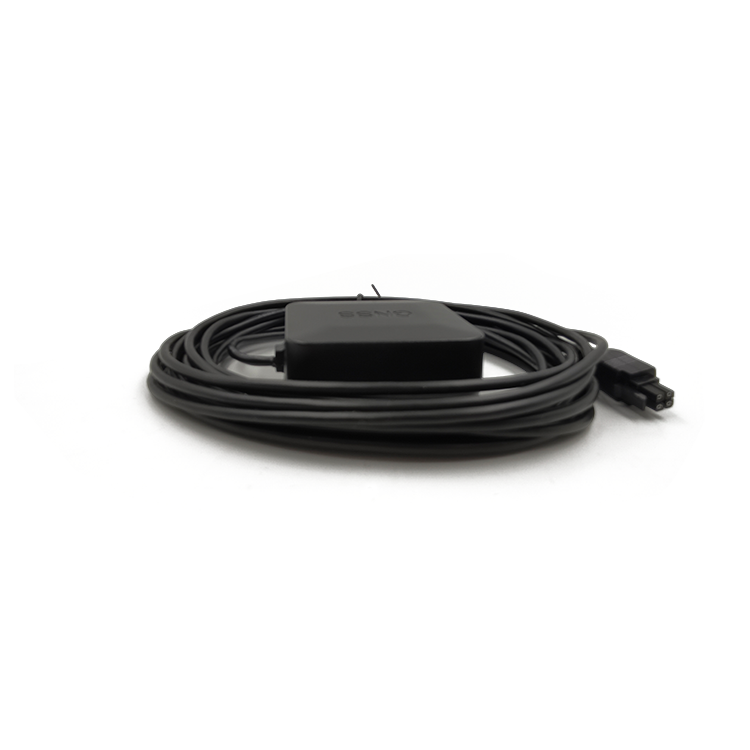

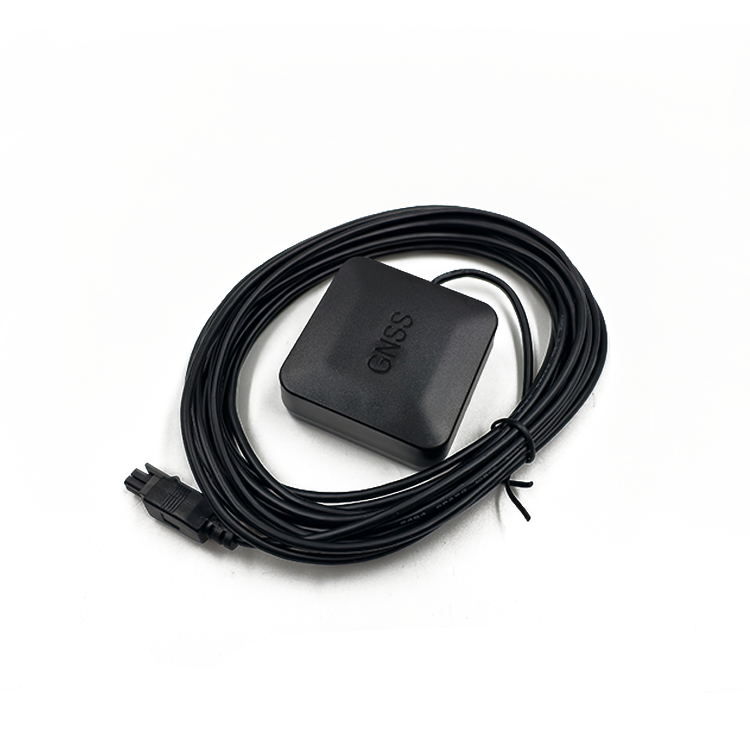

The TOXU TX-J-82M is a compact dual-band RTK GNSS positioning receiver developed for vehicle navigation, intelligent transportation, robotics, autonomous systems and precision agriculture.

The terminal combines a multi-system GNSS receiver, L1+L5 dual-band ceramic antenna, RTK positioning algorithms, navigation-algorithm support, communication interface, protective housing and 3 m cable in one integrated unit.

The TX-J-82M supports GPS/QZSS L1 C/A and L5, BeiDou B1I/B1C and B2a, and Galileo E1 and E5a signals. Its built-in antenna also covers GLONASS L1, IRNSS S-L5 and related supported navigation signals.

Under the specified open-sky test conditions, the receiver provides horizontal standalone positioning accuracy of less than 1.0 m CEP50. When used with a valid Qianxun FindCM high-precision correction service, it supports horizontal RTK positioning accuracy of less than 0.02 m CEP50.

The default communication interface is RS232. UART/TTL and USB 2.0 configurations are also supported, while the default six-pin connector configuration provides PPS output for time synchronization.

With a 5–36 V DC input range, IP67 protection, a 3 m cable and adhesive or magnetic mounting options, the TX-J-82M is suitable for integration into vehicle and industrial positioning equipment.

Key Features

L1+L5 Dual-Band GNSS Reception

Supports dual-band GNSS reception for improved satellite-signal availability and RTK positioning performance.

Multi-Constellation Satellite Support

Supports GPS, BeiDou, Galileo, GLONASS, QZSS, SBAS and IRNSS signals according to the specified receiver and antenna configuration.

Centimeter-Level RTK Capability

Supports horizontal RTK accuracy of less than 0.02 m CEP50 when valid high-precision correction data, suitable satellite visibility and correct system configuration are available.

Integrated Navigation Algorithm Support

Supports integrated navigation algorithms for applications requiring continued vehicle-positioning assistance. Detailed inertial-sensor configuration should be confirmed according to the ordered hardware version.

128 Tracking Channels

The receiver provides 128 tracking channels for supported multi-constellation GNSS signals.

Integrated Dual-Band Ceramic Antenna

Combines the GNSS receiver and a stacked four-feed ceramic antenna in one housing, reducing the need for a separate external GNSS antenna.

RS232 Communication Interface

The standard configuration uses an RS232 interface for connection to vehicle controllers, embedded computers and industrial navigation equipment.

UART/TTL and USB 2.0 Options

UART/TTL and USB 2.0 interface configurations are available for different system-integration requirements.

PPS Time-Pulse Output

The default six-pin configuration provides a PPS output for compatible systems requiring GNSS-based time synchronization.

Configurable Navigation Update Rate

Supports navigation update rates of 1 Hz, 5 Hz and 10 Hz for different positioning and dynamic-response requirements.

Fast Positioning Startup

Provides a specified cold-start time of 28 seconds, hot-start time of 1 second and assisted-start time of 3 seconds under the stated test conditions.

Qianxun Service Support

Supports Qianxun FindNow A-GNSS accelerated positioning and can use the FindCM high-precision correction service where service access and coverage are available.

5–36 V Wide-Voltage Input

The wide input-voltage range supports integration with vehicle and industrial power systems.

IP67 Protective Structure

The dustproof and waterproof housing provides IP67 protection for outdoor and vehicle-mounted applications.

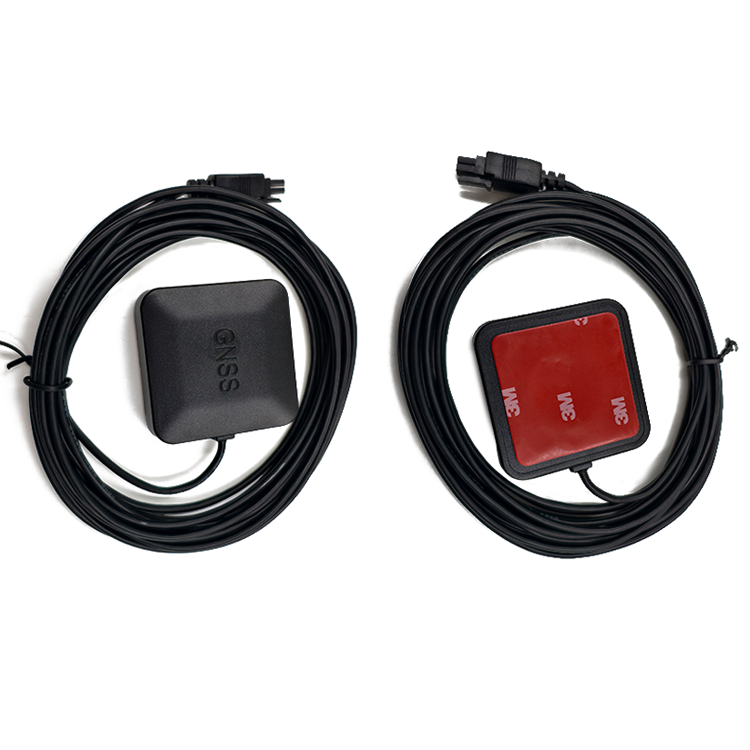

Flexible Installation

Supports fixed installation using 3M adhesive or a magnetic base according to the selected product configuration.

Technical Specifications

Built-in Antenna Specifications

Interface Definition

MX3.0 Four-Pin Interface

MX3.0 Six-Pin Interface with PPS

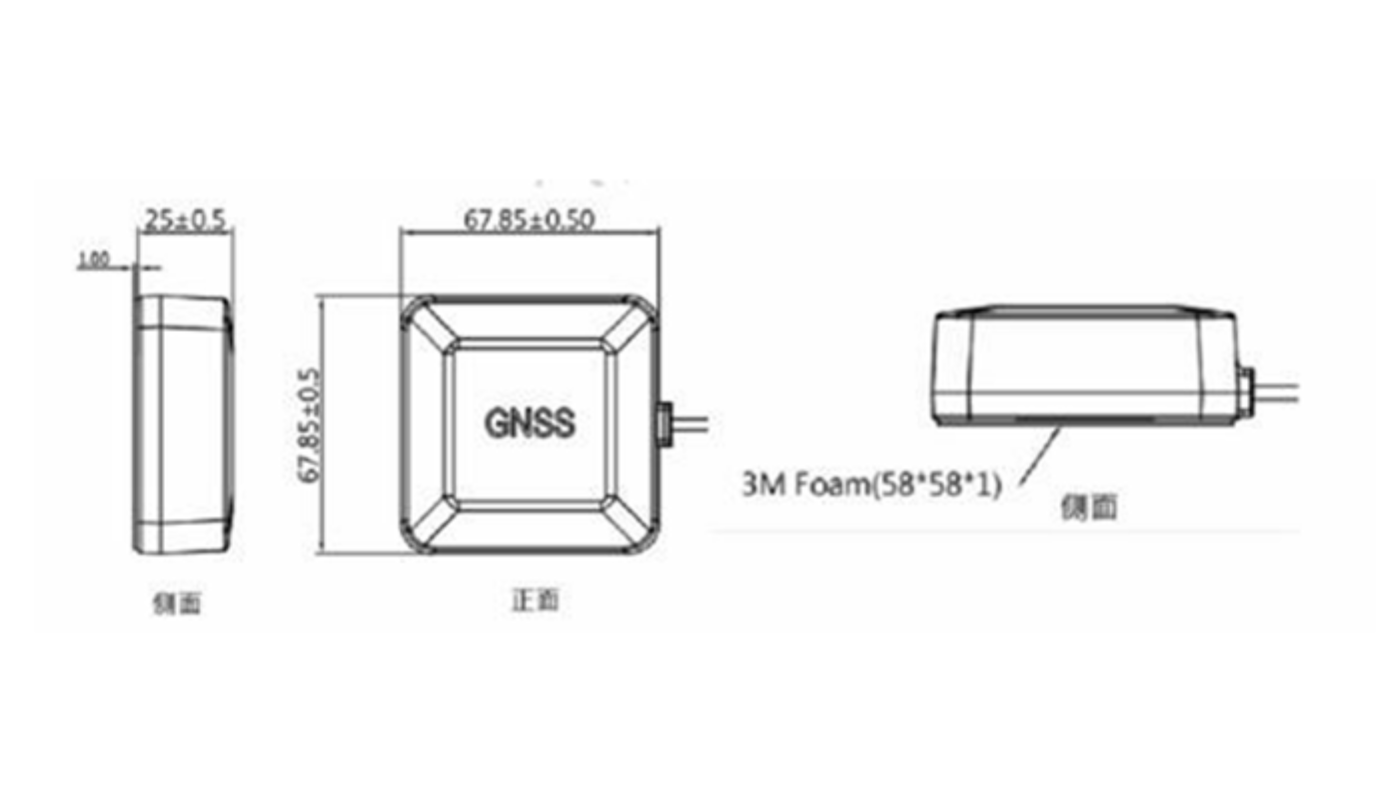

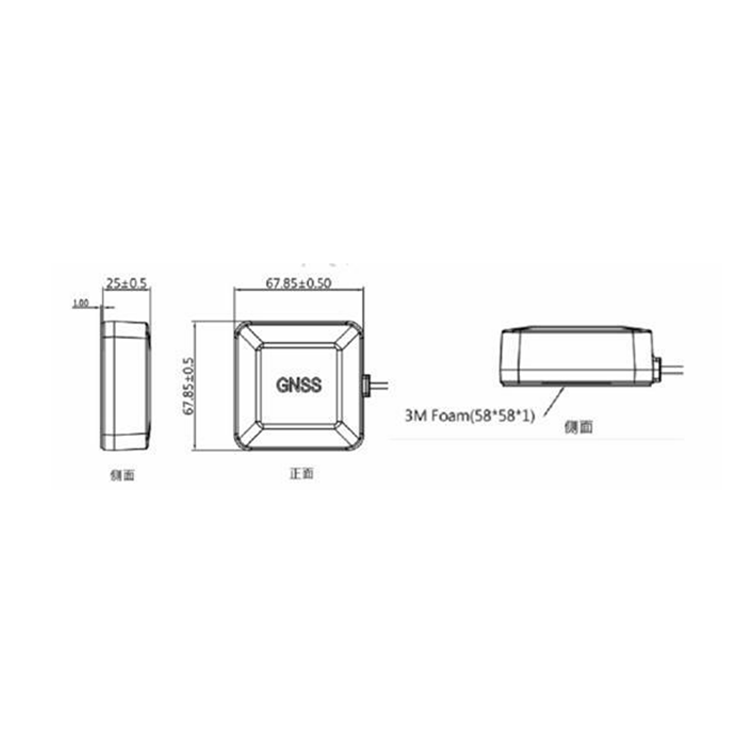

Dimension Drawing

The TX-J-82M housing measures 67.5 × 67.5 × 18.9 mm. The standard cable length is 3 m.

Please refer to the supplied product drawing for the detailed housing profile, cable outlet and installation dimensions.

Applications

Vehicle Navigation

Provides dual-band GNSS and RTK position data for vehicle-navigation and positioning systems.

Intelligent Transportation

Supports integration into intelligent transportation terminals, vehicle monitoring equipment and road-data systems.

Robotics

Provides positioning data for compatible outdoor robots and autonomous mobile platforms.

Autonomous Systems

Can be connected to compatible vehicle controllers and embedded computers requiring RTK GNSS position output.

Precision Agriculture

Suitable for agricultural guidance, machine positioning and other GNSS-based precision agriculture equipment.

System Integration

The TX-J-82M combines satellite-signal reception, RTK positioning, navigation-algorithm support and serial communication inside one IP67-protected terminal.

A typical system connection is:

GNSS Satellites → Built-in L1+L5 Antenna → TX-J-82M RTK Receiver → RS232/UART/USB Interface → Vehicle Controller or Embedded Host → Navigation System

For RTK operation, the receiver must obtain valid correction data through a compatible correction service or communication link.

A typical RTK correction path is:

Qianxun FindCM or Compatible Correction Service → Communication Link → TX-J-82M → RTK Position Output

Before installation, customers should confirm the selected interface, connector pinout, input voltage, baud rate, PPS requirement, output protocol and correction-service compatibility.

RTK accuracy depends on satellite visibility, correction-data quality, service coverage, antenna installation, multipath conditions and system configuration.
