TOXU TX-982 High Precision GPS & GNSS Differential RTK Receiver Navigation & Attitude Direction Measurement Antennas_GNSS Receivers_Positioning Chips and Modules_Products_Shenzhen Tongxun Precision Technology Co., Ltd.

TOXU TX-982 High Precision GPS & GNSS Differential RTK Receiver Navigation & Attitude Direction Measurement Antennas

Model Number:TX-982

Type:GPS/GNSS Antenna

Place of Origin:Guangdong, China

Brand Name:TOXU

channel:1408 channels

Frequency:BDS/GPS/GLONASS/Galileo/QZSSS

RTK Accuracy:Flat:0.8cm+1ppm elevation:1.5cm+1ppm

Speed measurement accuracy:≤ 0.02 m/s (PDOP ≤4)

Differential data:RTCM 3.3/3.2/3.1/3.0

Data format:Positioning and direction finding 20 Hz

Data update rate:2*RS232 Ports,Baud rates up to 460800bps.

Leave a message

Contact

Fill in your email address

Or you can continue to download without filling in

Product Description

GNSS
Channel	1408 channels
Frequency	BDS/GPS/GLONASS/Galileo/QZSSS
Main antenna frequency point	BDS:B1I,B2I,B3I,B1C,B2a,B2b GPS: L1C/A,L1C,L2P(Y),L2C,L5 GLONASS:L1,L2 Galileo:E1,E5a,E5b,E6 QZSS: L1,L2,L5,L6
Secondary antenna frequency point	BBDS: B1I,B2I,B3I GPS: L1C/A,L2P(Y),L2C,L5 GLONASS:L1,L2 Galileo: E1,E5a,E5b QZSS: L1,L2,L5 L-band
Standard single point positioning accuracy	flat:1.5m elevation:2.5m
RTK Accuracy	Flat:0.8cm+1ppm elevation:1.5cm+1ppm
Speed measurement accuracy	≤ 0.02 m/s (PDOP ≤4)
Differential data	RTCM 3.3/3.2/3.1/3.0
Data format	NMEA-0183
Data update rate	Positioning and direction finding 20 Hz 20Hz original observation measurement

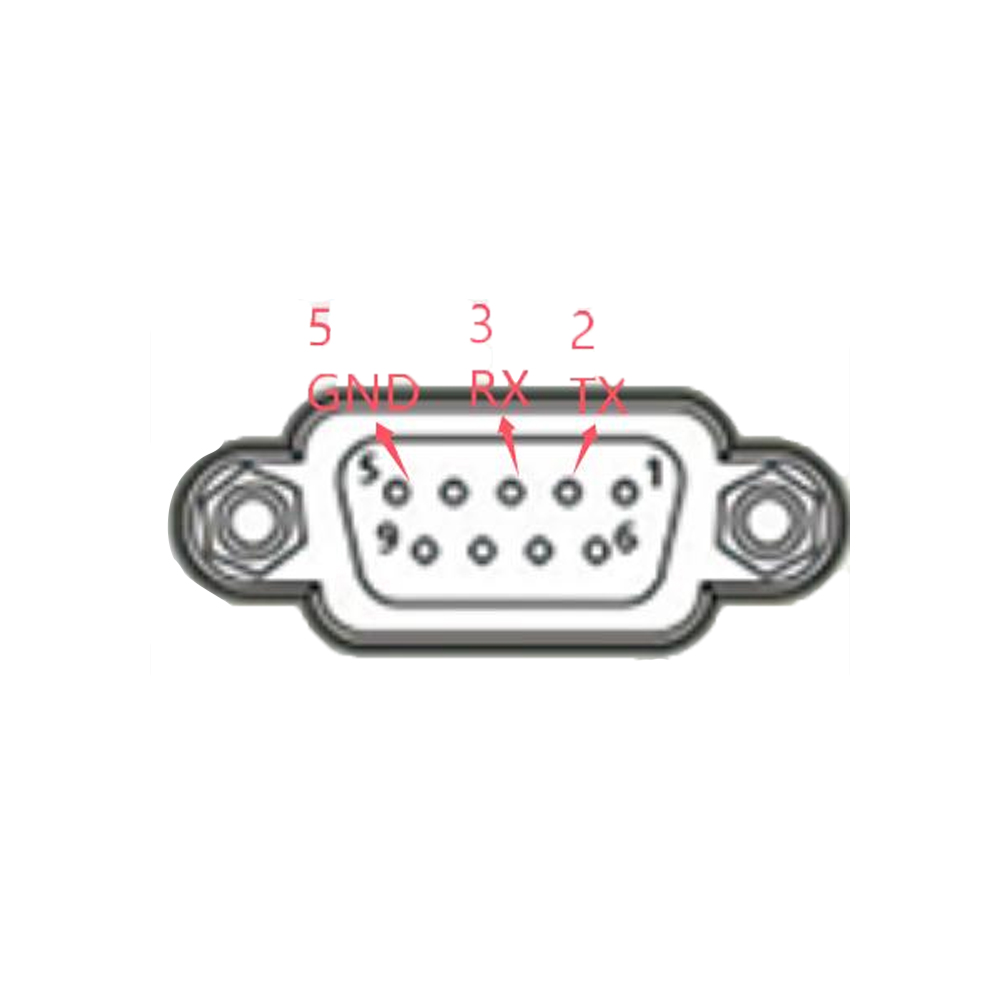

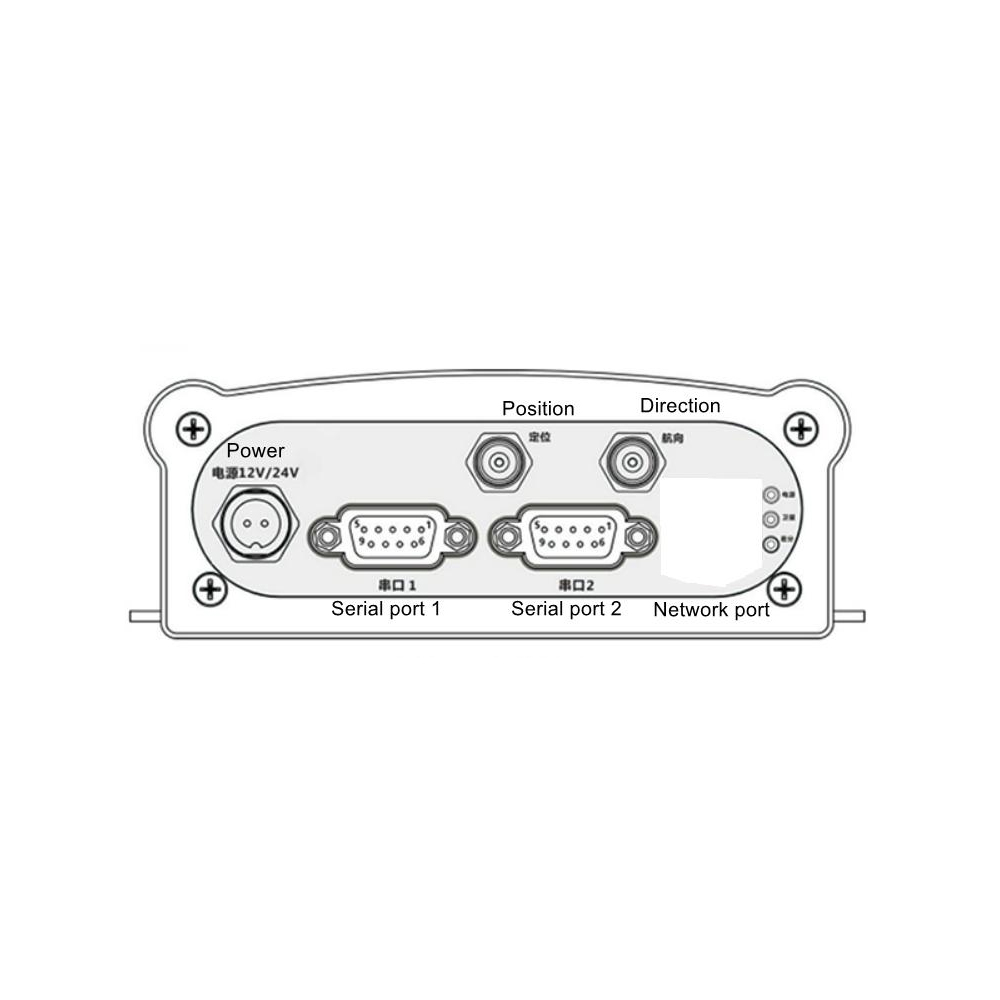

Data interface	2*RS232 Ports ,Baud rates up to 460800bps.
Physical properties

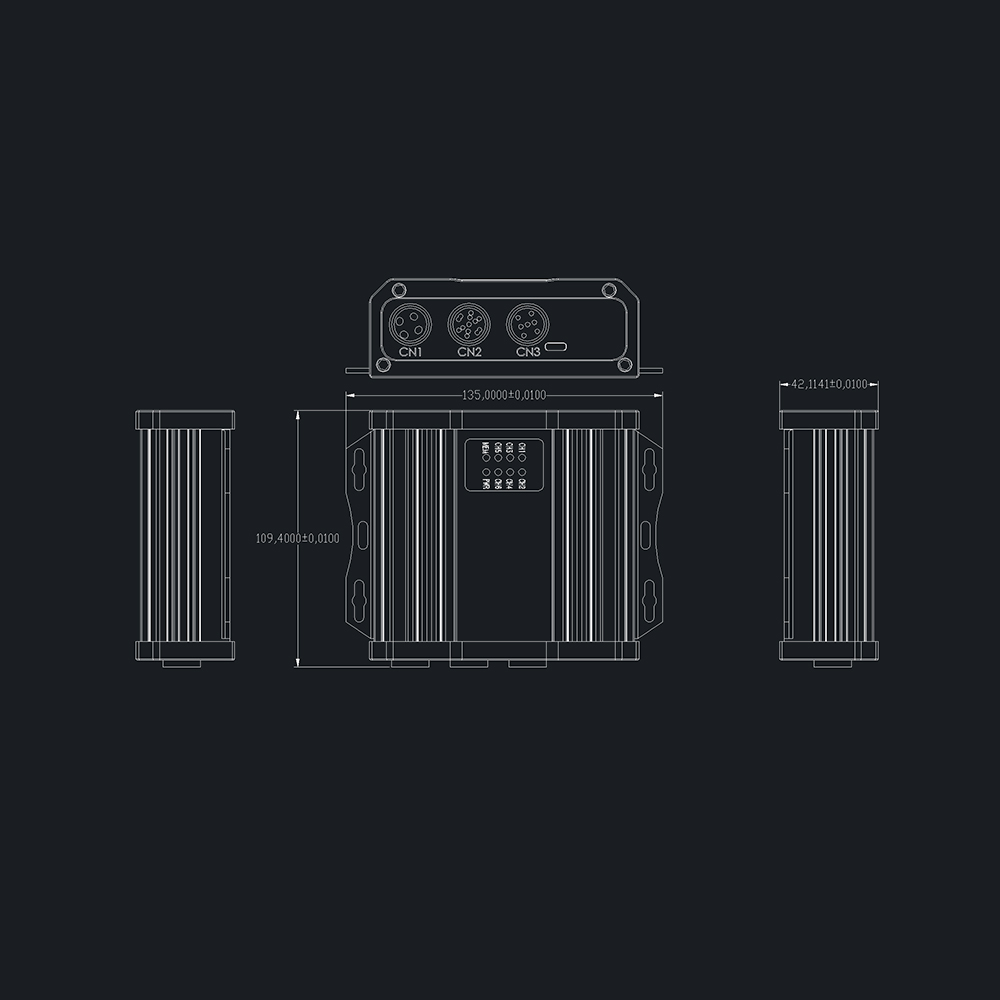

Dimension	About 10913542 mm
Weight	<500g
Waterproof	IP65
Working temperature	-30℃~+70℃
Store temperature	-40℃~+80℃
