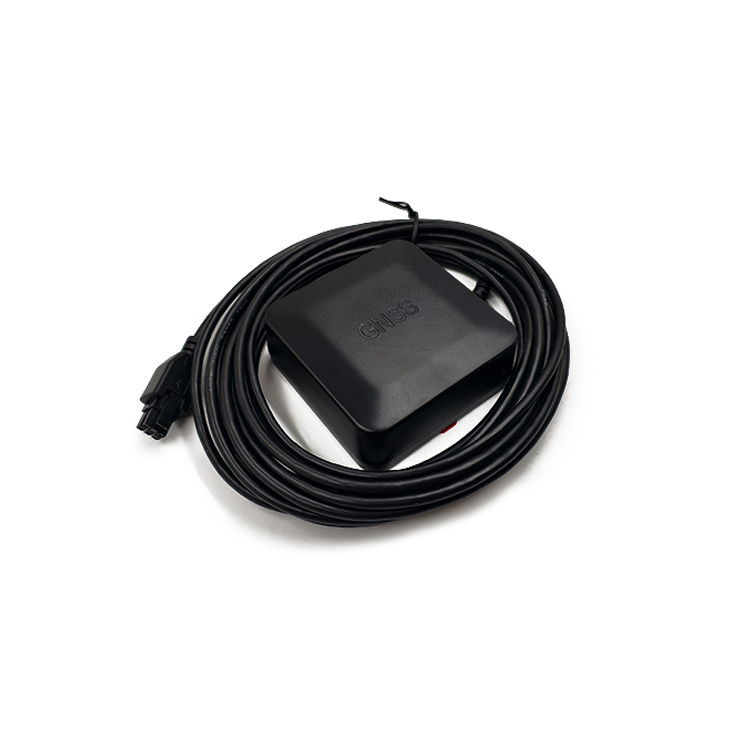

Overview

The TOXU TX-98-HF2 is an integrated GNSS receiver designed for vehicle navigation, industrial positioning and embedded GNSS integration projects.

Based on the Cynosure III GNSS engine, the receiver supports GPS, BeiDou, Galileo and GLONASS satellite navigation systems on the L1 frequency band.

The TX-98-HF2 provides a specified standalone positioning accuracy of 2.5 m CEP. When valid differential GNSS correction data and suitable operating conditions are available, it supports D-GNSS positioning accuracy of less than 1.0 m CEP.

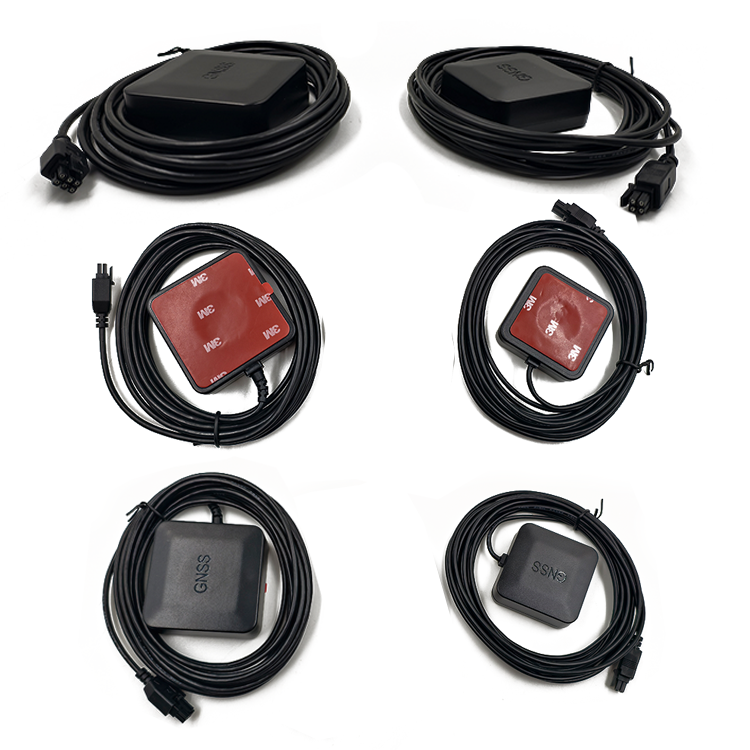

The receiver combines a GNSS engine, built-in antenna, protective housing and connection cable in one compact unit. This structure reduces the number of separate components required during installation.

NMEA 0183 data is transmitted through a standard UART interface, allowing the receiver to connect to compatible vehicle controllers, embedded computers and industrial navigation equipment.

With a navigation update rate of up to 10 Hz, a 3.3–5.5 V DC input and an operating temperature range of −40°C to +85°C, the TX-98-HF2 is suitable for a variety of navigation and positioning environments.

Key Features

Cynosure III GNSS Engine

The integrated Cynosure III engine provides L1 multi-constellation GNSS positioning for navigation and industrial positioning applications.

Four-Constellation GNSS Support

Supports GPS, BeiDou, Galileo and GLONASS satellite navigation systems for broader satellite availability.

Standalone and D-GNSS Positioning

Provides a specified standalone accuracy of 2.5 m CEP and supports D-GNSS accuracy of less than 1.0 m CEP when valid differential correction data and suitable operating conditions are available.

Built-in GNSS Antenna

The GNSS antenna is integrated into the receiver housing, simplifying installation and reducing the need for a separate external antenna and RF cable.

NMEA 0183 Data Output

Outputs standard NMEA 0183 navigation messages for integration with compatible host controllers and navigation software.

UART Communication Interface

Uses a UART interface for communication with compatible embedded controllers, vehicle systems and industrial equipment.

Up to 10 Hz Navigation Update

Supports a navigation update rate of up to 10 Hz for applications requiring more frequent positioning data.

Fast Startup Performance

Provides a typical cold-start time of less than 30 seconds and a typical hot-start time of less than 2 seconds.

Wide Supply Voltage Range

Supports a 3.3–5.5 V DC power supply for integration with different host systems.

Compact Integrated Housing

The receiver measures approximately 59.7 × 56.7 × 13.6 mm and integrates the GNSS antenna and receiver electronics in one housing.

Wide Operating Temperature Range

Designed to operate from −40°C to +85°C for vehicle and industrial positioning environments.

Technical Specifications

Dimension Drawing

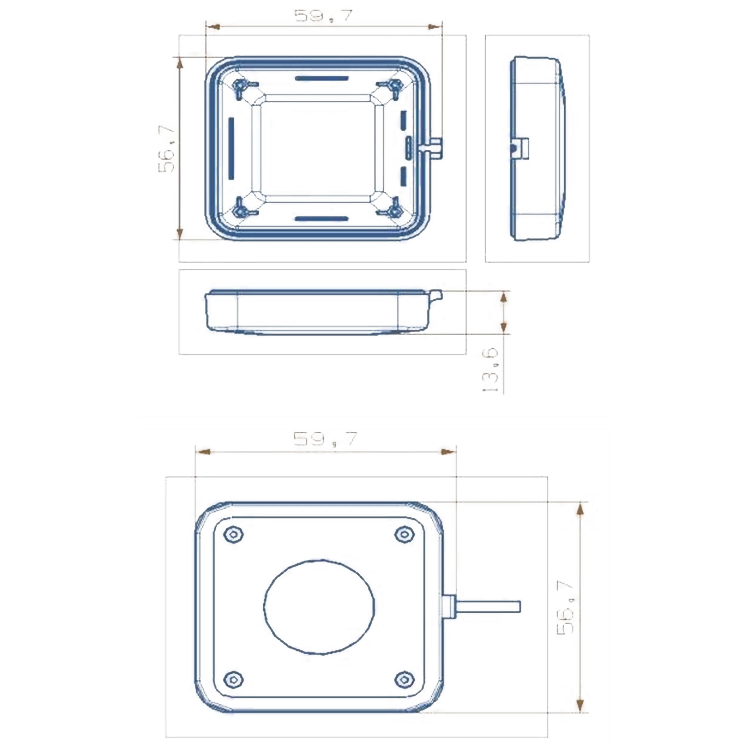

The TX-98-HF2 housing measures approximately 59.7 mm in length, 56.7 mm in width and 13.6 mm in thickness.

Please refer to the product dimension drawing for the detailed housing profile and installation dimensions.

Applications

Vehicle Navigation

Provides GNSS position data for compatible vehicle navigation units, tracking systems and onboard controllers.

Fleet and Asset Tracking

Can be integrated into compatible telematics and tracking equipment requiring UART GNSS data.

Industrial Positioning

Suitable for industrial controllers and positioning terminals requiring an integrated L1 GNSS receiver.

Embedded Navigation Systems

Supports integration with embedded computers and host controllers through UART and NMEA 0183 communication.

GNSS System Integration

Can be used as an installation-ready positioning component in customized navigation and location-based hardware.

System Integration

The TX-98-HF2 integrates the GNSS antenna and receiver electronics into one compact housing. It receives satellite signals, calculates position data and outputs NMEA 0183 messages through the UART interface.

A typical system connection is:

GNSS Satellites → Built-in GNSS Antenna → Cynosure III Receiver → UART Output → Vehicle Controller or Embedded Host → Navigation Application

The receiver requires a 3.3–5.5 V DC power supply. Before connection, customers should confirm the power input, UART voltage level, baud-rate configuration, output-message requirements and connector definition of the host equipment.

The standard cable and connector configuration should be confirmed when placing an order. TOXU can evaluate cable-length and connector customization according to the customer’s equipment interface.

Complete GNSS Solution Support

GNSS Antenna Matching

TOXU provides ceramic antennas, patch antennas, active GNSS antennas and RTK antennas for different frequency, installation and positioning requirements.

RF Cable Assembly

TOXU provides customized RF cable assemblies with SMA, MMCX, MCX, FAKRA and other connector options.

Connector Solution

TOXU supports connector selection and customized interconnection solutions according to the receiver and host-equipment interfaces.

GNSS Board Development

TOXU can integrate GNSS modules into customized receiver boards according to customer interface, power-supply and mechanical requirements.

Hardware Customization

TOXU supports PCB design, prototype development, cable customization, product assembly and mass production for customized GNSS positioning products.

Why Choose TOXU

Integrated GNSS Hardware Capability

TOXU provides GNSS receivers, positioning modules, antennas, RF cable assemblies and connectors for complete navigation hardware integration.

Customized Cable and Connector Support

Cable length and connector configuration can be evaluated according to the customer’s controller and equipment interface.

OEM and ODM Development

TOXU supports housing, labeling, packaging, interface and hardware customization for OEM positioning projects.

Prototype-to-Production Service

Our team supports product evaluation, sample development, component sourcing, assembly and mass production.

Quality Management

TOXU operates under IATF 16949 and ISO 9001 quality-management systems to support consistent production and quality control.

FAQ – Frequently Asked Questions

Q: Is the TX-98-HF2 only a GNSS antenna?

No. It is an integrated GNSS receiver containing the Cynosure III GNSS engine and a built-in antenna. It calculates position data and outputs NMEA 0183 messages through UART.

Q: Which satellite systems does it support?

The receiver supports GPS, BeiDou, Galileo and GLONASS satellite navigation systems on the L1 frequency band.

Q: What positioning accuracy does it provide?

The specified standalone positioning accuracy is 2.5 m CEP. With valid differential correction data and suitable operating conditions, D-GNSS accuracy is specified as less than 1.0 m CEP.

Q: Does the TX-98-HF2 support RTK positioning?

No RTK capability is specified for this model. D-GNSS accuracy should not be described as centimeter-level RTK positioning.

Q: Does the receiver include a GNSS antenna?

Yes. The GNSS antenna is built into the receiver housing, so a separate external antenna is not required for the standard configuration.

Q: What data format and interface does it use?

The receiver outputs NMEA 0183 navigation data through a UART communication interface.

Q: What is the maximum navigation update rate?

The specified navigation update rate is up to 10 Hz.

Q: Can the cable length and connector be customized?

Yes. TOXU can evaluate customized cable lengths and connector configurations according to the customer’s equipment interface and order requirements.

Q: Can TOXU provide customized GNSS solutions?

Yes. TOXU provides complete GNSS hardware integration services, including customized receiver boards, GNSS antennas, RF cable assemblies, connectors and PCB hardware development.

Q: Can the GNSS module be integrated into a customized board?

Yes. TOXU can integrate GNSS modules into customized PCB boards and provide prototype development and mass-production support.

Q: Can TOXU provide antenna and cable solutions?

Yes. TOXU provides matched GNSS antennas, RF cables and connectors to complete the positioning system solution.
