Overview

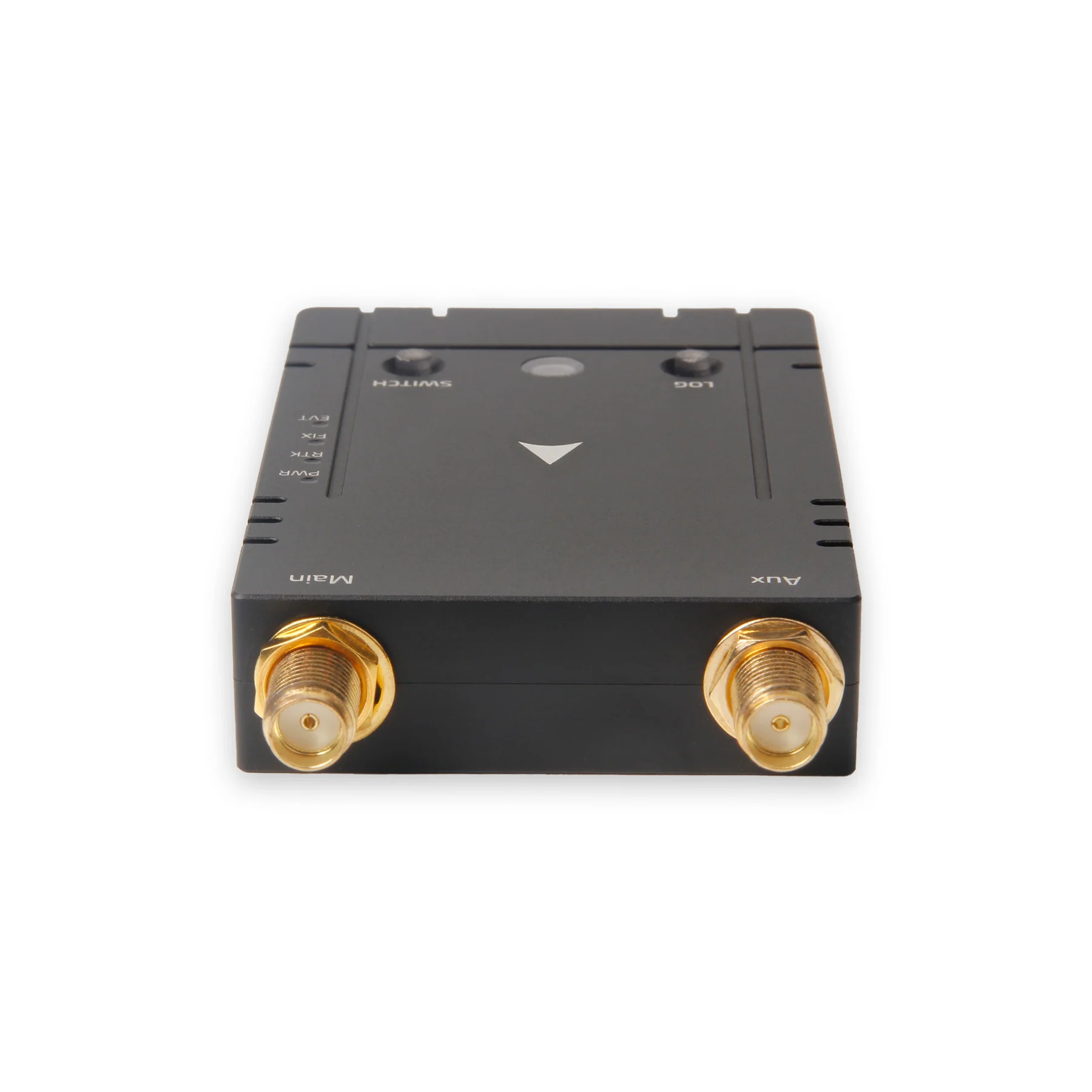

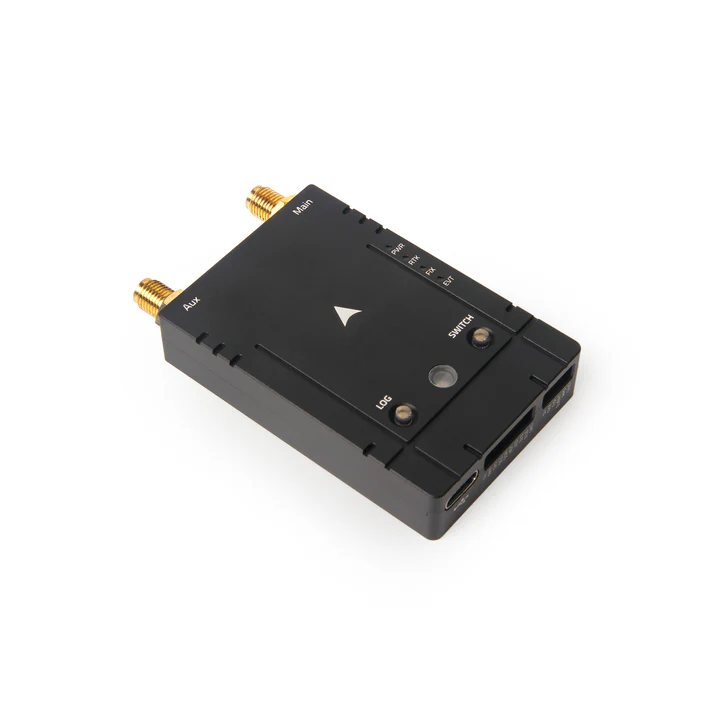

The TOXU KS.WX0043 is a dual-antenna RTK GNSS receiver designed for professional positioning and heading-output applications in UAVs, robotics, autonomous vehicles and other precision navigation systems.

The receiver is built around the Septentrio mosaic-H multi-frequency GNSS module and is designed for projects evaluating compatibility with Holybro H-RTK mosaic-H system configurations.

With two GNSS antenna inputs, the KS.WX0043 uses moving-baseline carrier-phase measurements to calculate heading directly from satellite signals. This provides a reliable heading source without depending exclusively on a conventional magnetic compass.

GNSS-based heading helps reduce heading errors caused by vehicle motors, electrical systems, metal structures, power cables and other sources of magnetic interference.

The Septentrio mosaic-H platform supports GPS, BeiDou, GLONASS, Galileo, QZSS and SBAS signals across multiple frequency bands. It combines centimeter-level RTK positioning with sub-degree heading and attitude measurement.

The KS.WX0043 supports USB and UART communication for integration with compatible flight controllers, embedded computers and robotic control systems. The standard receiver operates from a 5 V DC power supply.

TOXU provides flexible receiver, antenna, RF cable, signal cable and accessory configurations, allowing customers to select the hardware required for their application and improve overall project cost control.

Key Features

Septentrio mosaic-H GNSS Module

The KS.WX0043 integrates the Septentrio mosaic-H module, combining multi-frequency RTK positioning and dual-antenna heading capability in one receiver.

Dual-Antenna Moving-Baseline Heading

Two GNSS antennas form a moving baseline that allows the receiver to calculate heading and attitude from GNSS carrier-phase measurements.

Heading Without Magnetic Compass Dependence

Moving-baseline GNSS heading provides an alternative heading source in applications where magnetic sensors may be affected by motors, power systems and nearby metal structures.

Centimeter-Level RTK Positioning

Supports horizontal RTK accuracy of 0.6 cm + 0.5 ppm and vertical RTK accuracy of 1 cm + 1 ppm under suitable satellite, correction-data and installation conditions.

Sub-Degree Heading Accuracy

Supports heading accuracy of 0.15° with a 1 m antenna baseline and 0.03° with a 5 m antenna baseline under specified operating conditions.

Multi-Frequency GNSS Reception

Supports GPS L1/L2, GLONASS L1/L2, Galileo E1/E5b, BeiDou B1/B2/B3 and QZSS L1/L2 signals.

Multi-Constellation Satellite Tracking

Supports GPS, BeiDou, GLONASS, Galileo, QZSS and compatible SBAS augmentation systems.

AIM+ Interference Monitoring and Mitigation

Septentrio AIM+ technology monitors the RF environment and helps identify and mitigate narrowband and wideband interference, jamming and spoofing signals.

LOCK+ Robust Satellite Tracking

LOCK+ supports stable satellite tracking during vibration, shock and rapid antenna movement in high-dynamic UAV and robotic applications.

APME+ Multipath Mitigation

APME+ helps reduce positioning errors caused by GNSS signals reflected from nearby buildings, vehicles and metal structures.

IONO+ Ionospheric Protection

IONO+ helps maintain GNSS and RTK performance in regions affected by increased ionospheric activity.

RAIM+ Integrity Monitoring

RAIM+ monitors GNSS observations and positioning consistency to help identify and exclude unreliable measurements.

High-Rate RTK and Attitude Output

Supports RTK position and attitude output rates of up to 20 Hz, standalone and differential positioning with attitude up to 50 Hz, and measurement output up to 100 Hz.

Multiple Operating Modes

Supports rover, moving-baseline rover, base-station and PPK application configurations.

USB and UART Communication

Provides USB and UART interfaces for receiver configuration, correction-data input and navigation-data output.

Holybro H-RTK System Compatibility

Designed for compatibility evaluation in relevant Holybro H-RTK mosaic-H applications. Interface, firmware, connector and mechanical compatibility should be confirmed before replacement testing.

Technical Specifications

Applications

UAV Navigation and Heading

Provides centimeter-level RTK position and GNSS-based heading for compatible multirotor, fixed-wing and other unmanned aerial platforms.

Robotics

Supports precise outdoor positioning and orientation for autonomous robots and unmanned ground vehicles.

Autonomous Vehicles

Provides position and heading information without relying exclusively on measurements from a magnetic compass.

Precision Agriculture

Suitable for agricultural guidance, machine control and autonomous field-operation equipment.

Marine and Unmanned Surface Vehicles

Dual-antenna GNSS heading can support compatible marine and unmanned surface platforms requiring position and orientation data.

Surveying and Mapping

Supports RTK rover, base-station and PPK configurations for customized surveying and mapping equipment.

Industrial Precision Navigation

Can be integrated into industrial platforms requiring high-rate RTK position, velocity and attitude information.

System Integration

The KS.WX0043 uses two external GNSS antennas to provide RTK position and moving-baseline heading information.

A typical dual-antenna system connection is:

Primary GNSS Antenna + Secondary GNSS Antenna → KS.WX0043 Septentrio mosaic-H Receiver → USB/UART → Flight Controller or Embedded Computer → Navigation System

The two antennas must be securely installed with a known baseline distance and orientation. Heading accuracy depends on antenna separation, antenna alignment, satellite visibility, multipath conditions and receiver configuration.

For RTK operation, correction data must be supplied through a compatible base station, NTRIP service or communication link.

A typical RTK correction-data path is:

RTK Base Station or NTRIP Service → Data Link → KS.WX0043 → RTK Position and Heading Output

Compatibility with PX4, ArduPilot or another host platform should be confirmed according to the selected interface, connector pinout, firmware version and communication protocol.

For projects currently using a Holybro H-RTK mosaic-H configuration, TOXU recommends verifying the interface definition, firmware settings, antenna baseline, mounting dimensions and cable configuration before replacement testing.

Complete GNSS Solution Support

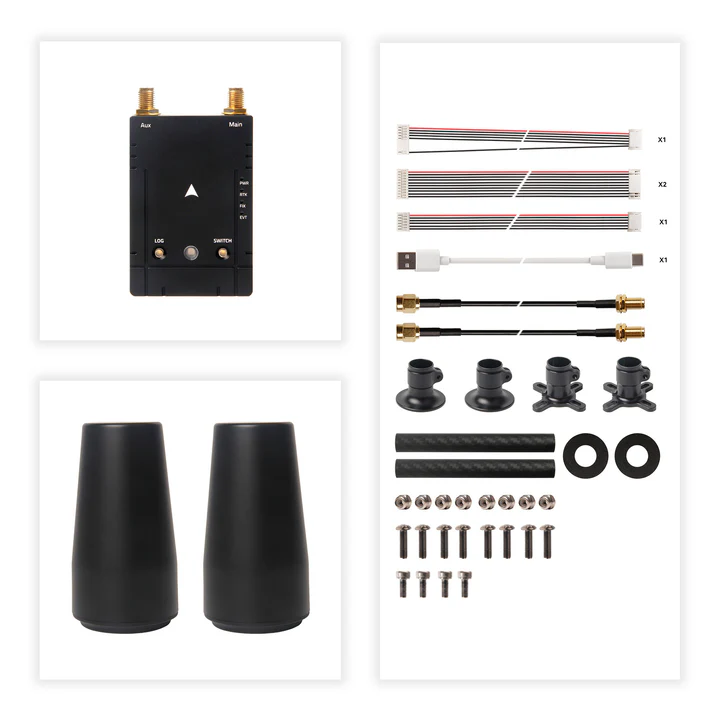

Dual GNSS Antenna Matching

TOXU provides matched multi-frequency GNSS antennas for primary and secondary antenna installation in moving-baseline heading systems.

RF Cable Assembly

TOXU provides customized RF cable assemblies with different cable types, lengths and connector configurations.

Connector Solution

TOXU supports RF and signal connector selection according to the receiver, antenna, flight controller and equipment structure.

GNSS Board Development

TOXU can integrate Septentrio GNSS modules into customized receiver boards with project-specific interfaces and mechanical structures.

Flight-Controller Interconnection

TOXU can provide customized signal cables and connector configurations for compatible flight controllers and embedded host systems.

Hardware Customization

TOXU supports PCB design, prototype development, housing customization, cable assembly, system integration and mass production.

Why Choose TOXU

Septentrio mosaic-H Platform

The KS.WX0043 uses the professional Septentrio mosaic-H platform to provide multi-frequency RTK positioning and dual-antenna GNSS heading.

Holybro H-RTK Compatibility Evaluation

The receiver is designed for customers evaluating a Septentrio mosaic-H solution for existing or planned Holybro H-RTK system configurations.

Better Project Cost Control

TOXU offers flexible receiver, antenna, RF cable, signal cable and accessory configurations, helping customers select only the hardware required for their application.

Complete Dual-Antenna Solution

TOXU can provide the receiver, matched GNSS antennas, RF cables, connectors and integration support required for a complete heading system.

OEM and ODM Customization

Customization can be evaluated for receiver interfaces, PCB layout, housing, cables, connectors, labeling and packaging.

Prototype-to-Production Support

TOXU supports prototype verification, component sourcing, PCB assembly, system integration and mass-production delivery.

Quality Management

TOXU operates under IATF 16949 and ISO 9001 quality-management systems to support consistent manufacturing and quality control.

FAQ – Frequently Asked Questions

Q: Is the KS.WX0043 compatible with the Holybro H-RTK mosaic-H?

The KS.WX0043 is based on the same Septentrio mosaic-H GNSS platform and is designed for compatibility evaluation in relevant Holybro H-RTK mosaic-H applications. Connector pinout, firmware, interface settings, antenna configuration and mounting dimensions should be confirmed before replacement testing.

Q: Which GNSS module is used inside the receiver?

The receiver integrates the Septentrio mosaic-H multi-frequency GNSS module.

Q: Why does the receiver require two GNSS antennas?

The two antennas form a moving baseline. Carrier-phase measurements from both antennas allow the receiver to calculate heading and attitude.

Q: Does it require a magnetic compass for heading?

No magnetic compass is required for the mosaic-H moving-baseline heading calculation. The host navigation system may still use other sensors according to its system architecture.

Q: What heading accuracy does it support?

The specified heading accuracy is 0.15° with a 1 m antenna baseline and 0.03° with a 5 m antenna baseline under suitable operating conditions.

Q: What RTK accuracy does it support?

The mosaic-H platform supports horizontal RTK accuracy of 0.6 cm + 0.5 ppm and vertical RTK accuracy of 1 cm + 1 ppm under suitable correction-data and operating conditions.

Q: Does it support anti-jamming and anti-spoofing functions?

The Septentrio mosaic-H module includes AIM+ interference monitoring and mitigation technology. Actual performance depends on the interference environment, antenna installation and receiver configuration.

Q: Can it be used as both a base station and rover?

Yes. The mosaic-H platform supports base-station, rover, moving-baseline rover and PPK application configurations.

Q: Is it compatible with PX4 and ArduPilot?

The KS.WX0043 is intended for integration with compatible UAV and robotic control platforms. The interface, firmware version, protocol and configuration must be confirmed before installation.

Q: Are two GNSS antennas included?

The receiver requires two compatible multi-frequency GNSS antennas. Package contents should be confirmed according to the selected order configuration.

Q: Why choose the TOXU KS.WX0043 for a mosaic-H project?

The KS.WX0043 combines the Septentrio mosaic-H platform with flexible antenna, cable, connector and accessory options, helping customers achieve better overall project cost control.

Q: Can TOXU customize the receiver and cables?

Yes. TOXU can evaluate customized interfaces, housings, RF cable lengths, signal cables, connectors, labels and packaging.

Q: Can TOXU provide a complete dual-antenna GNSS solution?

Yes. TOXU provides the receiver, matched GNSS antennas, RF cables, connectors and hardware-integration support required for complete positioning and heading systems.
