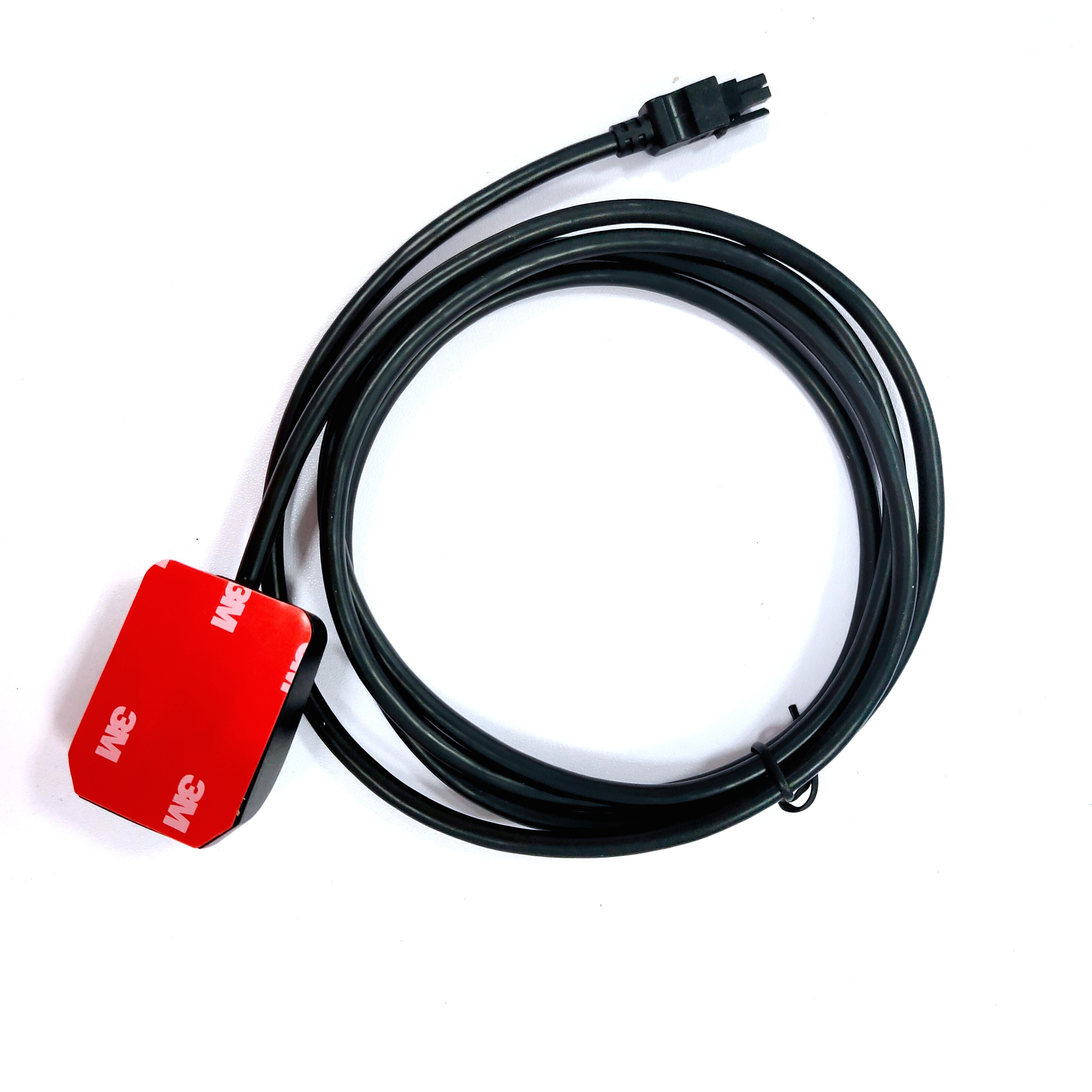

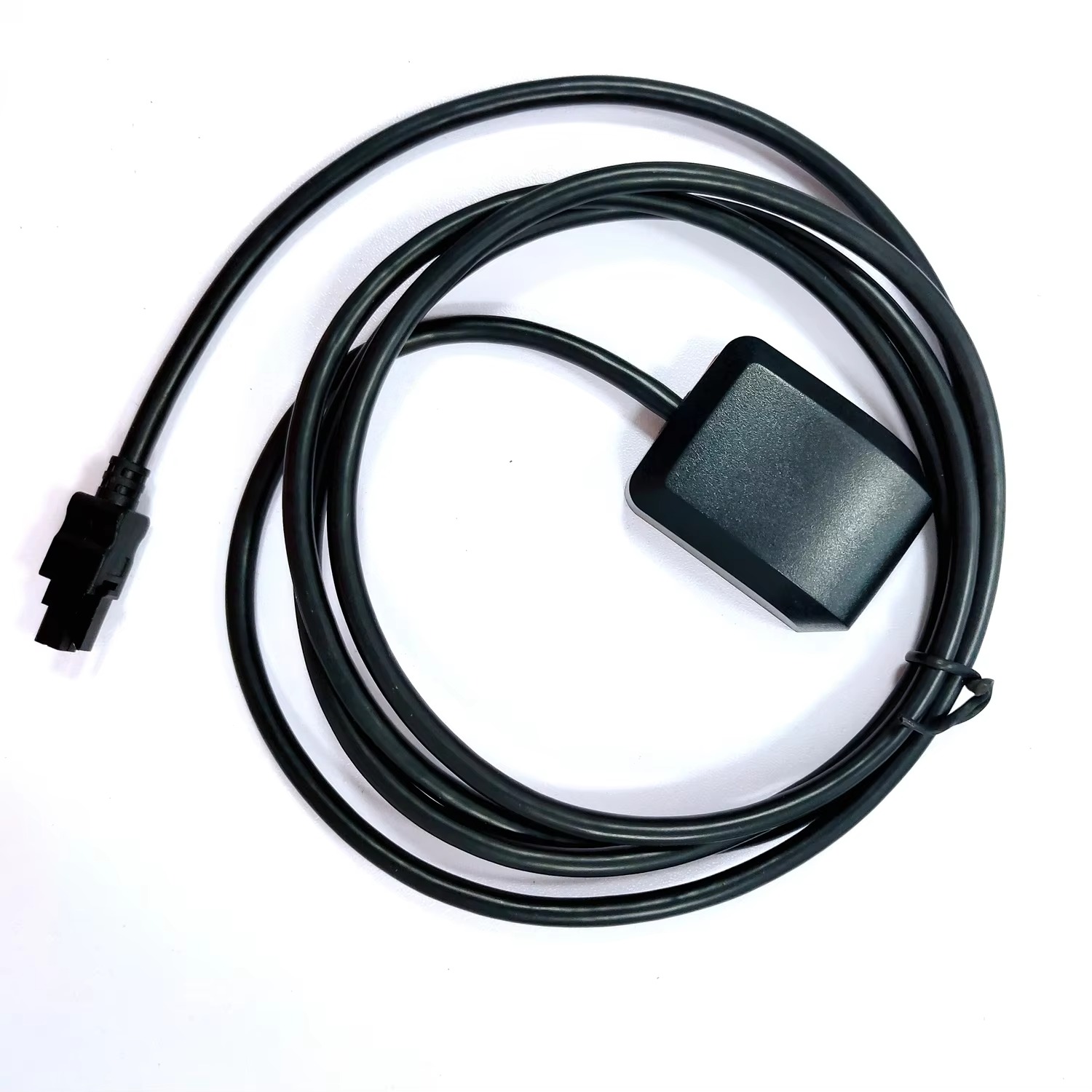

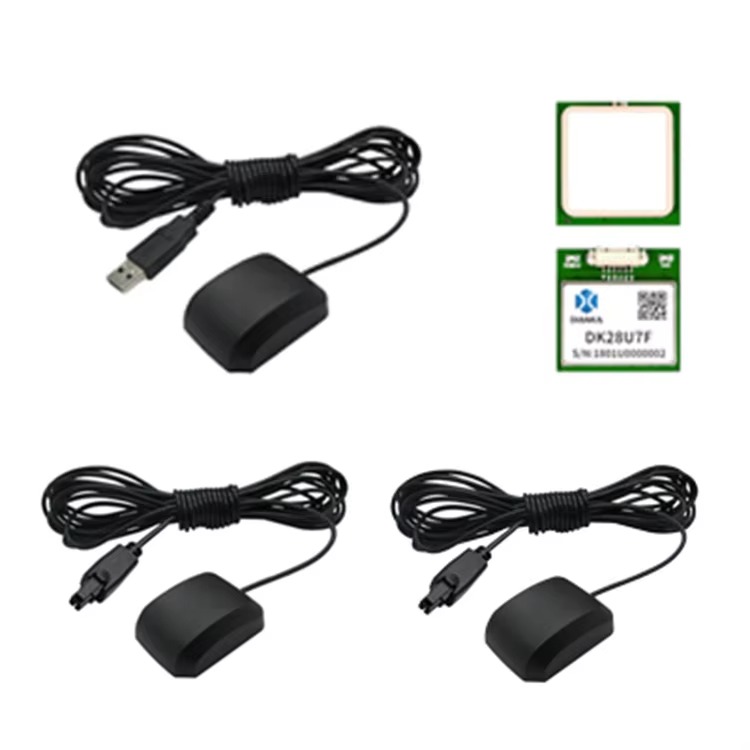

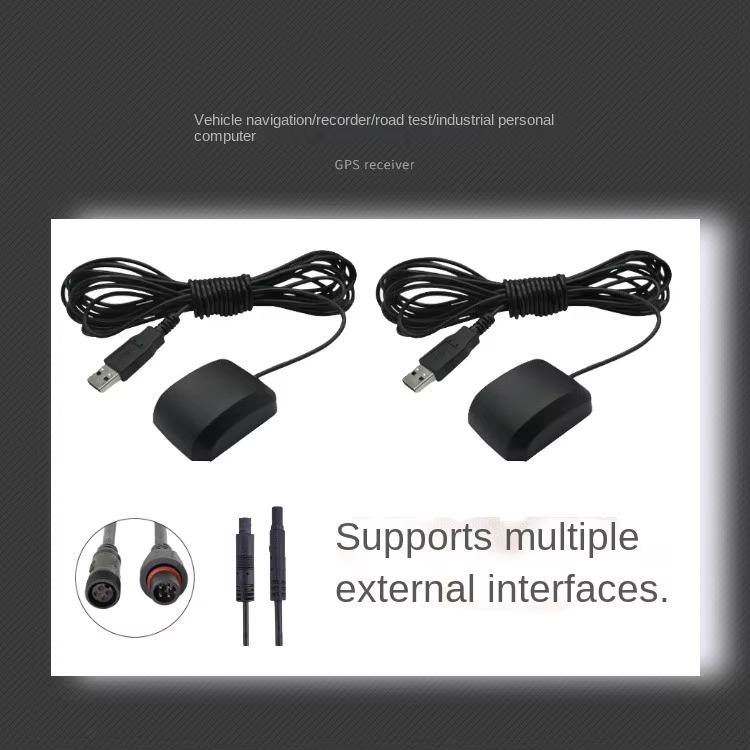

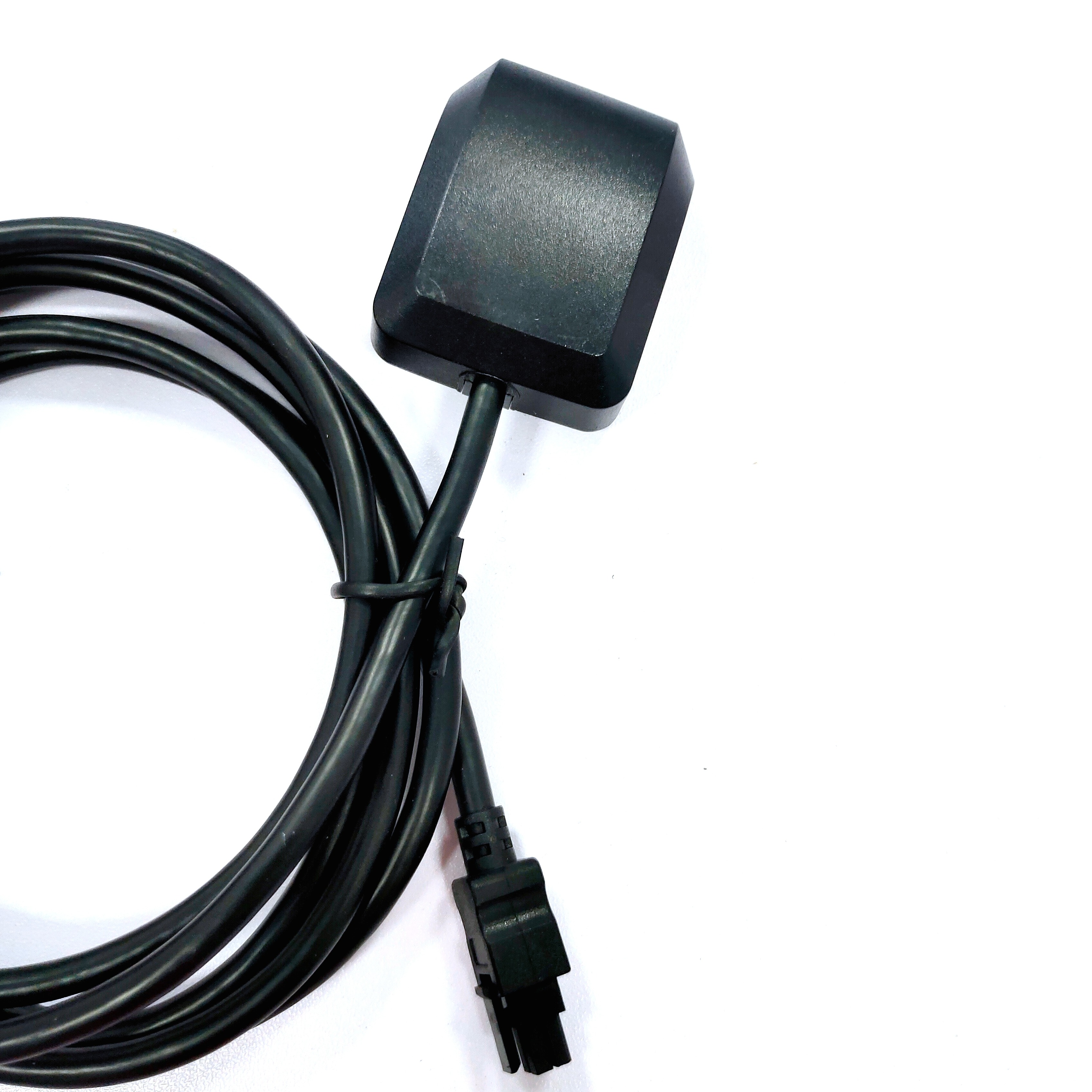

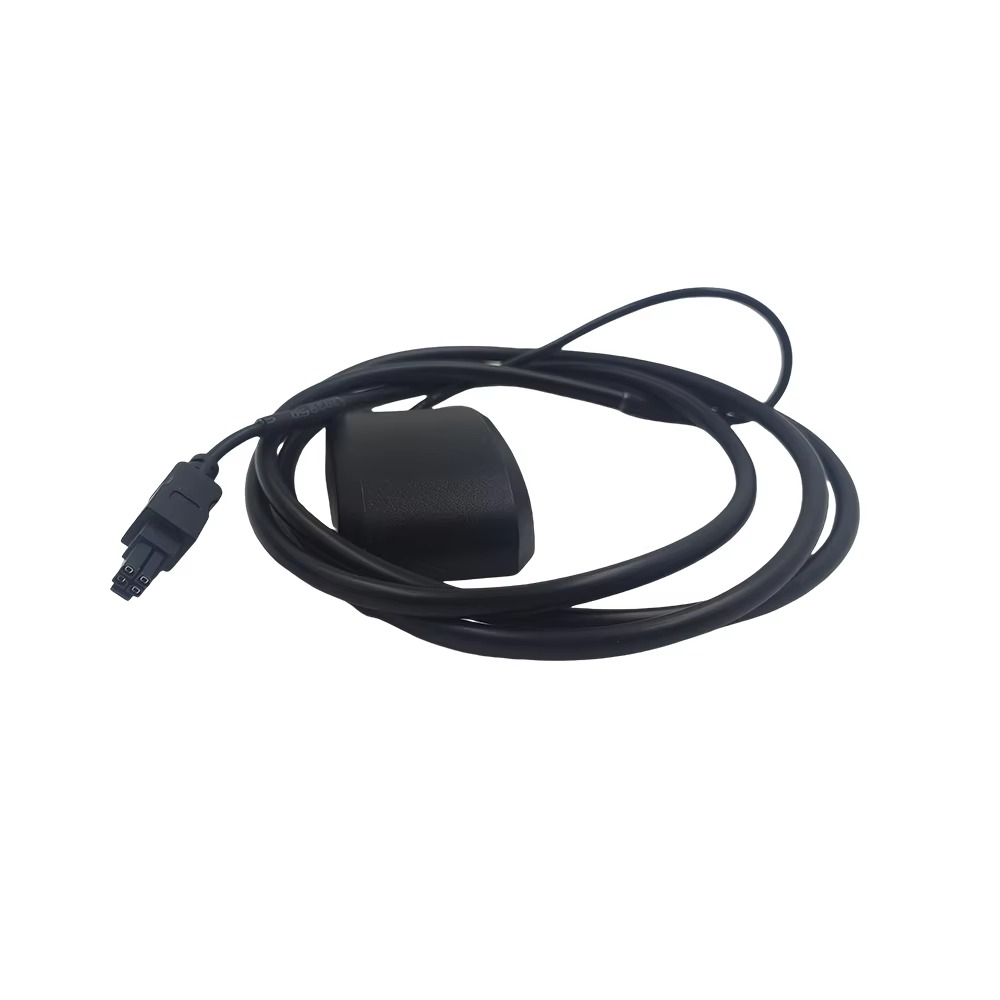

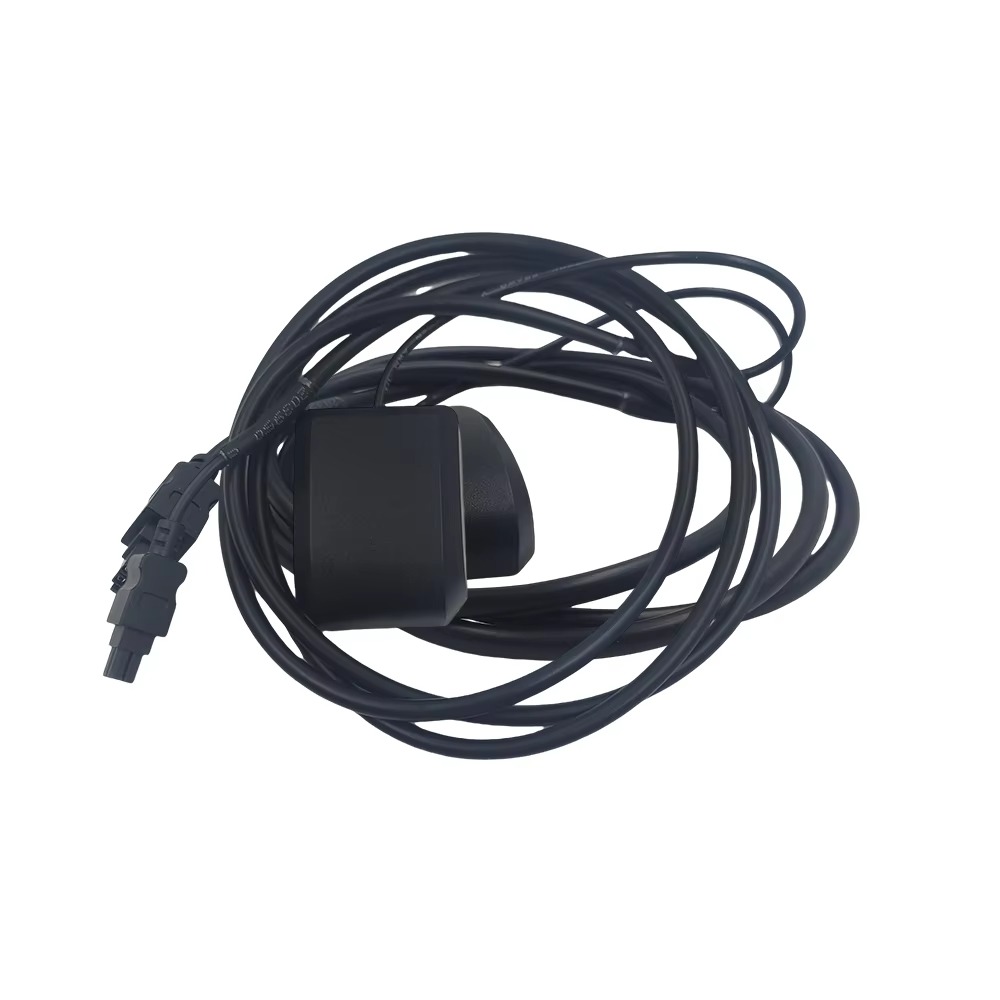

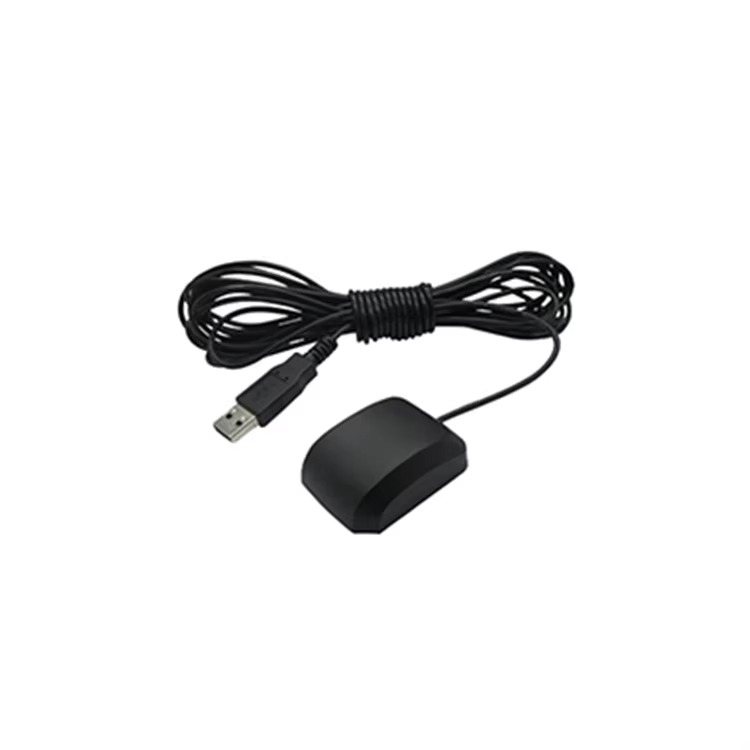

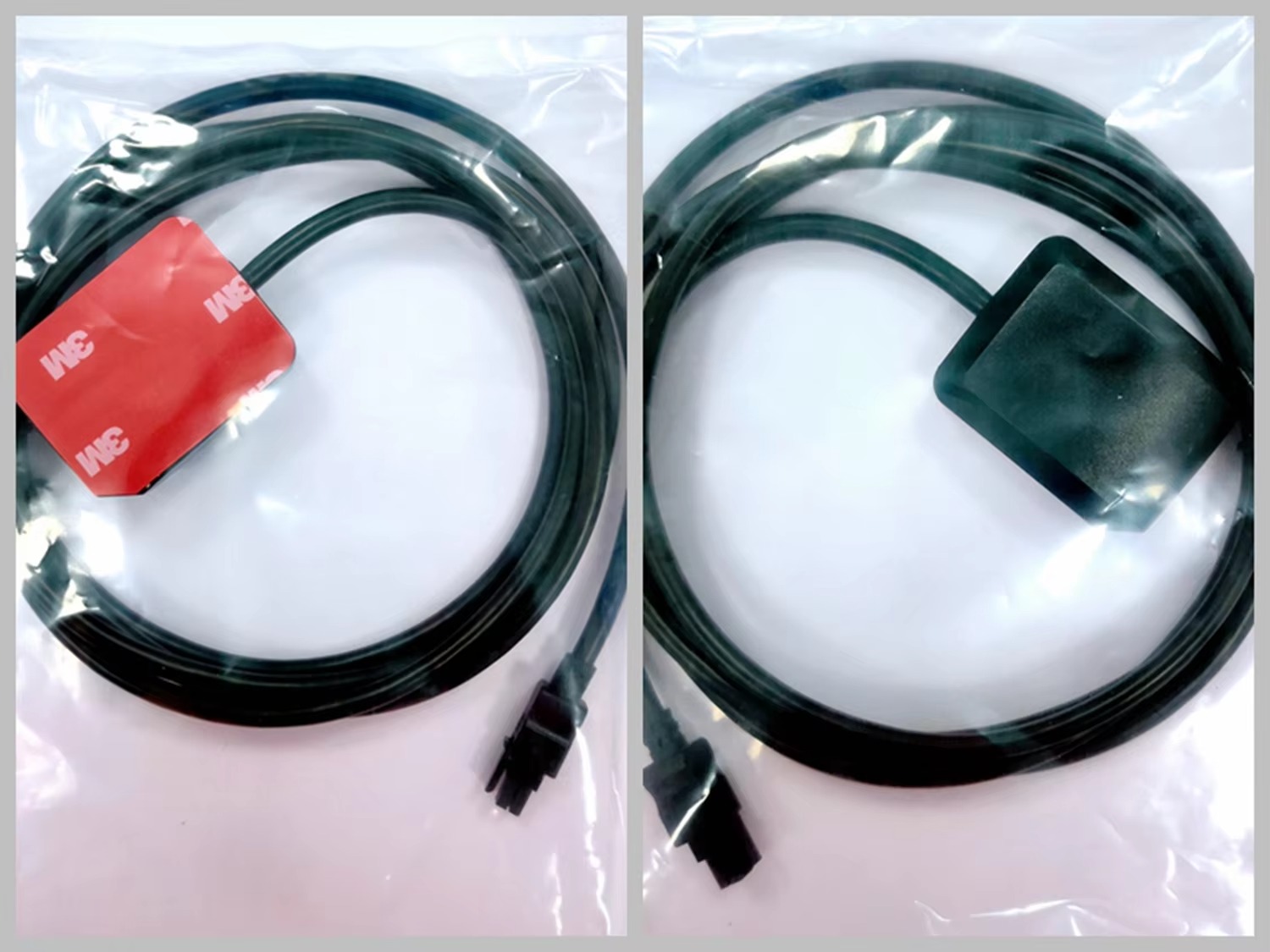

OEM ODM High Precision Agriculture GPS Receiver Glonass BDS G-Mouse With Gnss Rtk Car Antenna

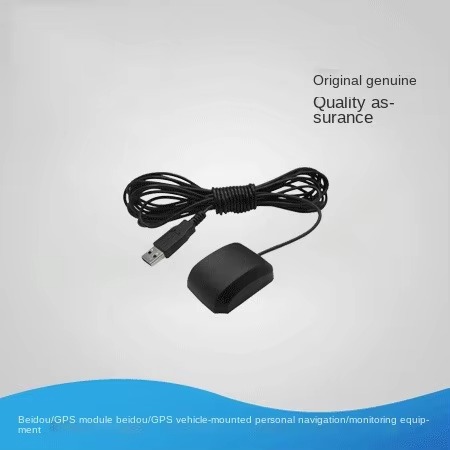

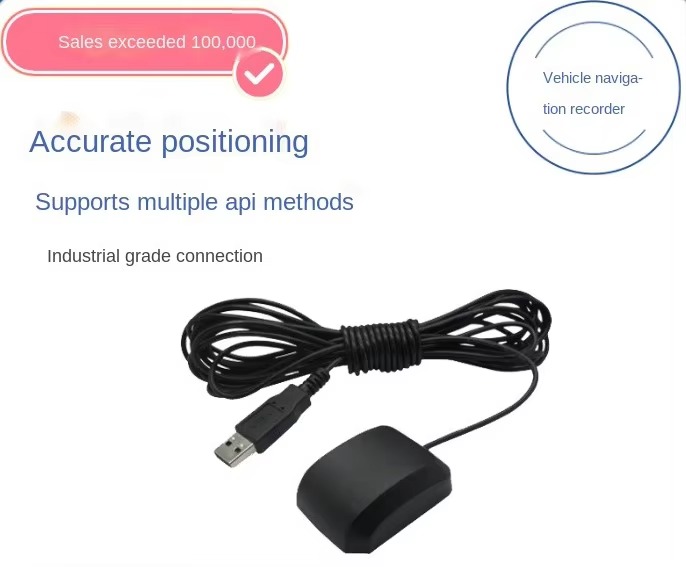

Ublox GPS chip is used in the module, which is capable of receiving satellite signals in 56 channels; has low power consumption; and is a highly sensitive G-MOUSE, that is capable of locating weak signals in cities, canyons, under viaducts, and anywhere inside the car fast and accurately, enabling the wide application of the module in various products such as on-board monitoring, bus stop announcement, on-board navigation, shipborne navigation, laptop navigation products.

Leave a message

Contact

Product Description

Product features: 1.Product master chip: UBX-G7020-KT 2.Product dimensions: 38 x 49 x 16 mm USB cable length: 2 m 3.Built-in LNA signal amplifier 4.Built-in Flash, free to configure product parameters 5.Industry standard of 25 x 25 x 4mm high sensitivity ceramic antenna 6.Built-in TCXO crystal and supercapacitor for faster hot start 7.1-10Hz Location Update Rate

Product description: Ublox GPS chip is used in the module, which is capable of receiving satellite signals in 56 channels; has low power consumption; and is a highly sensitive G-MOUSE, that is capable of locating weak signals in cities, canyons, under viaducts, and anywhere inside the car fast and accurately, enabling the wide application of the module in various products such as on-board monitoring, bus stop announcement, on-board navigation, shipborne navigation, laptop navigation products.

Product performance
Chip	UBX-G7020-KT
Frequency	L1, 1575.42MHz/L2, 1561.10MHZ/L3, 1602.00MHZ
Baud rate	4800, 9600, 19200, 38400, 57600, 115200bps
reception channel	56 CH
Sensitivity	Track:-162dBm Capture:-160dBm Cold start-148dBm
Cold start	An average of 29 S
Warm start	An average of 3 S
Hot start	An average of 1 S
Accuracy	Horizontal position accuracy < 2.5M SBAS < 2.0M Timing accuracy: 30 ns
Maximum height	50000 M
Maximum	500 m/s
Maximum Acceleration	4G
Update frequency	1-10 Hz
Physical characteristics
Overall dimension	38 x 49 x 16 mm USB cable length: 2 m
Working conditions
Working temperature	-40℃ to 85℃
Storage temperature	-40℃ to 85℃
